3.10 Control lever (H controls) (overview)
Danger!
Unintentional operation of control lever fig. 59/5/20 during machine travel on
public roads
Accident hazard!
☞ Lock the operating hydraulics with switch 46
Notice!
Fast actuation of the control lever for the attachment moves the attachment fast.
Slow actuation of the control lever moves the attachment slowly.
Locking the operating hydraulics (option)
Switch 46 is installed if the machine is equipped with the StVO Austrian road traffic
regulations option.
Actuating switch 46 locks the entire operating hydraulics.
Only machine travel can be performed.
Control lever (H controls)
Notice!
Always perform smooth control movements.
The floating position is beneficial when working with a rotary broom, snow plows, etc.
46

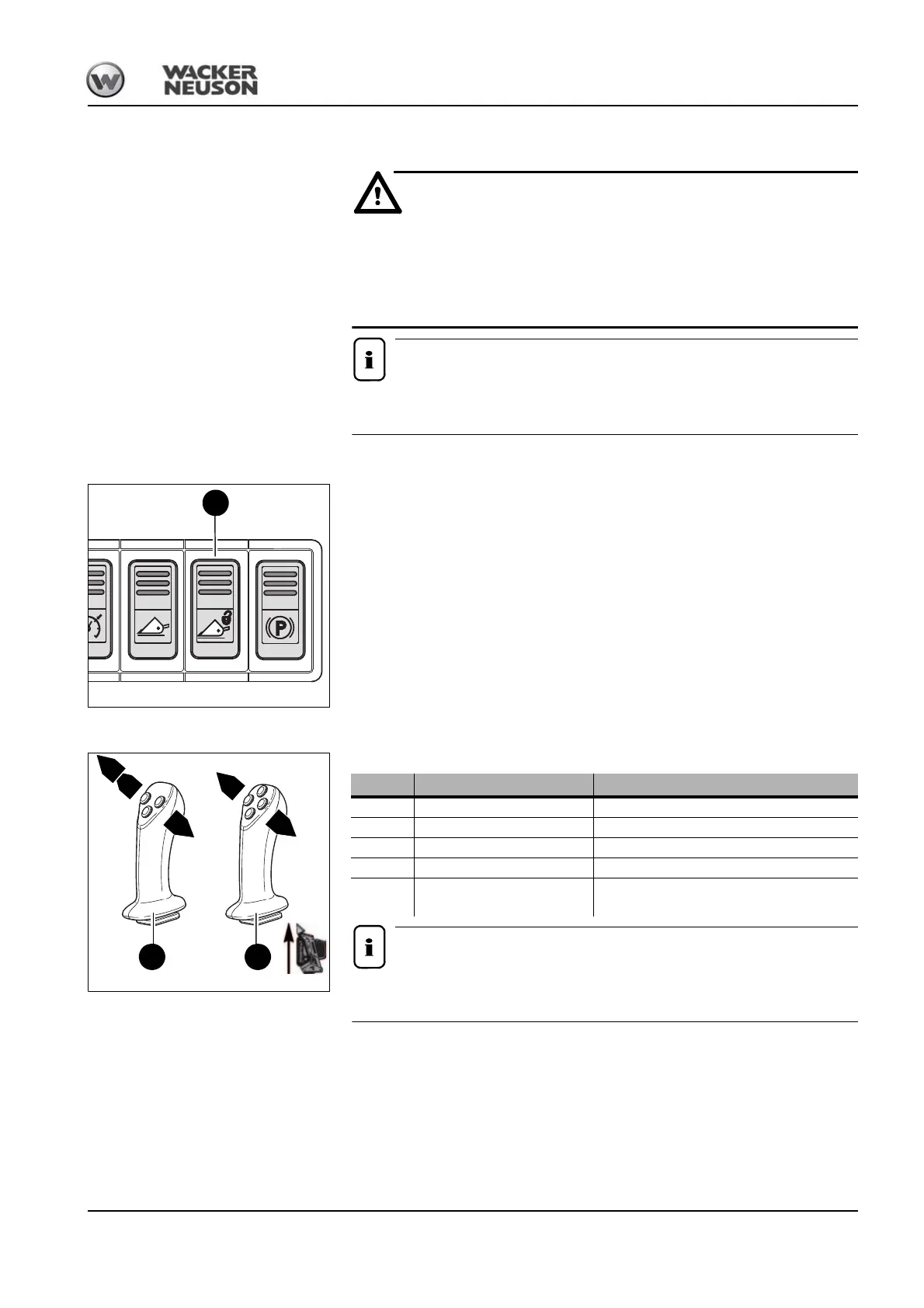

Fig. 58: Locking the operating hydraulics
Fig. 59: Control lever (H controls)
A
B
20
D
C
5
E
Position Lever Function
•A ☞ To the left ➥ Lowers the loader unit
•B ☞ To the right ➥ Raises the loader unit
•C ☞To the left ➥ Tilts in the attachment
•D ☞To the right ➥ Tilts out the attachment
•E ☞ Fully to the left and beyond
into the engaged position
➥ Lowers the loader unit to float position
