Operation
ISO controls
.
The forward and backward travel speed can be set with the drive lever.
For maximum traction force, move the levers fully forward at full engine speed.
For safe control of the loader, always move the levers slowly and smoothly. Short
movements of the control levers are sufficient for moving the loader.
The hydrostatic drive acts as a service brake and stops the loader as soon as the steering
arm is returned to neutral position.

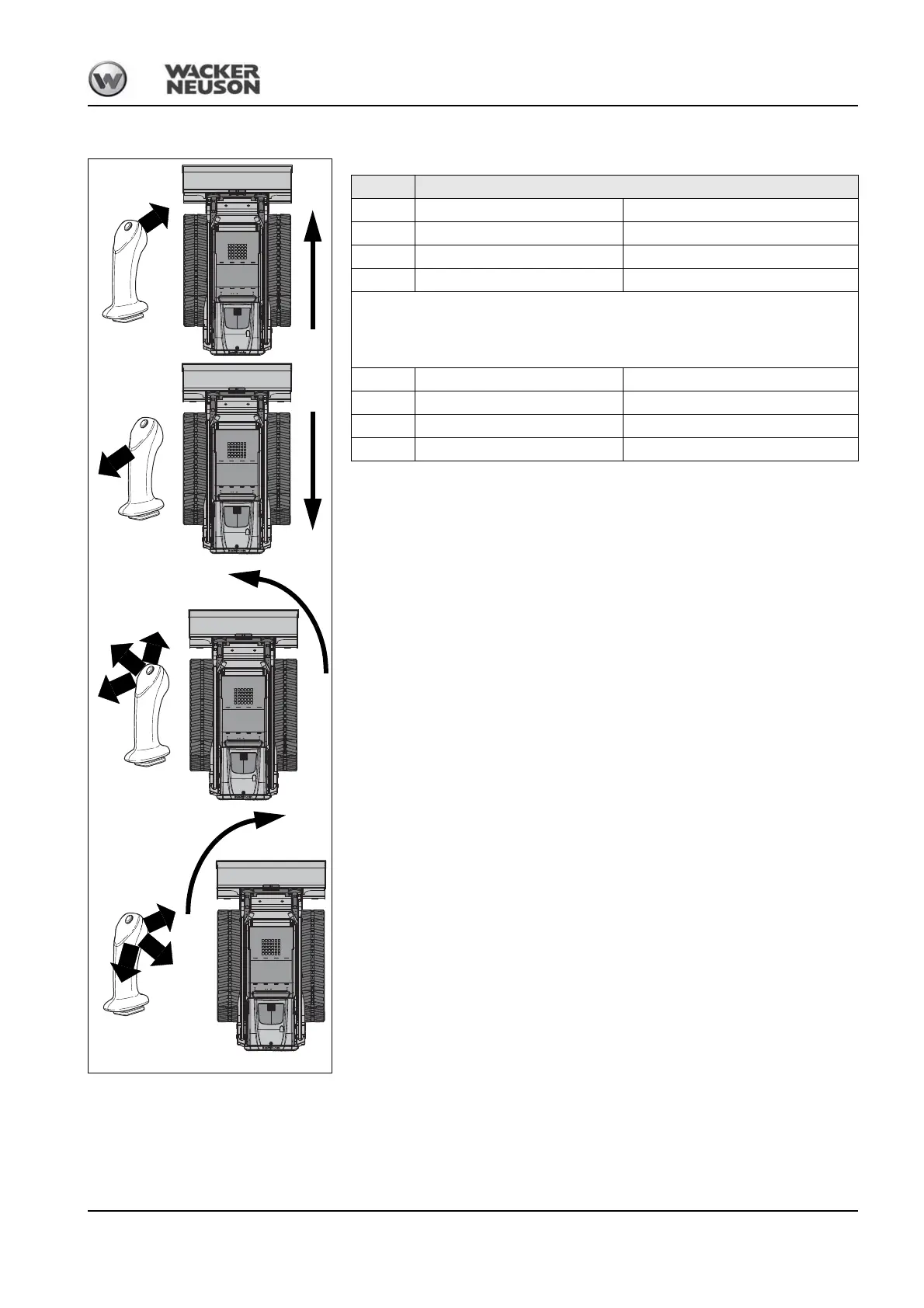

Fig. 61: ISO controls
4
3
5
7
8
6
2
1
Position Function
•1
Push forward Loader moves forward
•2
Pull backward Loader moves backward
•3
Push to the left Loader steers to the left on the spot
•4
Push to the right Loader steers to the right on the spot
If the lever is moved at an angle with respect to the machine axis, the machine moves
both forward (or backward) and changes direction, proportionally to the angle of the
steering lever, since both hydraulic pumps in charge of the respective functions respond
at the same time.
•5
Push forward to the left at an angle The loader moves forward to the left
•6
Pull backward to the left at an angle The loader moves backward to the left
•7
Push forward to the right at an angle The loader moves forward to the right
•8
Pull backward to the right at an angle The loader moves backward to the right
