Operation
3.20 Re-equipping the loader unit
Re-equipping the attachments is described below for a standard bucket. If you are fitting or
removing attachments with their own hydraulic functions – for example rotary broom or
auger – you must follow the special information given in the Operator’s Manual of the
attachment.
Also refer to the Operator’s Manual of the attachment for the procedure to follow for fitting
an attachment onto a quickhitch.
Re-equipping attachments –
Injury hazard!
☞ Avoid accidents and injury by following the information below:
• Stop the engine
• Raise the safety bar
• Re-equip attachments only with suitable tools
• Do not align components with your fingers or your hands but use
suitable tools – crushing hazard!
☞ After you have re-equipped an attachment, or before starting work, ensure
that the attachment is safely locked in the quickhitch.
Fitting attachments onto the quickhitch
☞ Re-equip as follows:
☞ Drive the machine up to the attachment
☞ Lower the quickhitch a little
☞ Drive up to the attachment with coupling claws A until
➥ the upper edge B of the quickhitch is positioned under the upper flange of the
bucket. Ensure that the lock levers do not touch the bucket.

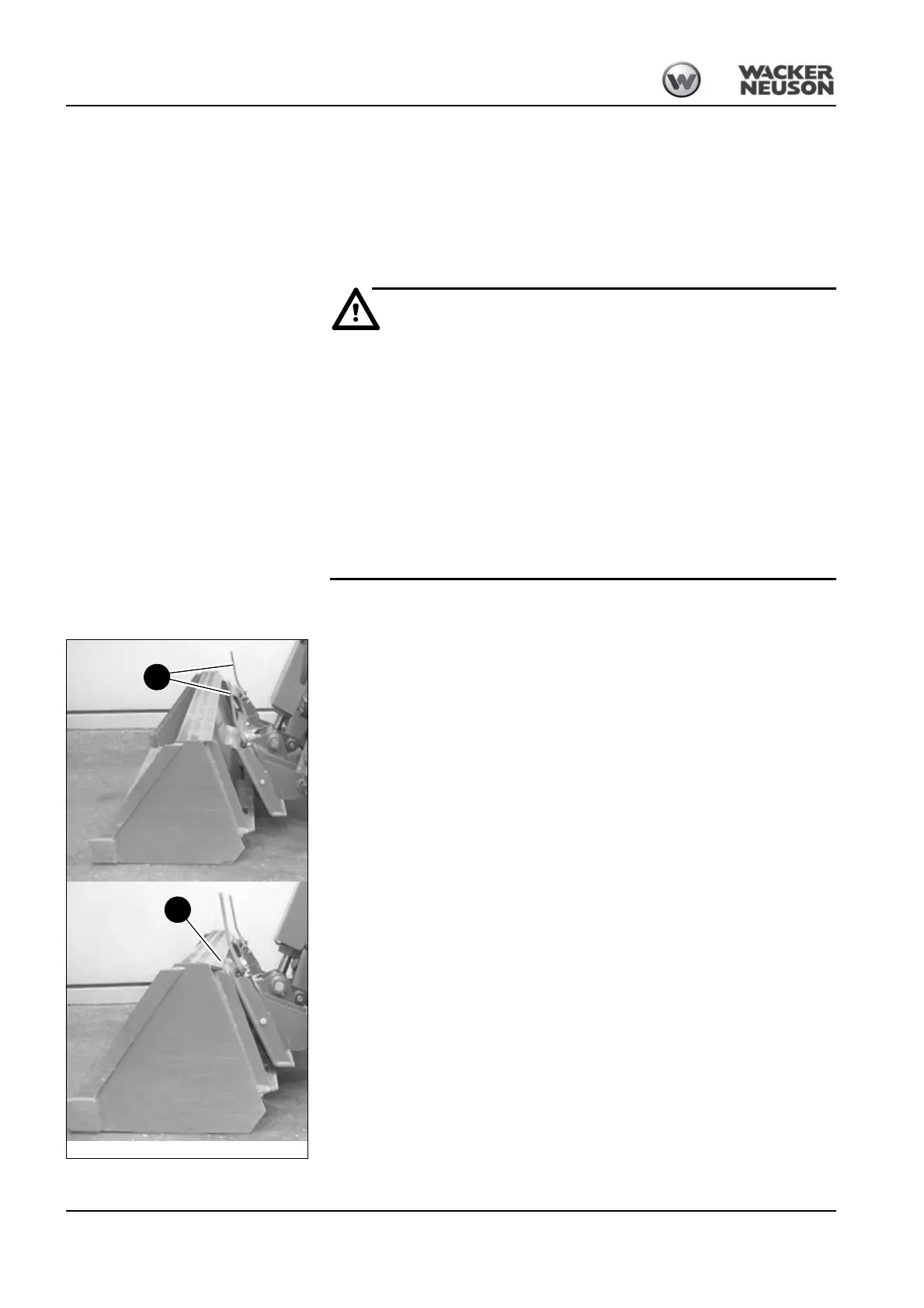

Fig. 69: Approaching the attachment
A
B
