Operation
H controls (option)
.
Forward or reverse travel speed depends on the position of the drive levers.
For maximum traction force, move the levers fully forward at full engine speed.
For safe control of the loader, always move the levers slowly and smoothly. Short
movements of the control levers are sufficient for moving the loader.
The hydrostatic drive acts as a service brake and stops the loader as soon as the steering
arms are returned to neutral position.
Model 901:
Ensure that the wheels on the right and left move as you change direction,
otherwise the tires are subject to increased abrasion.
Model 1101:
Ensure that both tracks move as you change direction, otherwise the rubber tracks
are subject to increased abrasion.

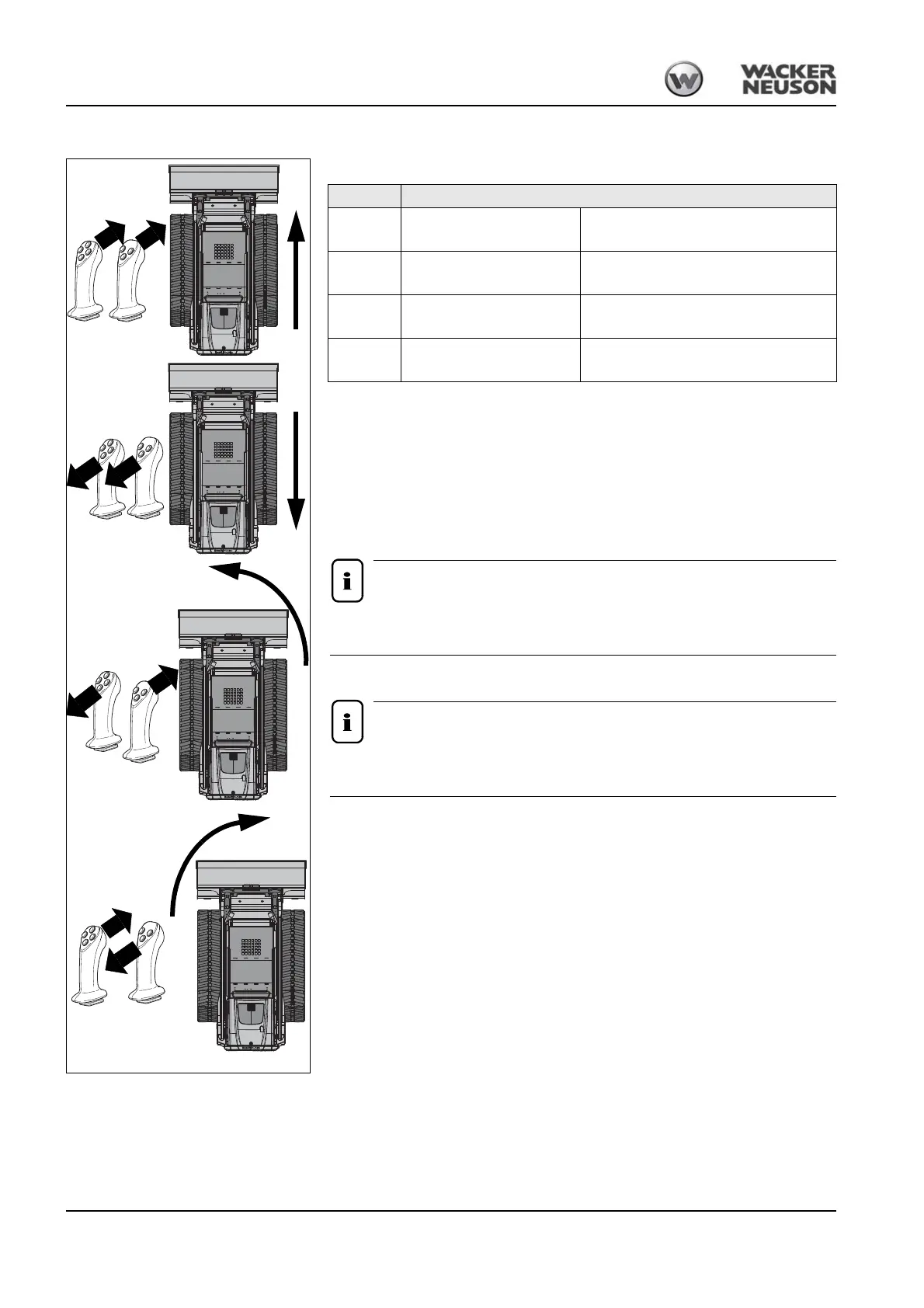

Fig. 62: H controls (option)
1
2
3
4
2
3
1
4
Position Function
•1
•2
Push forward
Push forward
Loader moves forward
•3
•4
Pull backward
Pull backward
Loader moves backward
•3
•2
Pull backward
Push forward
Loader steers to the left on the spot
•1
•4
Push forward
Pull backward
Loader steers to the right on the spot
