3-44 BA 901/1101 en – Edition 2.1 * 91101b330.fm
Operation

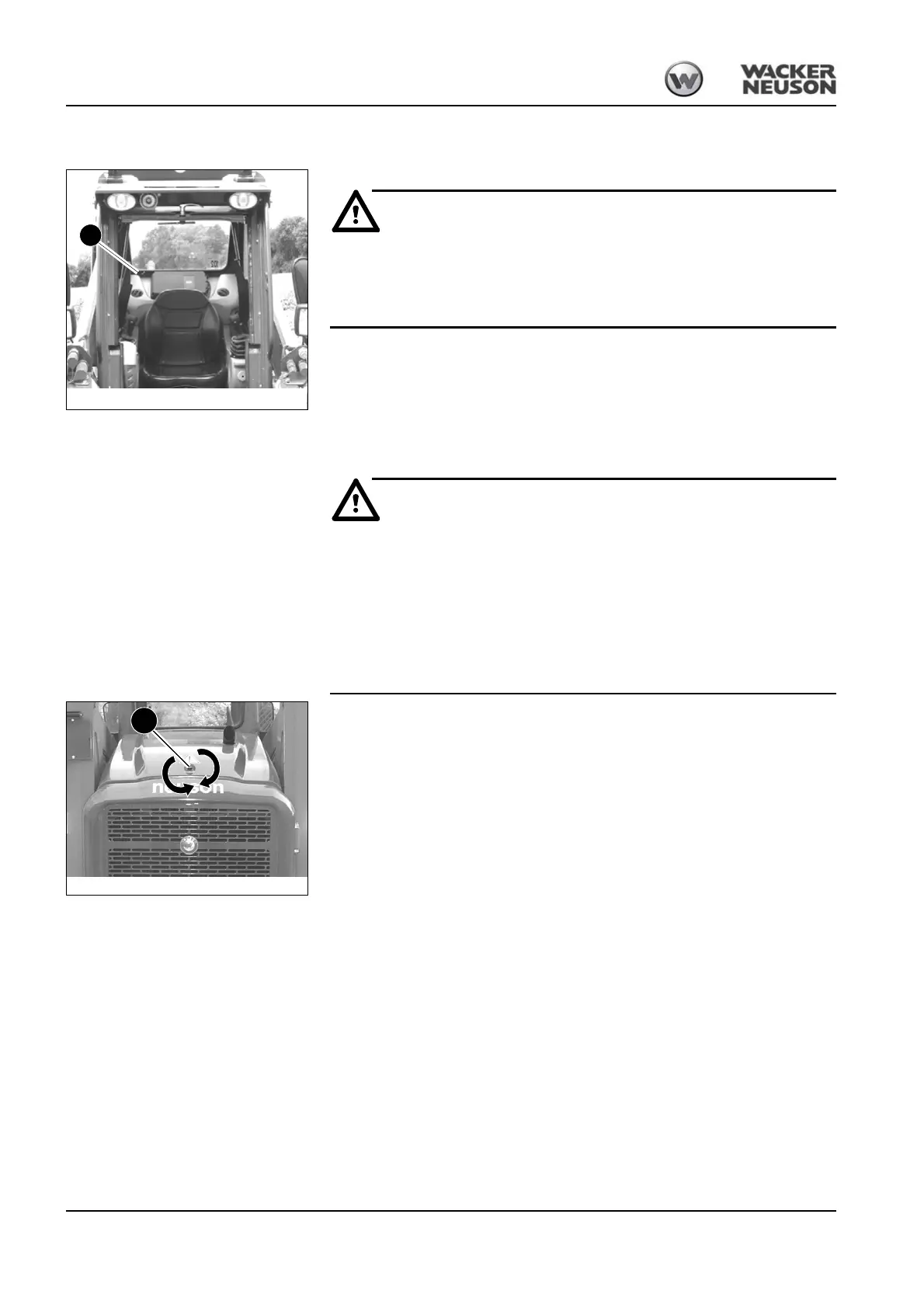

3.20 Emergency exit
The rear window can be used as an exit in an emergency.
The machine has neither footholds nor handholds at the rear for a safe exit.
Injury hazard!
☞ Use the rear window as an exit only in an emergency!
• Proceed as follows to remove the rear window:
☞ Pull ring R on the rear window with force, clockwise around the window
☞ Push out the window with force
➥ The window and the seal fall out of the cabin chassis
3.21 Engine cover
Open the engine cover only at engine standstill!
Injury hazard!
Closing and opening the engine cover
Injury hazard!
☞ Ensure that neither fingers nor other limbs are squeezed when opening or
closing the engine cover
Open
☞ Press lock A
☞ Pull the engine cover upward
Closing:
☞ Firmly press down the engine cover until lock A engages with an audible click
Locking and unlocking:
Close the engine cover with the starting key.
☞ Turn the starting key in lock A to the left (L)
➥ Engine cover locked
☞ Turn the starting key in lock A to the right (R)
☞ Engine cover unlocked
