BA 901/1101 en – Edition 2.1 * 91101b530.fm 5-33
Maintenance
Maintenance prop of loader unit
Failure to use loader unit prop A for maintenance on the loader unit, or for
maintenance that requires raising the loader unit –
Accident hazard!
☞ Always use the loader unit prop A when performing maintenance on the
(raised) loader unit
☞ Loader unit prop A may only be installed by a second person!
☞ Always secure loader unit prop A with split pin D!
Install the loader unit prop as follows:
☞ Remove the attachment
☞ Raise the loader unit and have a second person secure it
☞ Remove split pin D from pin E
☞ Remove pin E
☞ Raise the loader unit until prop A touches the piston rod
☞ Put pin E back into place
☞ Secure pin E with split pin D
☞ Stop the engine
☞ Lower the loader unit down to loader unit prop A
☞ Remove the starting key
☞ Raise the safety bars

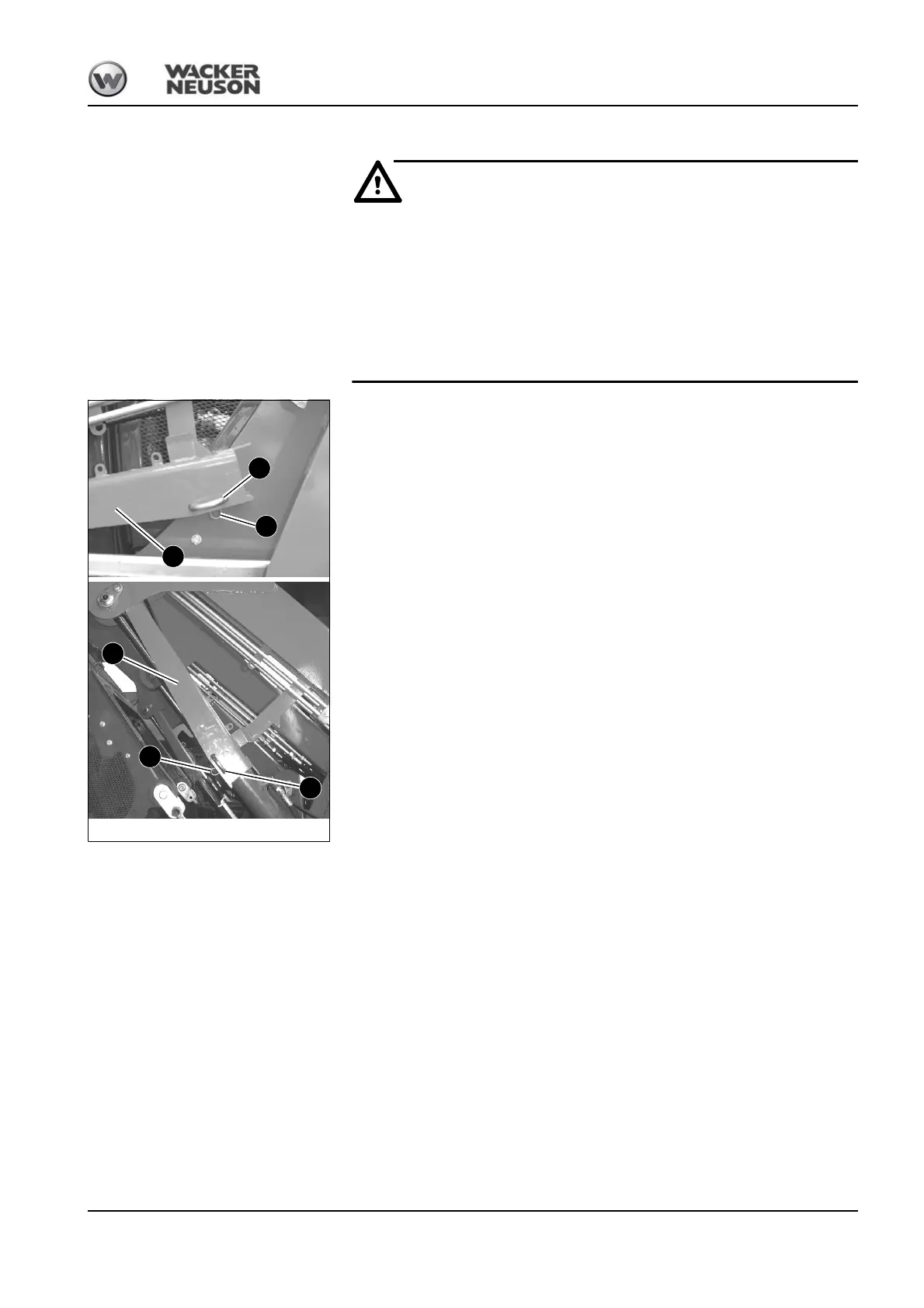

Fig. 116: Loader unit prop
A
D
A
E
E
D
