6-4 BA 901/1101 en – Edition 2.1 * 91101b610.fm
Technical data
6.8 Electrical system
Fuse box behind the seat on the left
Electrical system
Alternator
14 V 95 Ah
Starter
12 V 2.3 kW
Battery
12 V 88 Ah
Socket
For 12 V power outlet, for example; 15 A max.

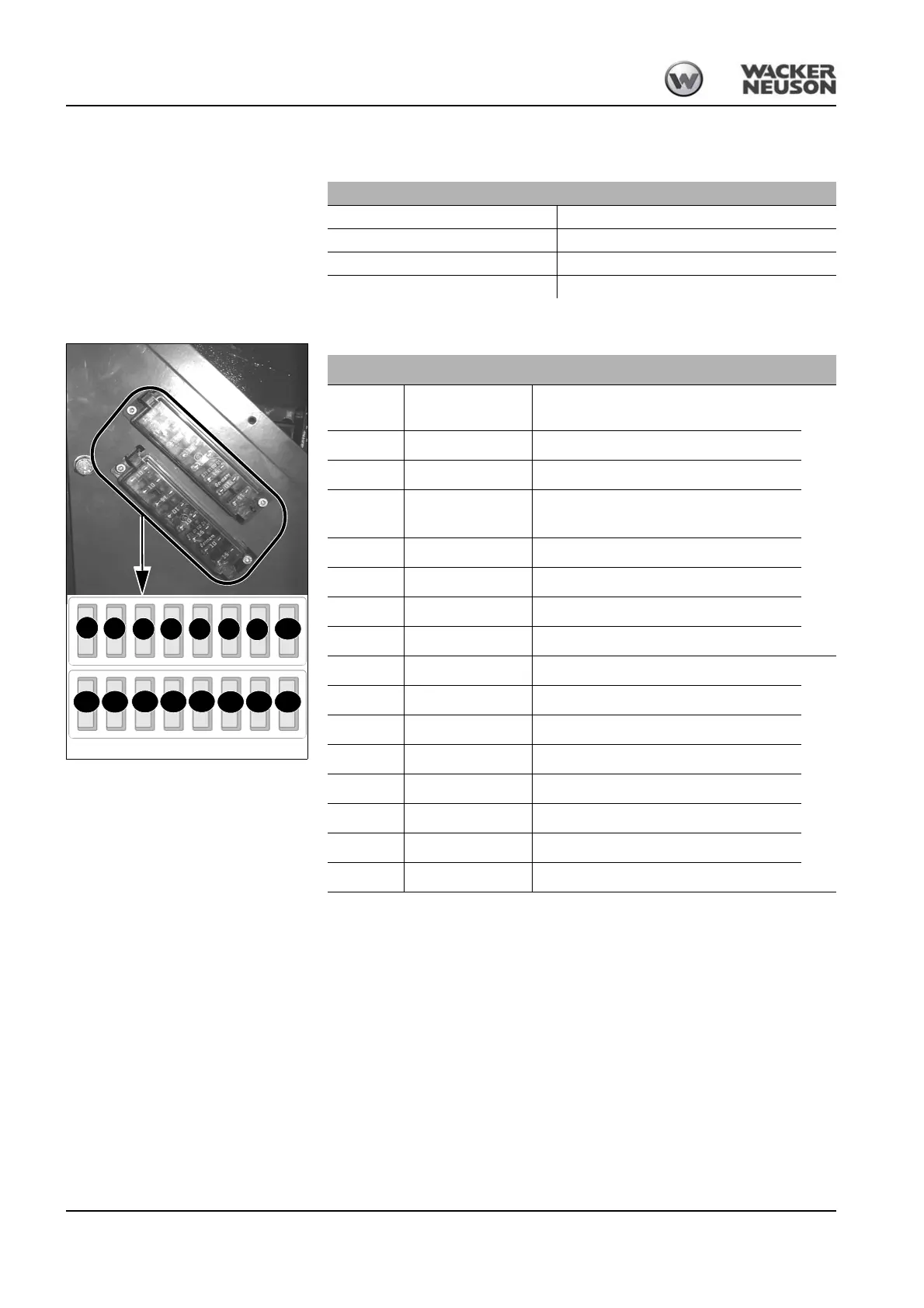

Fig. 117: Fuse box
F3
F4
F8
F9
F10
F5 F6 F7
F18F17
F16
F15
F14F13
F12F11
Fuse no. Rated current (A) Protected circuit
F3 10 A
– Engine indicator light, round display ele-
ment
Standard machine
F4 15 A – Valves 1
F5 15 A – Working lights
F6 15 A
– Lights according to STVO Austrian road
traffic regulations
F7 15 A – Turn indicators 12 V/15
F8 15 A – Hazard warning system
F9 15 A – 12 V power outlet
F10 10 A – Rotating beacon, immobilizer
F11 10 A – Valves 2
F12 15 A – Controls 1
F13 15 A – Controls 2
F14 15 A – Controls 3
F15 10 A – Heating
F16 15 A – Air conditioning
F17 10 A – Wiper
F18 10 A – Not assigned
