Operation
Lowering the loader unit with the engine stopped
Lower the loader unit as follows:
☞ Ensure that no one is in the danger zone of the machine
☞ Turn the starting key to position “1”
☞ Keep control lever 5/20 pressed to the left (A),
➥ Until the loader unit is completely lowered
☞ Return control lever 5/20 to neutral
At engine standstill, or if there is a malfunction in the hydraulic system, the loader
unit can be lowered by means of emergency lowering.
This works only if the safety bar is closed
3.11 Parallel bucket lift
The parallel bucket lift automatically keeps the bucket parallel with the ground at all times.
The position of the bucket no longer needs to be corrected manually when raising the
loader unit. (for example during fork arms operation)
However, the position of the bucket must be corrected manually when lowering the loader unit.
☞ Switch on parallel bucket lift as follows:
• Press switch 45
➥ Parallel bucket lift is switched on
☞ Switch off parallel bucket lift as follows:
• Press switch 45
➥ Parallel bucket lift is switched off
3.12 2-way parallel bucket lift (option)
The parallel bucket lift automatically keeps the bucket parallel with the ground at all times.
The position of the bucket no longer needs to be corrected manually when raising or
lowering the loader unit. (for example during fork arms operation)
☞ Switch on parallel bucket lift as follows:
• Press switch 45
➥ Parallel bucket lift is switched on
☞ Switch off parallel bucket lift as follows:
• Press switch 45
➥ Parallel bucket lift is switched off

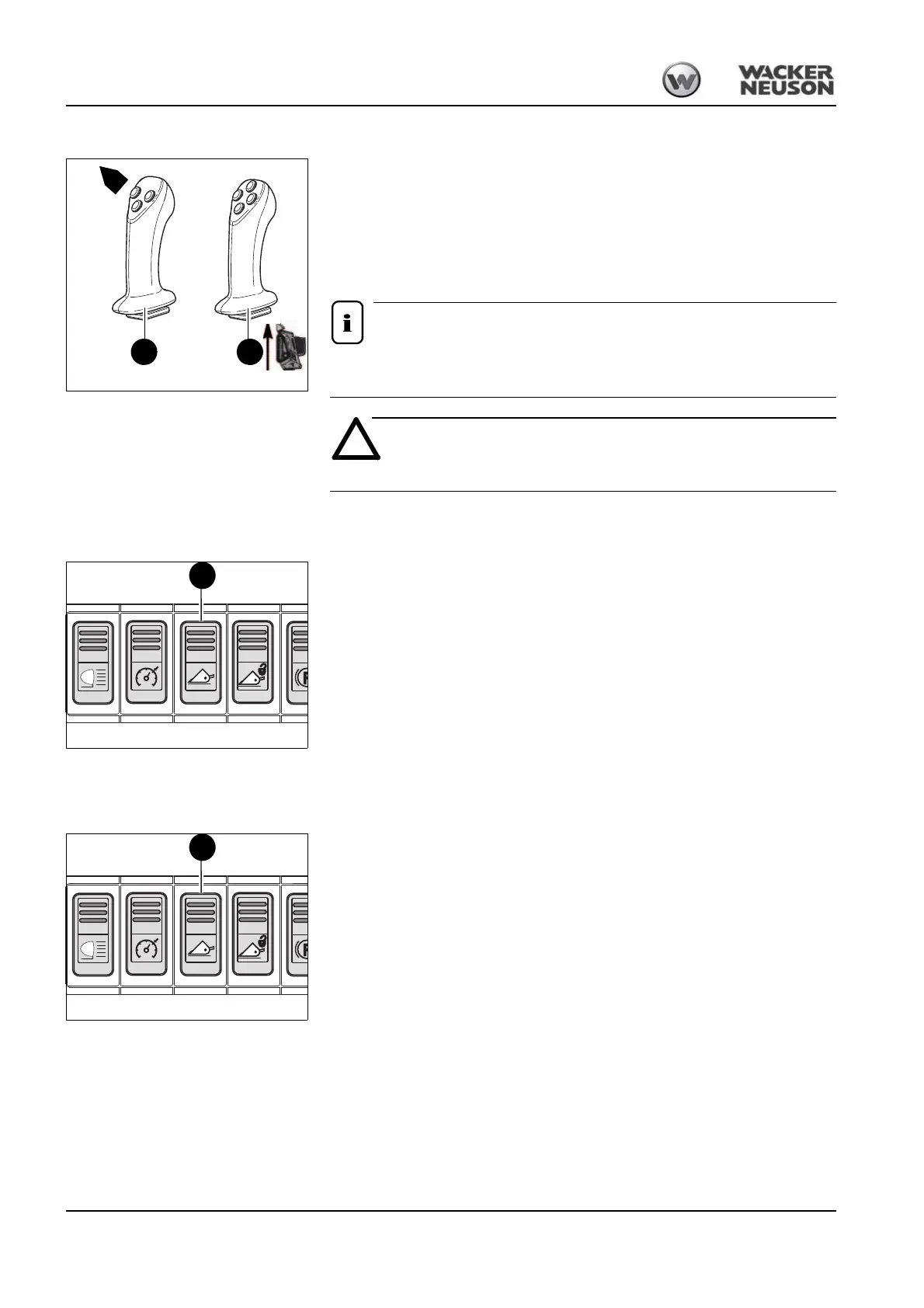

Fig. 60: Lowering the loader unit with the engine stopped
A
205
Fig. 61: Parallel bucket lift
45
Fig. 62: Parallel bucket lift
45
