3-46 BA 901/1101 en – Edition 2.1 * 91101b330.fm
Operation
3.23 Cabin
Raising/lowering the cabin
Careful when raising or lowering the cabin –
Accident hazard!
☞ Always tighten lock screws B during machine travel and operation!
☞ Park the machine on level and horizontal ground!
☞ Close the door (option)!
☞ Loader unit prop A may only be installed by a second person!
☞ When raising or lowering the cabin, ensure that no one is underneath the cabin!
☞ Loader unit prop A and cabin prop C must always be secured with split pin D!
Raising the cabin:
☞ Remove the attachment
☞ Raise the loader unit and have a second person secure it
☞ Remove split pin D from pin E
☞ Remove pin E
☞ Raise the loader unit until prop A touches the piston rod
☞ Put pin E back into place
☞ Secure pin E with split pin D
☞ Stop the engine
☞ Lower the loader unit down to loader unit prop A
☞ Remove the starting key
☞ Raise the safety bars
☞ Remove securing screws B on either side with a suitable tool
☞ Tilt the cabin forward with the handholds
☞ Secure the cabin with split pin F

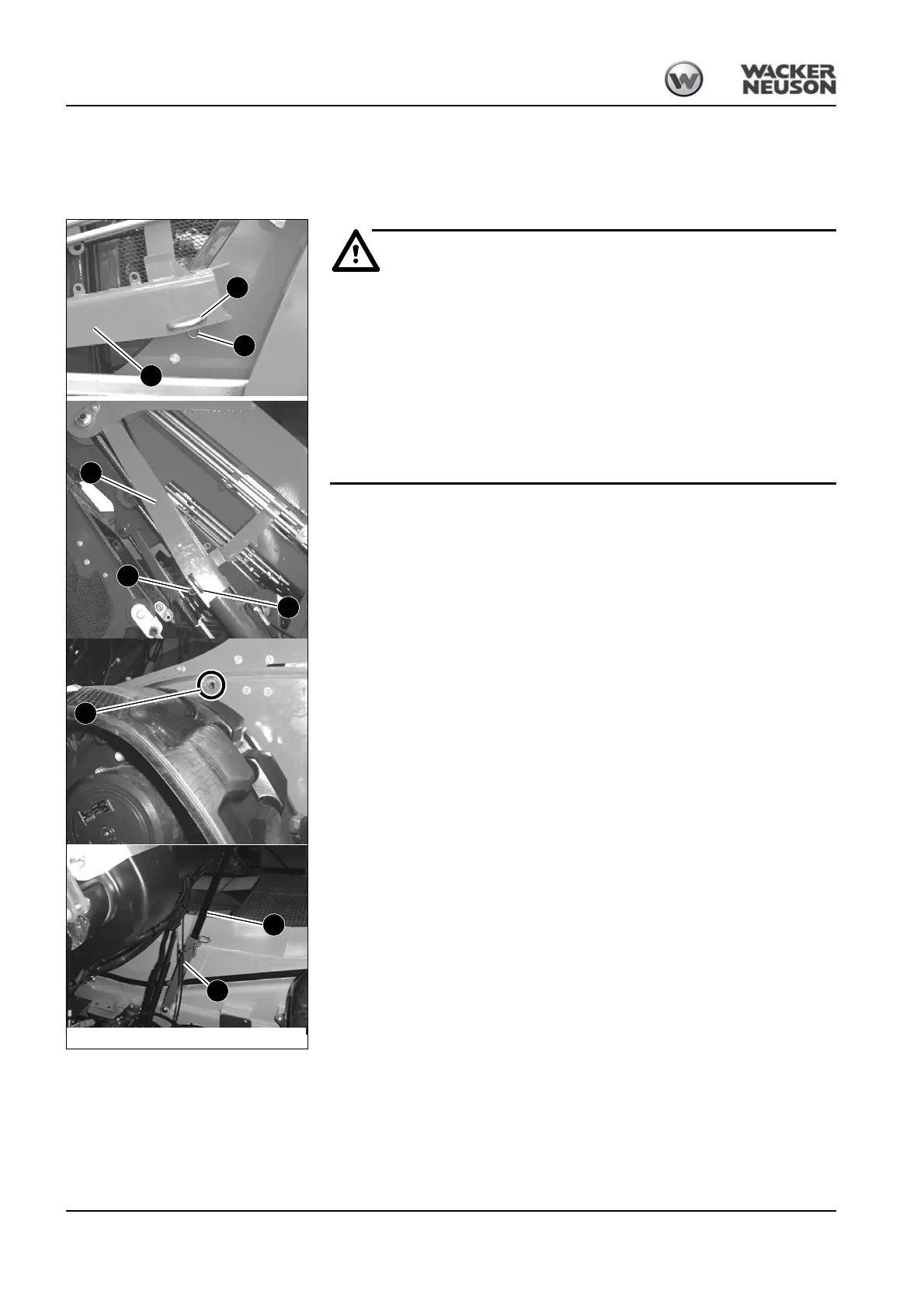

Fig. 92: Raising/lowering the cabin
A
F
B
D
A
E
E
D
C
