Wacker Neuson 901SP User Manual

BA 901/1101 en – Edition 2.1 * 91101b610.fm 6-5
Technical data
Main fuse box with relays
Relay box at rear left of cabin

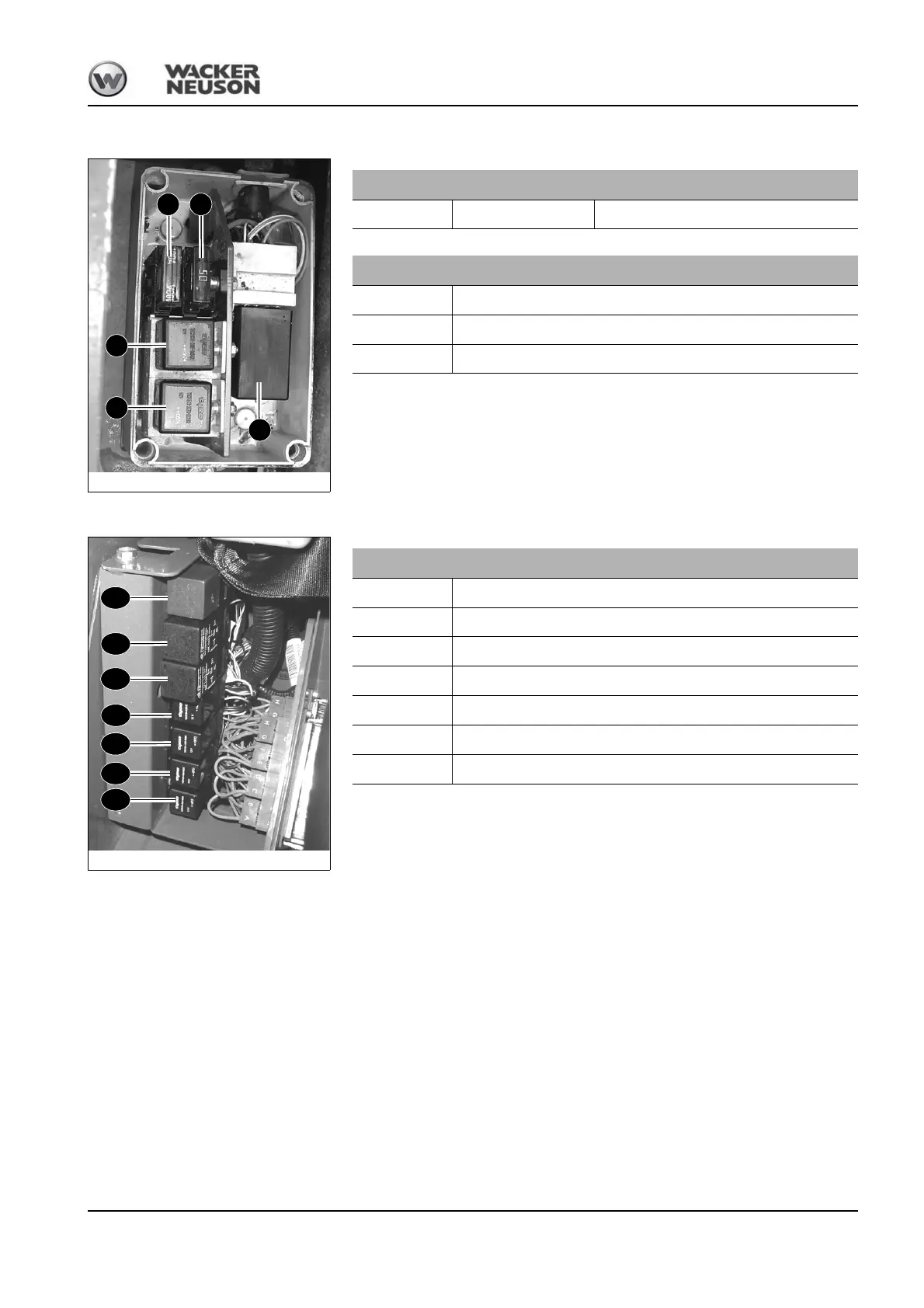

Fig. 118: Relay box under the cabin
F1 F2
K7
K5
K6
Fuse no. Rated current (A) Protected circuit
F1, F2 80 A – Main fuse
Relay no. Protected circuit
K 5 – Preheat
K 6 – Preheating timer
K 7 – Starting relay
Fig. 119: Relay box at rear left of cabin
K18
K17
K16
K11
K34
K36
K10
Relay no. Protected circuit
K18 – Controls 3 (option)
K17 – Controls 2 (option)
K16 – Controls 1 (option)
K11 – Air conditioning (option)
K34 – Load stabilizer (option)
K36 – 2nd travel speed
K10 – Turn indicator relay (option)
