1-16 BA 901/1101 en – Edition 2.1 * 91101b110.fm
Introduction

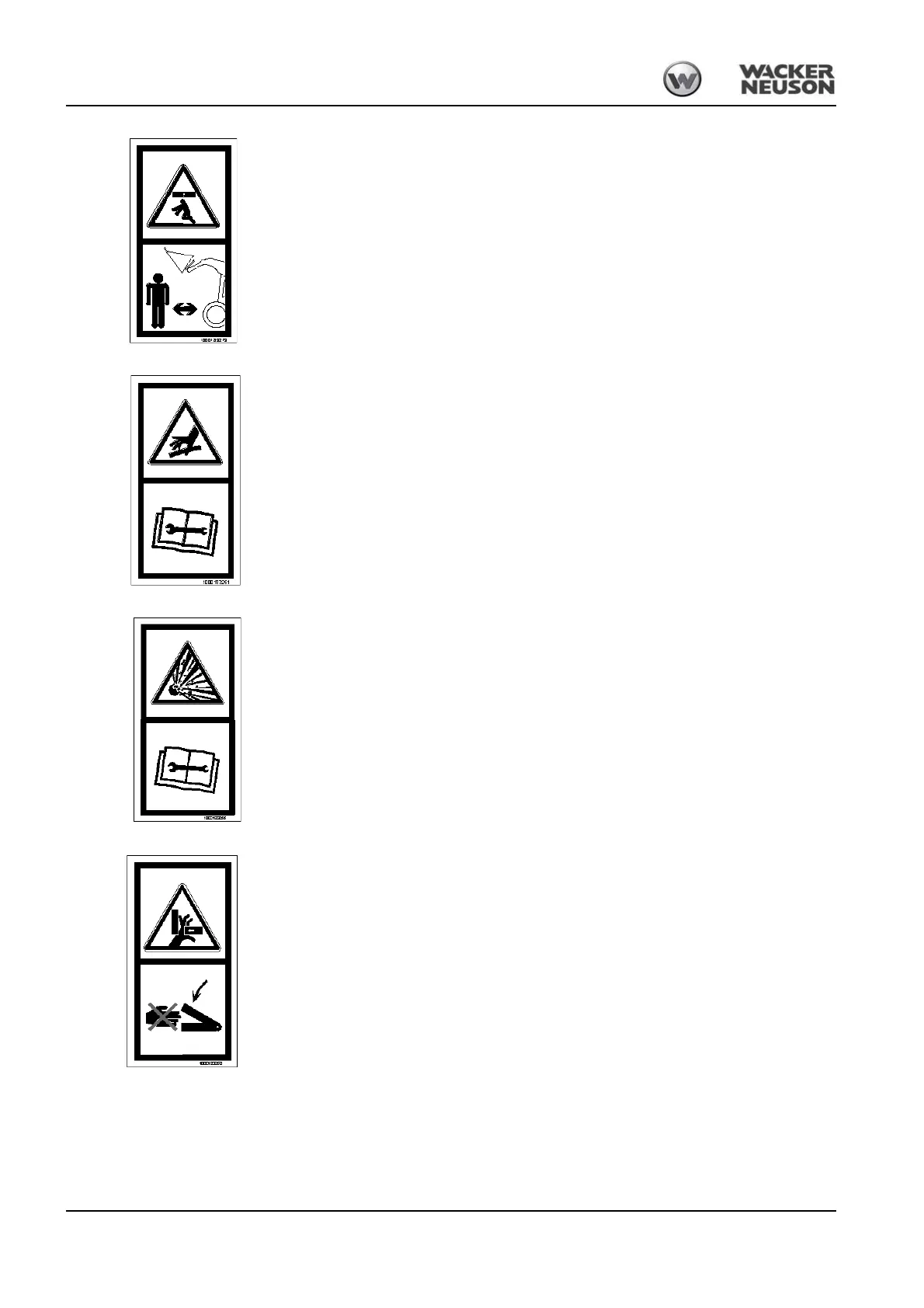

Meaning
Stay clear of the working range of the loader unit.
Location
2 x on the loader unit on the left and right.
Meaning
Caution: high-pressure fluids can escape
Location
1 x on the radiator on the right
Meaning
Receptacle (pressure accumulator, radiator ...) under pressure (gas, oil)
Location
1 x on the radiator on the right
1 x in pump area on the right (accumulator)
Meaning
Always stay clear of the area with crushing hazard while parts in this area can move.
Location
2 x on the loader unit cylinder on the left and right
2 x on the quickhitch system
2 x inside the cabin
Fig. 11: Loader unit working range
Fig. 12: Caution: high-pressure fluid
Fig. 13: Pressure accumulator
