Watchguard DV-1 - Connections and Cable Diagrams (Overhead Unit)

CONNECTIONS AND CABLE DIAGRAMS DV-1 SYSTEM OVERVIEW
18

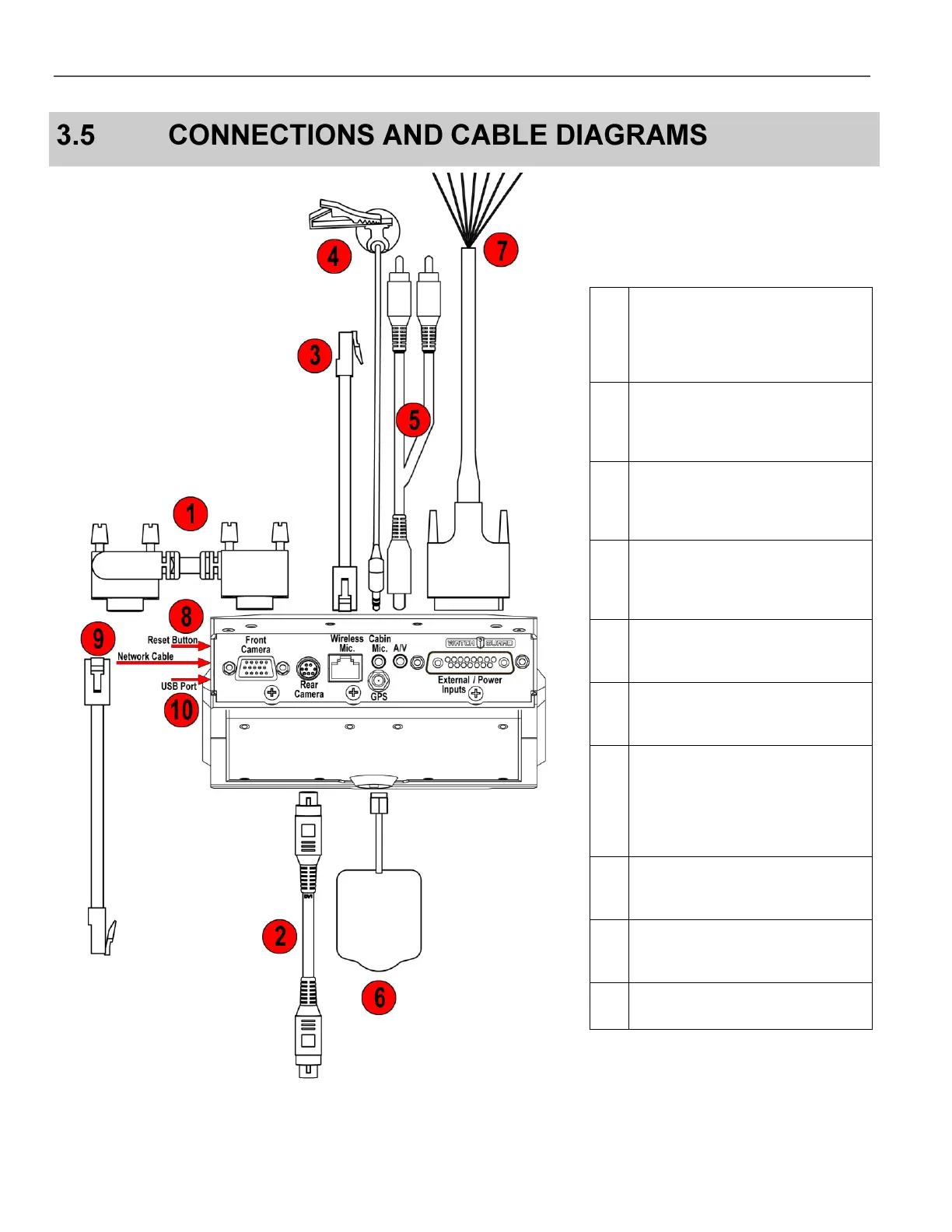

Figure 3 Connections and Cable Diagram – Overhead Unit
Table 1 Overhead Unit Cable
Descriptions
1
Front Camera Cable: Connects
the
DV-1 to the Front/Combination
Camera.
2
Rear/Auxiliary Camera Cable
(optional): Connects the DV-1 to
the Rear/Auxiliary Camera.
3
Wireless Microphone Cable:
Connects the DV-1 to the wireless
microphone system.
4
Cabin Microphone Cable:
Captures audio from inside the
vehicle.
5
A/V: Connects audio/video
components to the DV-1.
6
GPS Antenna: Connects the DV-1
to an optional GPS unit.
7
External Inputs/Power Cable:
Provides power from the vehicle
battery to the DV-1 and provides
external trigger inputs such as
radar, siren, lights, etc.
8
Reset Button: Re-powers the
DV-1.
9
Network Cable: Connects the
DV-1 to a network.
10
USB Port: For future expansion.
