Wood-mizer LT70L DH User Manual

Sawmill Alignment
Routine Alignment Procedure
Sawmill Alignment 60HDdoc102619 7-7
7
See Figure 7-7. Loosen the vertical adjustment bolt jam nuts. To tilt the blade guide arm down,
loosen the right bolt and tighten the left bolt. To tilt the blade guide arm up, loosen the left bolt and
tighten the right bolt. Retighten the jam nuts and recheck the blade guide arm vertical tilt.

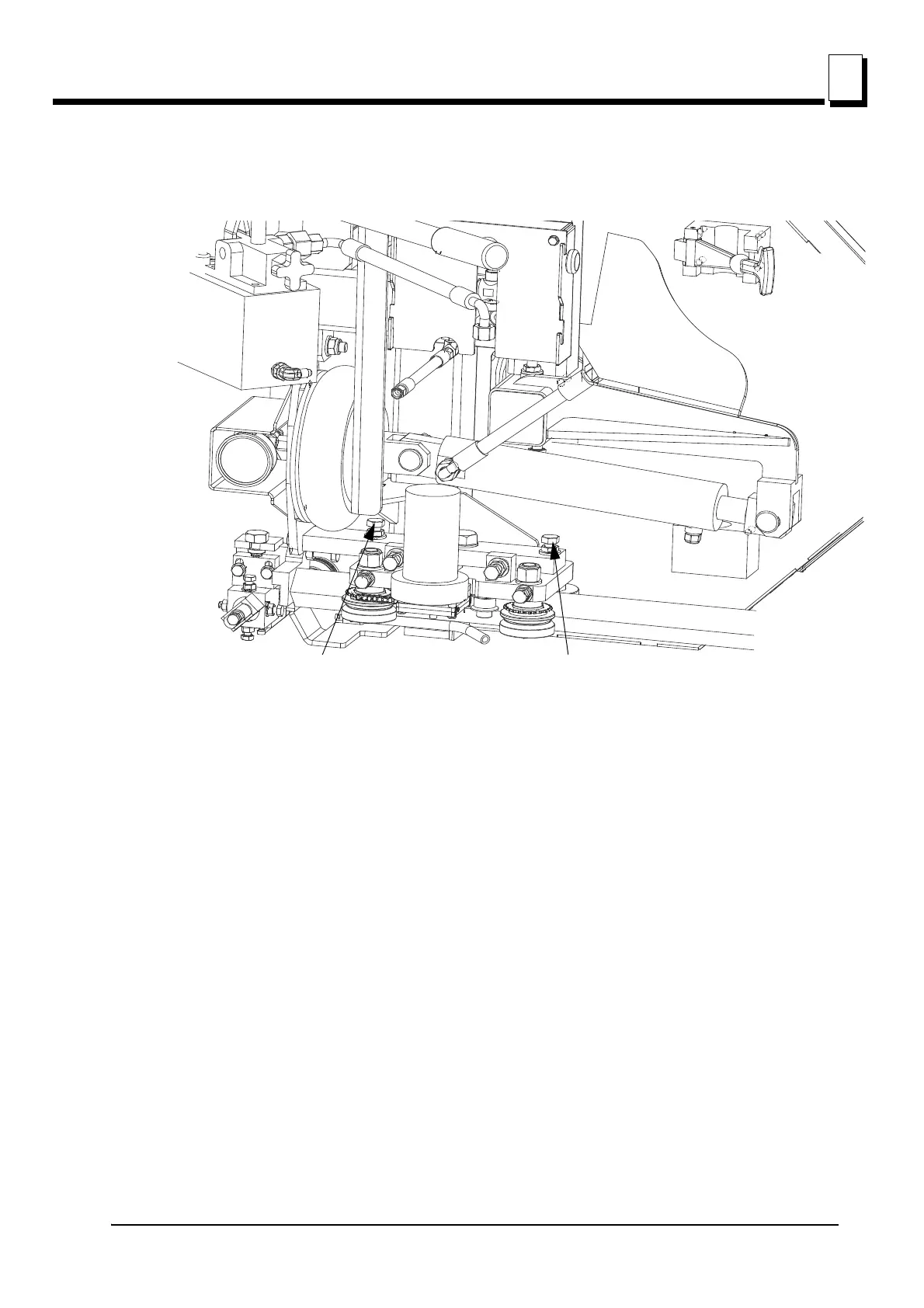

FIG. 7-7
Right Vertical
Adjustment Bolt
Left Vertical
Adjustment Bolt
