Sawmill Alignment
Routine Alignment Procedure
7
7-6 60HDdoc102619 Sawmill Alignment

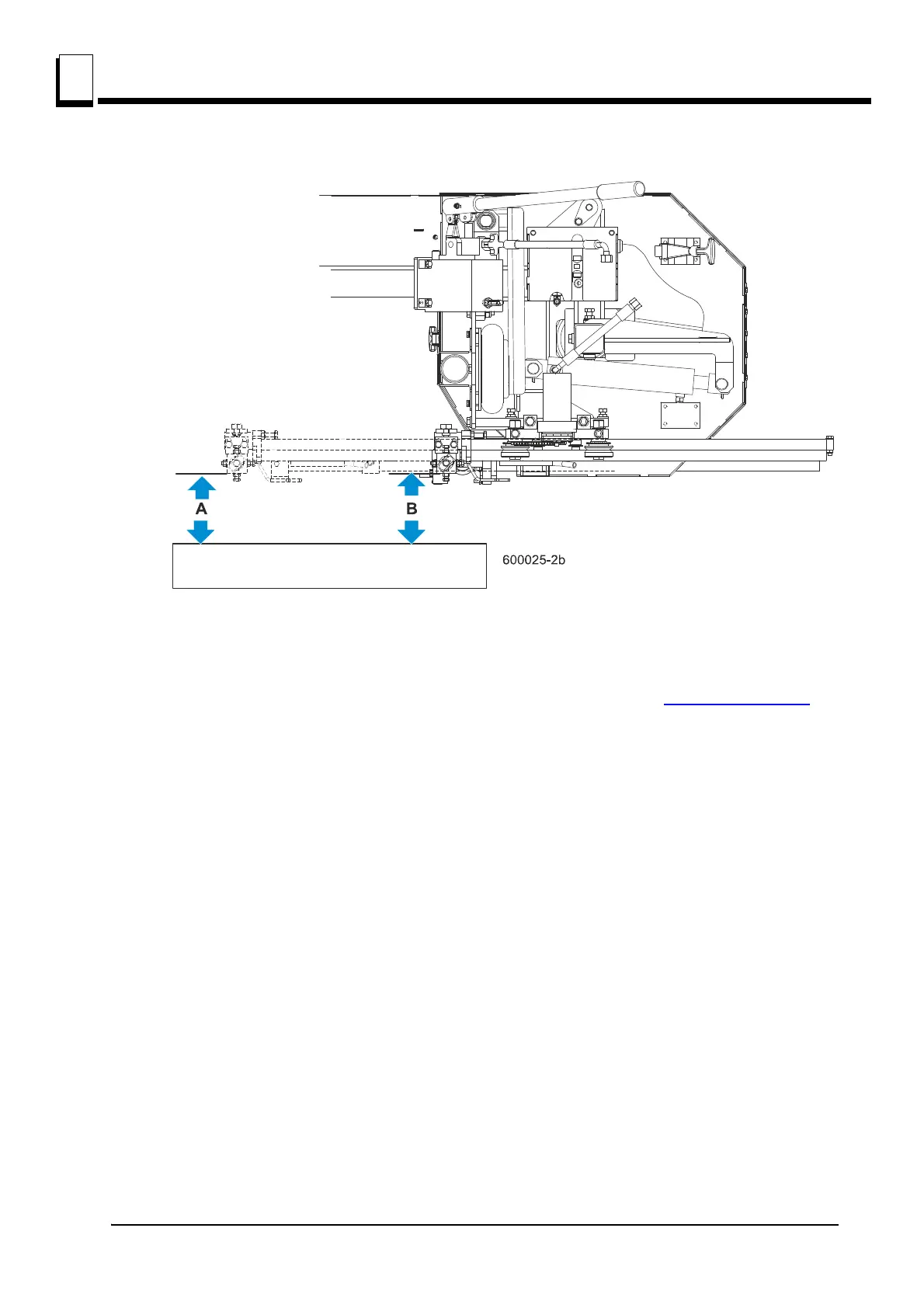

See Figure 7-6.
7. Adjust the blade guide arm to 1/2" (15 mm) from fully open. Measure the distance from the bottom of
the blade guide mounting block to the bed rail. This measurement should be 15" (375 mm) or slightly
higher because the saw head is tilted up 1/26" (1 mm) on the outside (See Saw Head Tilt
). If the
blade guide is closer to the bed rail or more than 1/26"(1mm) higher with the arm open, adjust the
blade guide arm vertically.
FIG. 7-6
Measure from blade
guide arm to bed rail
with arm open and closed
