Sawmill Alignment 60HDdoc102619 7-5
7
See Figure 7-4.
4. Adjust the blade guide arm to 1/2" (15 mm) from fully open and remeasure the distance from the
roller flange to the back of the blade. The two measurements should be the same. If not, adjust the
outer rollers in or out to tilt the arm horizontally.
See Figure 7-5. Loosen the horizontal adjustment bolt jam nuts. To tilt the arm in toward the blade,
loosen the right bolt and tighten the left bolt. To tilt the arm out away from the blade, loosen the left
bolt and tighten the right bolt. Retighten the jam nuts and recheck the blade guide arm horizontal tilt.
5. Now check the vertical tilt of the blade guide arm. Move the saw carriage so the blade guide arm is
positioned over a bed rail.
6. With the arm 1/2" (15 mm) from fully closed, raise or lower the saw head until the bottom of the blade
guide block is 15" (375 mm) from the top of the bed rail.

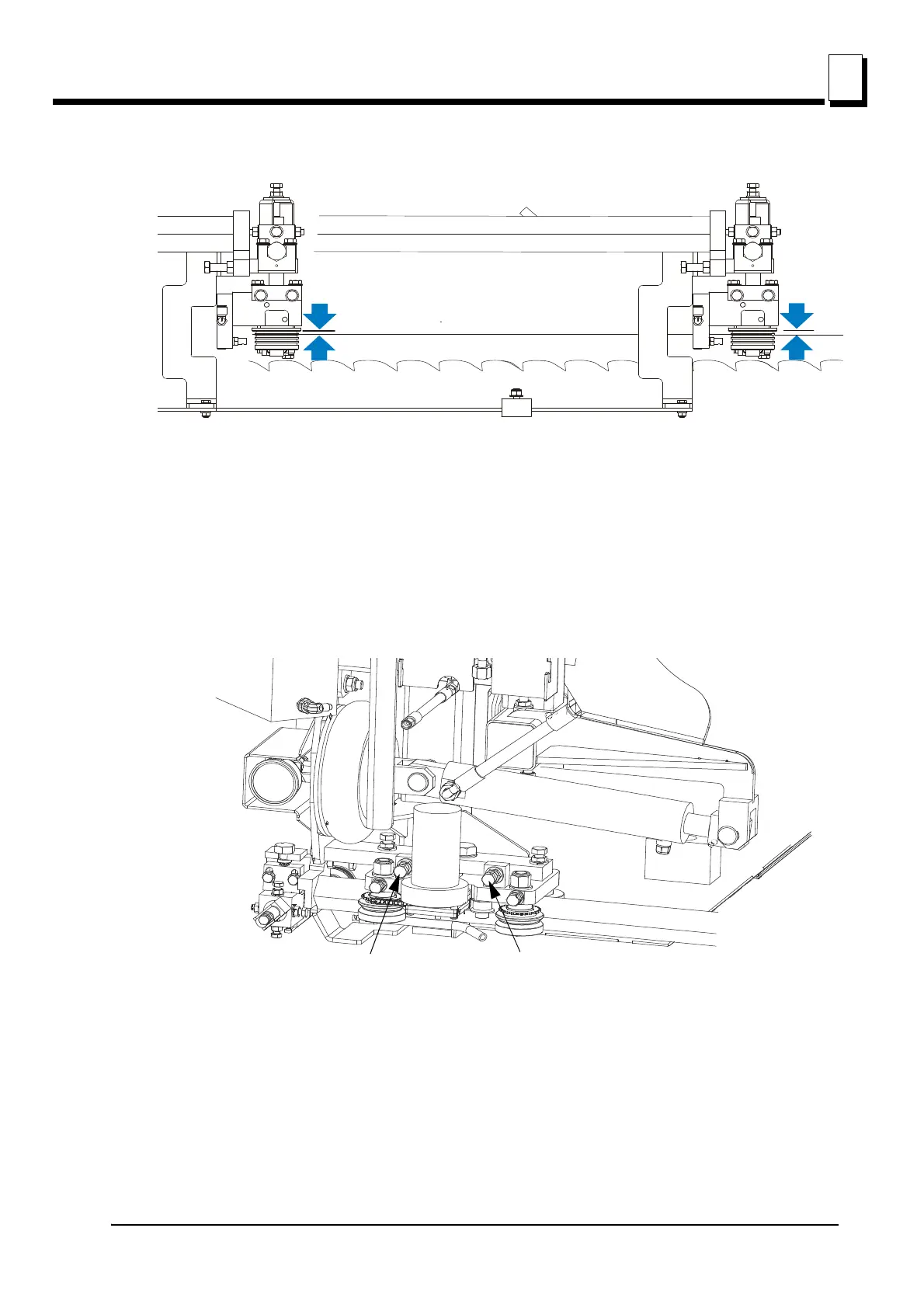

FIG. 7-4
FIG. 7-5
3H0802-10b
Measure distance between
roller flange and blade with
arm open and closed
Measure distance between
roller flange and blade with
arm open and closed
Right Horizontal
Adjustment Bolt
Left Horizontal
Adjustment Bolt
