Sawmill Alignment
Complete Alignment Procedure
7
7-28 60HDdoc102619 Sawmill Alignment
Tighten the two previously-loosened tilt adjustment screws to secure the blade guide assembly.
Turn the top adjustment bolt clockwise to raise the blade guide assembly so it does not touch the
blade.
NOTE: Before adjusting the top bolt, unload pressure on the bolt by
turning 1/2 turn in the opposite direction it was last adjusted.
With the roller flange positioned properly from the back of the blade, adjust the rear bolt so it touches
the end of the blade guide mounting shaft.

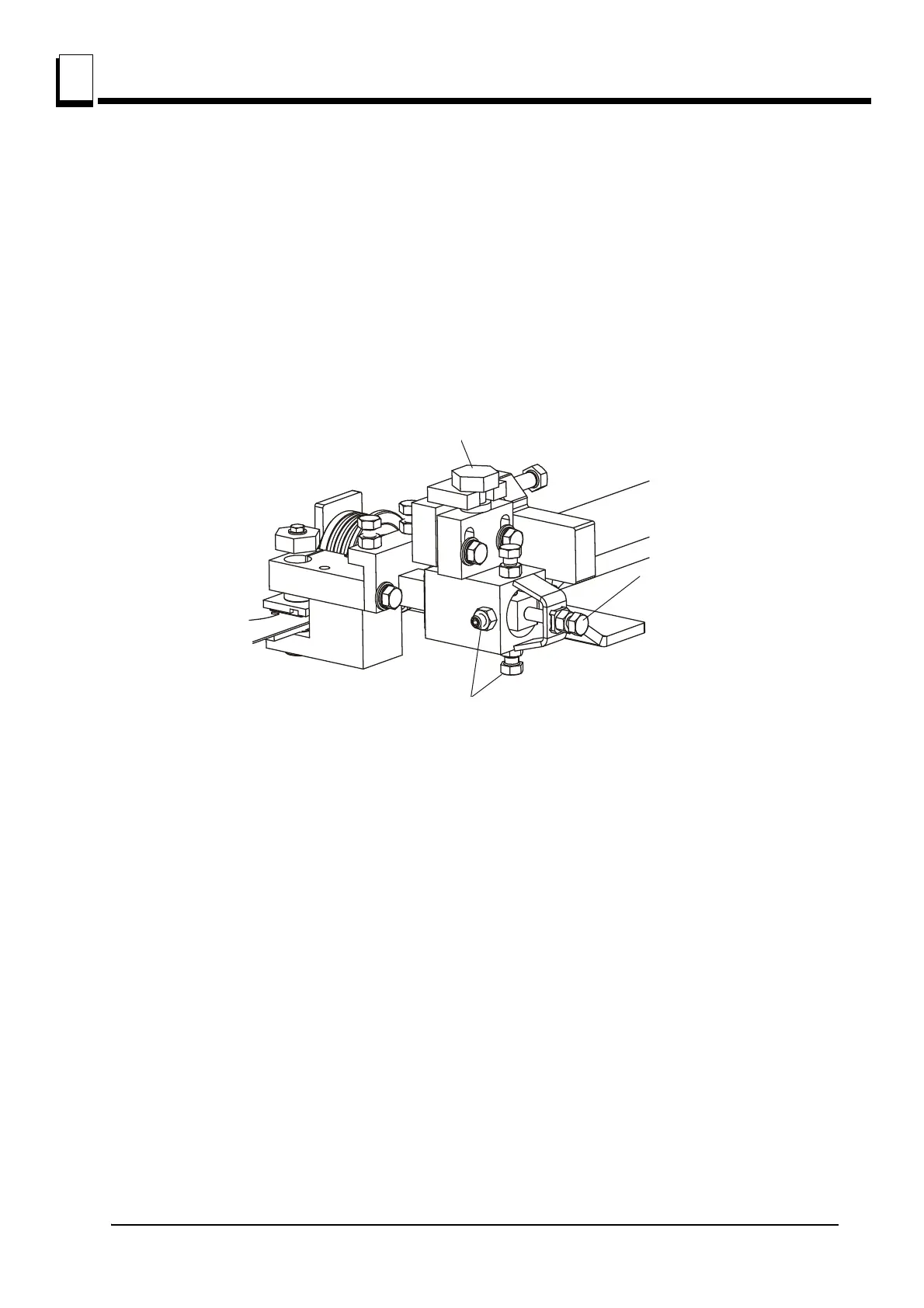

FIG. 7-28
Turn bolt clockwise
to raise assembly so
roller does not touch
the blade
600122-16
Tighten tilt screws to
secure blade guide assembly
Adjust rear bolt to
touch blade guide
shaft
Turn bolt clockwise to
raise assembly so
roller does not touch
the blade
Adjust rear bolt to
touch blade guide
shaft
Tighten tilt screws to secure blade
guide assembly
