Wood-mizer LT70L DH User Manual

Sawmill Alignment
Complete Alignment Procedure
7
7-32 60HDdoc102619 Sawmill Alignment
See Figure 7-32. Adjust the blade guide arm to 1/2" (15 mm) from fully open. Measure the distance
from the bottom of the blade guide mounting block to the bed rail. This measurement should be 15"
(376 mm). If the measurements are not the same, adjust the blade guide arm vertically.

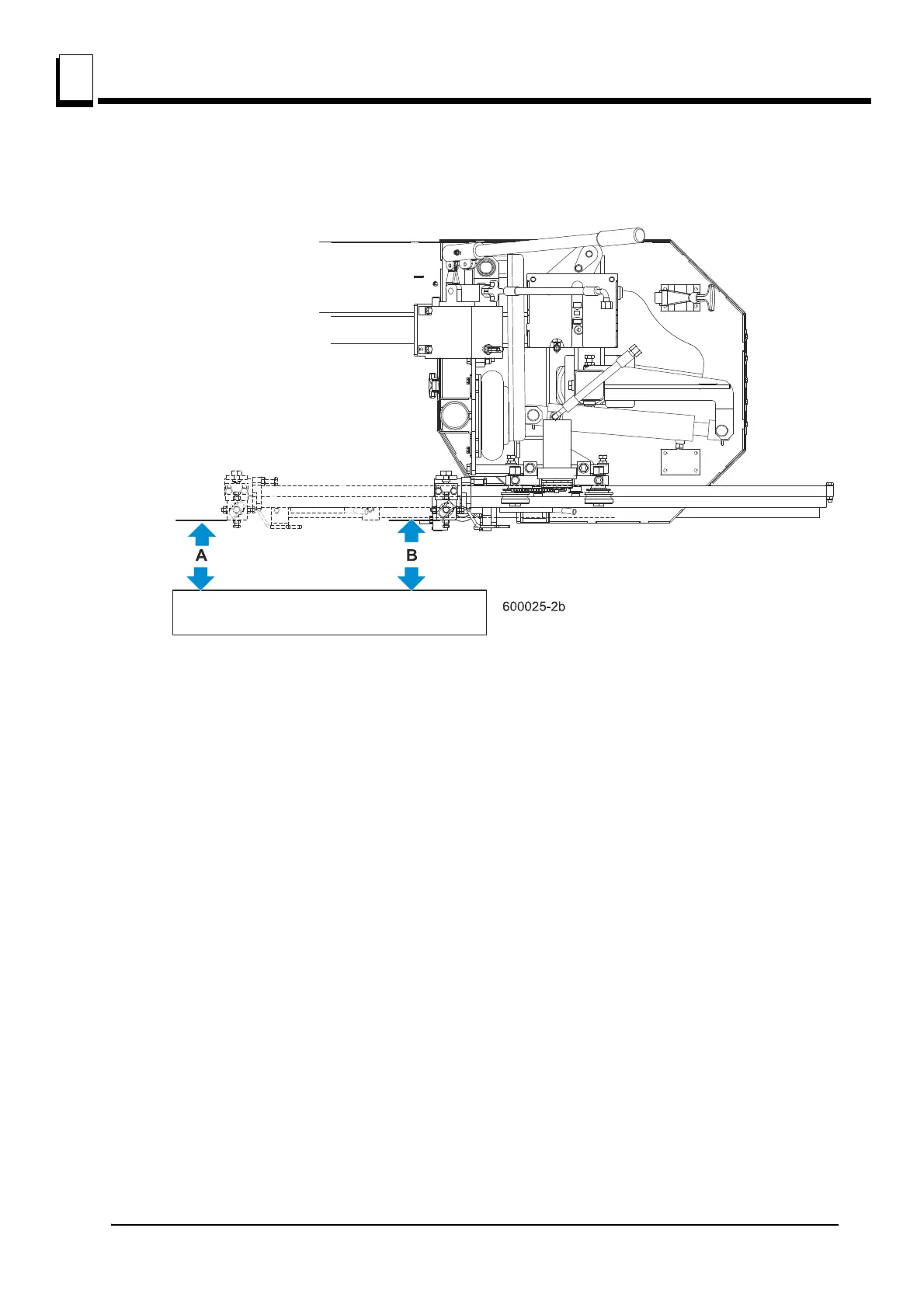

FIG. 7-32
Measure from blade
guide arm to bed rail
with arm open and closed
