Sawmill Alignment
Complete Alignment Procedure
Sawmill Alignment 60HDdoc102619 7-31
7
See Figure 7-31. Loosen the horizontal adjustment bolt jam nuts. To tilt the arm in toward the blade,
loosen the rear bolt and tighten the front bolt. To tilt the arm out away from the blade, loosen the front
bolt and tighten the rear bolt. Retighten the jam nuts and recheck the blade guide arm horizontal tilt.
5. Now check the vertical tilt of the blade guide arm. Move the saw carriage so the blade guide arm is
positioned over a bed rail.
6. With the arm 1/2" (15 mm) from fully closed, raise or lower the saw head until the bottom of the blade
guide block is 15" (375 mm) from the top of the bed rail.

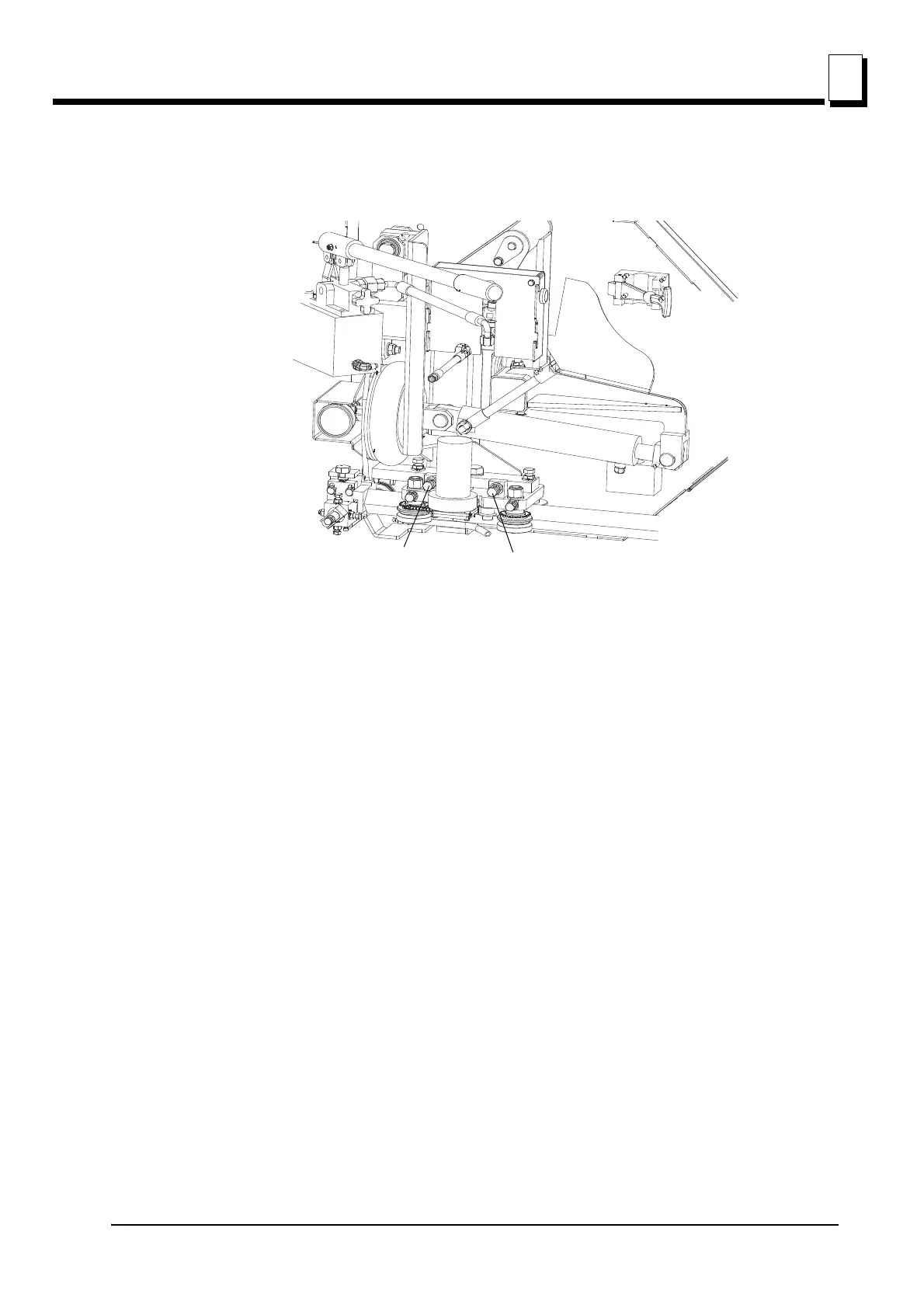

FIG. 7-31
Left Horizontal
Adjustment Bolt
Right Horizontal
Adjustment Bolt
To Next Page
