Sawmill Alignment
Complete Alignment Procedure
7
7-30 60HDdoc102619 Sawmill Alignment
See Figure 7-30.
4. Adjust the blade guide arm to 1/2" (15 mm) from fully open and remeasure the distance from the
roller flange to the back of the blade. The two measurements should be the same. If not, adjust the
outer rollers in or out to tilt the arm horizontally.

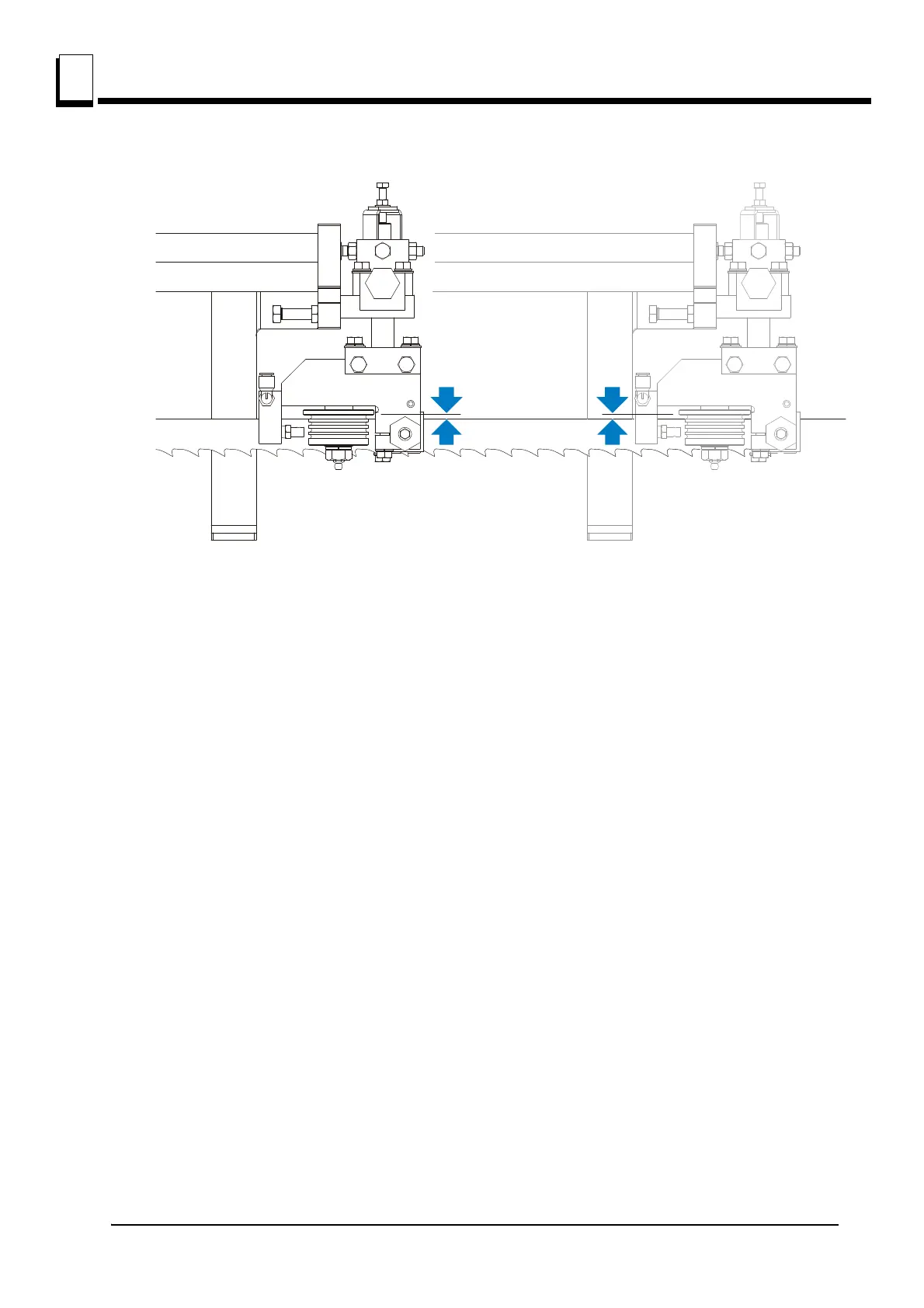

FIG. 7-30
Measure distance between
roller flange and blade with
arm open and closed
600122-17
Measure distance between
roller flange and blade with
arm open and closed
