1. Overview

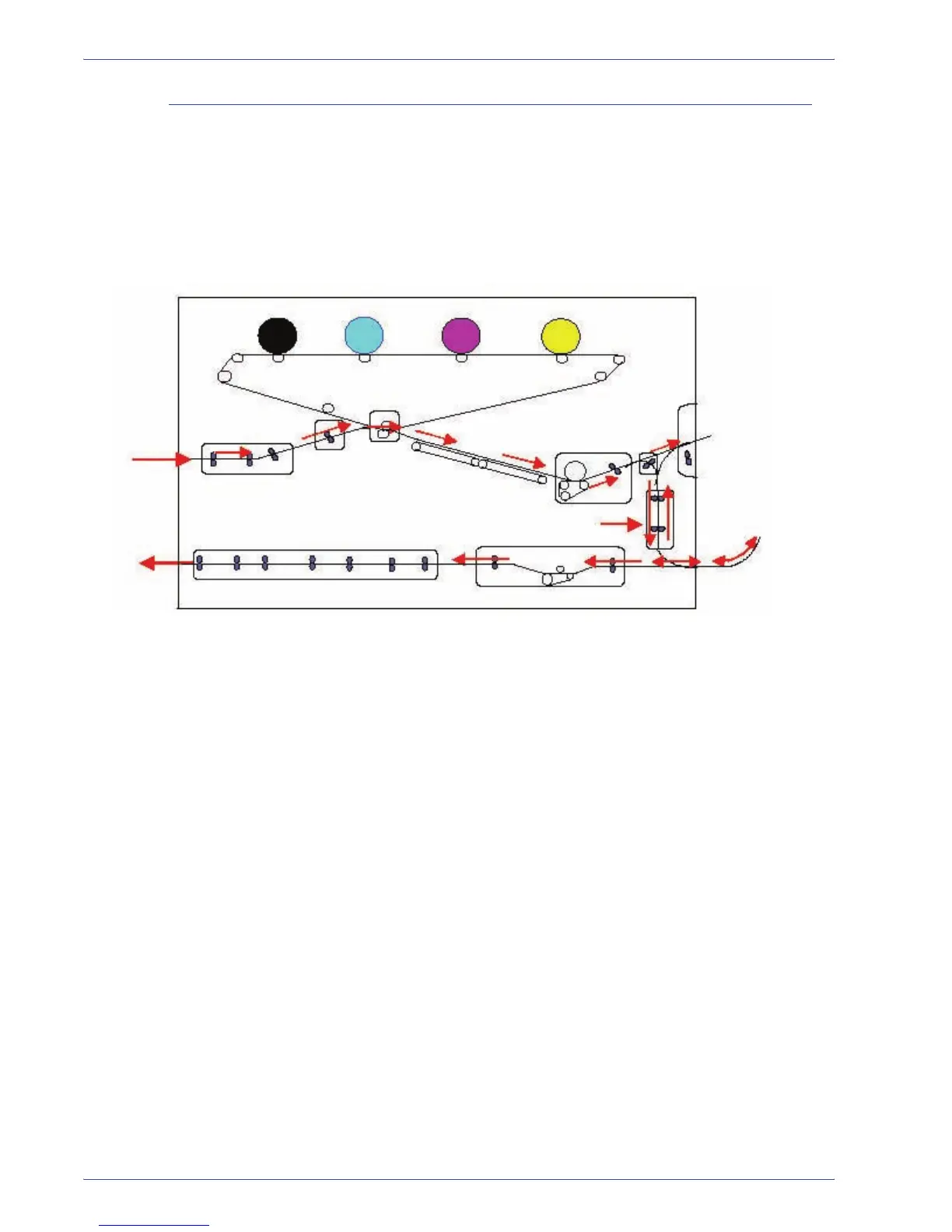

Paper path in the digital press
The paper path transfers an image to the paper and fuses it for
both the simplex and duplex selections. It has two areas, the
upper paper path and the lower paper path. The upper path is
used for both simplexing and duplexing. The lower path is used
for duplexing only. The Horizontal Transport 1 decurls the paper
when printing duplex.
From the
Transport
Module
To the
Transport
Module
Alignment
Transport
Vacuum
Transport
Inverter Transport
Inverter
Gate
Fuser Transport
Horizontal Transport 2
Horizontal Transport 1
To the Exit
Module
From the
Duplex Inverte
r
Transport
