DocuColor 5000 User Guide
4-9
4. Accessories
Identifying the parts

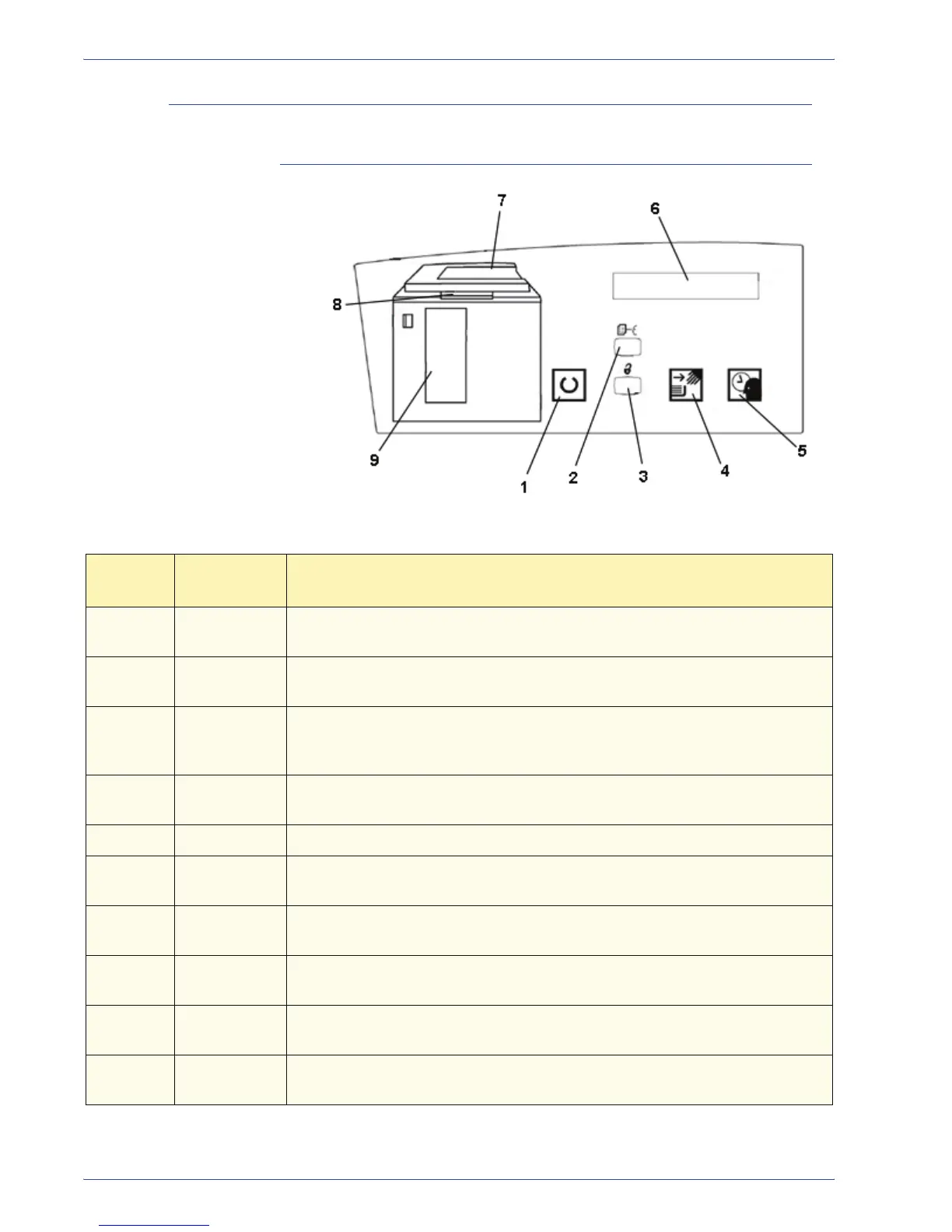

Control panel
Item
Number
Name Function
1 Ready light The Ready light blinks during initialization and is constant when the HCS is in
use or in standby mode.
2 Sample set
button
Press to have the HCS deliver the next collated set to the top tray.
3 Unload
button
Press once to lower the Stacker Tray and unlock the front door. If pressed
while running a job, all sheets in the paper path are delivered before the
Stacker Tray starts to lower.
4 Unload light Illuminates when the Stacker Tray has reached the down position and the
front door can be opened.
5 Wait light Blinks when the Stacker Tray is moving up or down.
6 Fault code
display
Displays a code when a fault occurs in the stacker. Refer to the HCS fault
code table located in the Problem Solving section of this chapter.
7 Top tray jam
area
Blinks when there is a jam.
8 Bypass jam
area
Blinks when there is a jam.
9 Stacker tray
jam area
Blinks when there is a jam or the door is open.
Not
applicable
Keypad
(not shown)
Used by the service representative for diagnostics. The keypad is located on
the front right of the control panel.
