Chapter 3: MicroBlaze Signal Interface Description
Generic Read Operations
X-Ref Target - Figure 3-6

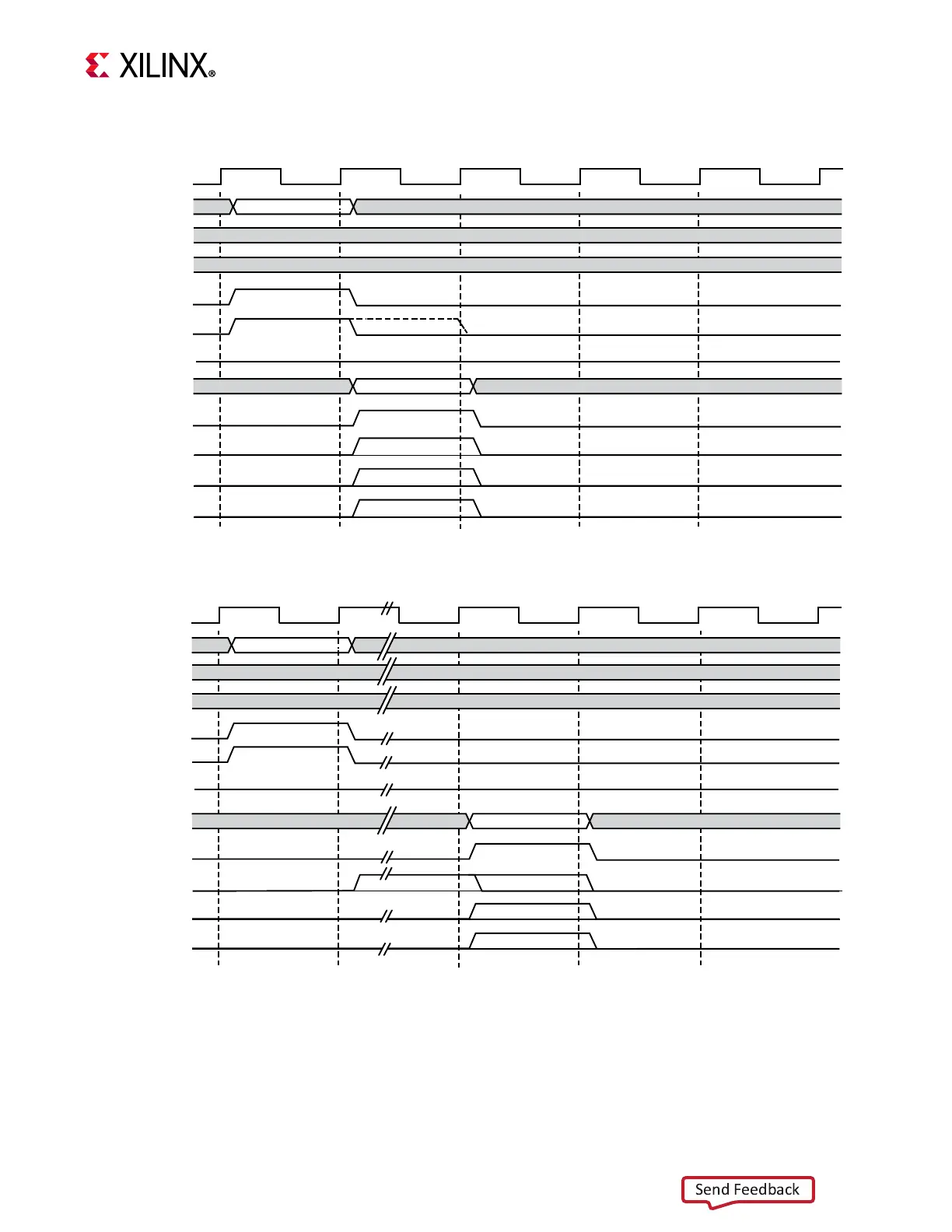

Figure 3-6: LMB Generic Read Operation, 0 Wait States
A0
D0
Don’t Care
Clk
Addr
Byte_Enable
Data_Write
AS
Read_Strobe
Wirte_Strobe
Data_Read
Ready
Wait
CE
UE
X19790-091217
X-Ref Target - Figure 3-7
Figure 3-7: LMB Generic Read Operation, N Wait States
A0
D0
Don’t Care
Clk
Addr
Byte_Enable
Data_Write
AS
Read_Strobe
Wirte_Strobe
Data_Read
Ready
Wait
CE
UE
X19791-091217
