Yamaha F100A - Page 156

5-6
E
POWR
POWER UNIT

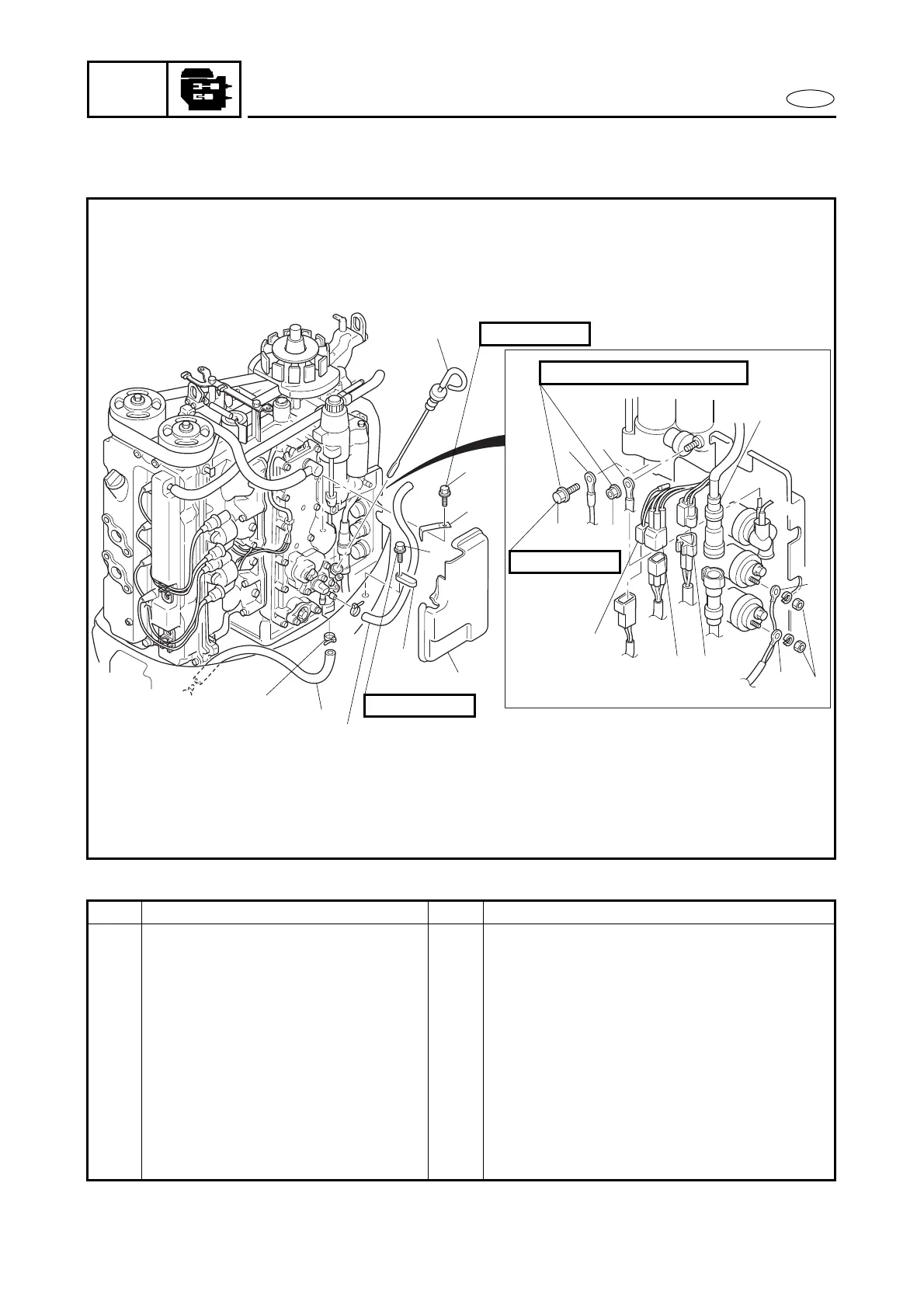

EXPLODED DIAGRAM
9 Nm (0.9 m
•
kg, 6.5 ft
•
Ib)
4
12
14
7
11
13
9
810
15
17
16
6
5
2
3
19
18
20
1
6 × 25 mm
8 × 16 mm
6 × 25 mm
REMOVAL AND INSTALLATION CHART
Step Procedure/Part name Q’ty Service points
LEAD DISCONNECTION Follow the left “Step” for removal.
Fuel pumps Refer to “FUEL PUMPS” in chapter 4.
1 Junction box cover 1
2 Bolt 2
3 Clamp plate 2
4 Bolt 1
5 Metal clamp 1
6 Oil level dipstick 1
7 Wire harness coupler 1 For the remote control box.
8 Tachometer coupler 1
9 Trim meter coupler 1
