Yamaha F100A - Page 178

5-17
E
POWR
CDI UNIT AND RELAYS

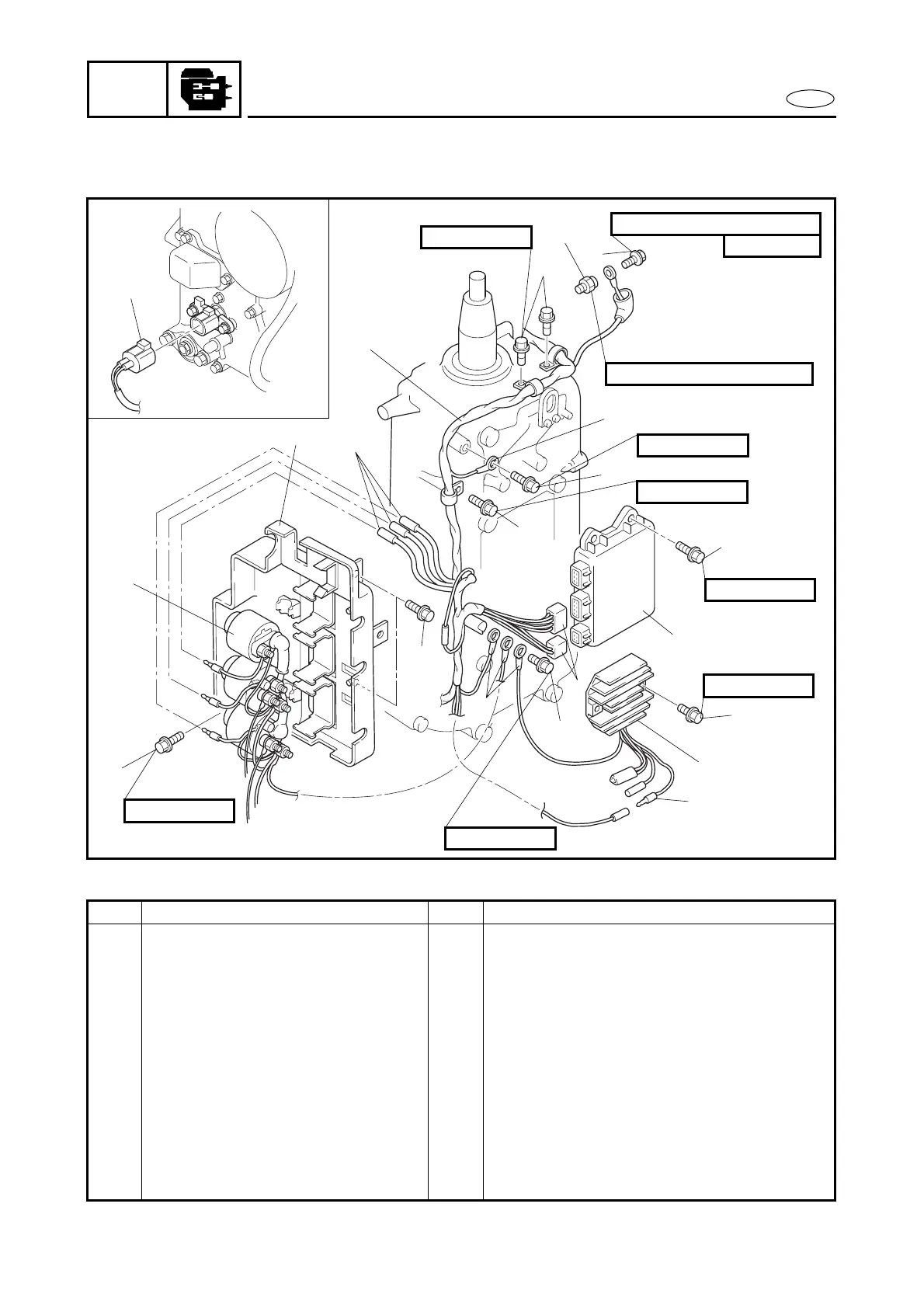

EXPLODED DIAGRAM
8 Nm (0.8 m
•
kg, 5.8 ft
•
Ib)
2 Nm (0.2 m
•
kg, 1.4 ft
•
Ib)
A
A
19
11
10
18
9
2
3
7
8
4
5
6
1
16
12
17
15
14
13
12
6 × 16 mm
6 × 20 mm
6 × 25 mm
6 × 28 mm
4 × 8 mm
6 × 12 mm
6 × 12 mm
6 × 12 mm
18
Step Procedure/Part name Q’ty Service points
10 Relay assy. 1
11 Water temperature sensor
coupler
1
12 Bolt 3
13 Bolt 1
14 Ground lead 1
15 Screw 1
16 Wire harness 1
17 Oil pressure switch 1
18 Bolt 3
19 Cover assy. 1
Reverse the removal steps for installation.
