Yamaha F100A - Page 318

7-7
E
BRKT
UPPER CASE ASSY.

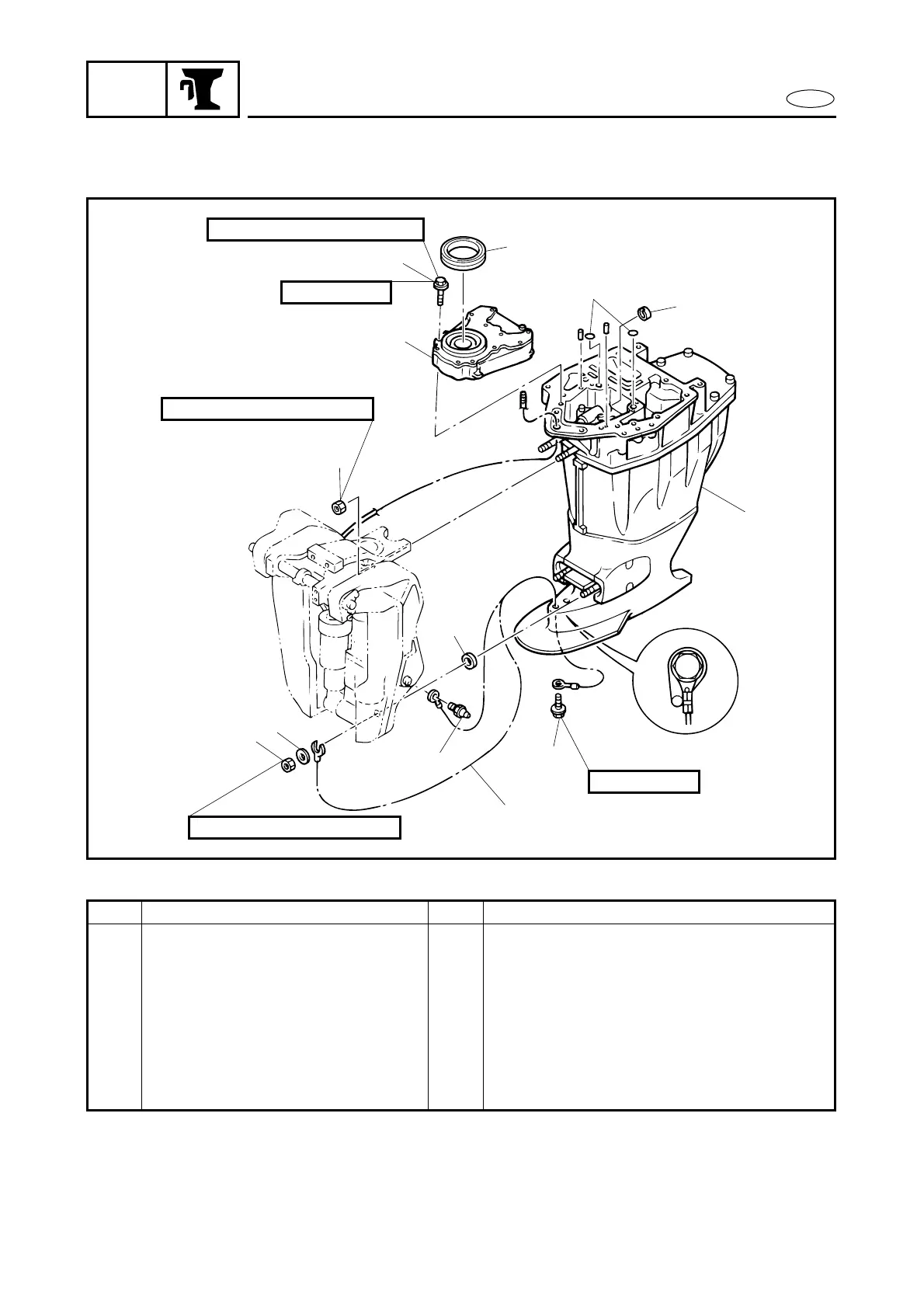

EXPLODED DIAGRAM
1
2
4
3
8
9
10
12
5
6
13
6 × 45 mm
8 × 16 mm
52 Nm (5.2 m
•
kg, 38 ft
•
Ib)
52 Nm (5.2 m
•
kg, 38 ft
•
Ib)
10 Nm (1.0 m
•
kg, 7.2 ft
•
Ib)
11
7
Step Procedure/Part name Q’ty Service points
7 Damper 2
8 Nut 2
9 Nut 2
10 Washer 2
11 Ground lead 1
12 Washer 2
13 Upper case assy. 1
Reverse the removal steps for installation.
