Yamaha F100A - Page 342

7-19
E
BRKT

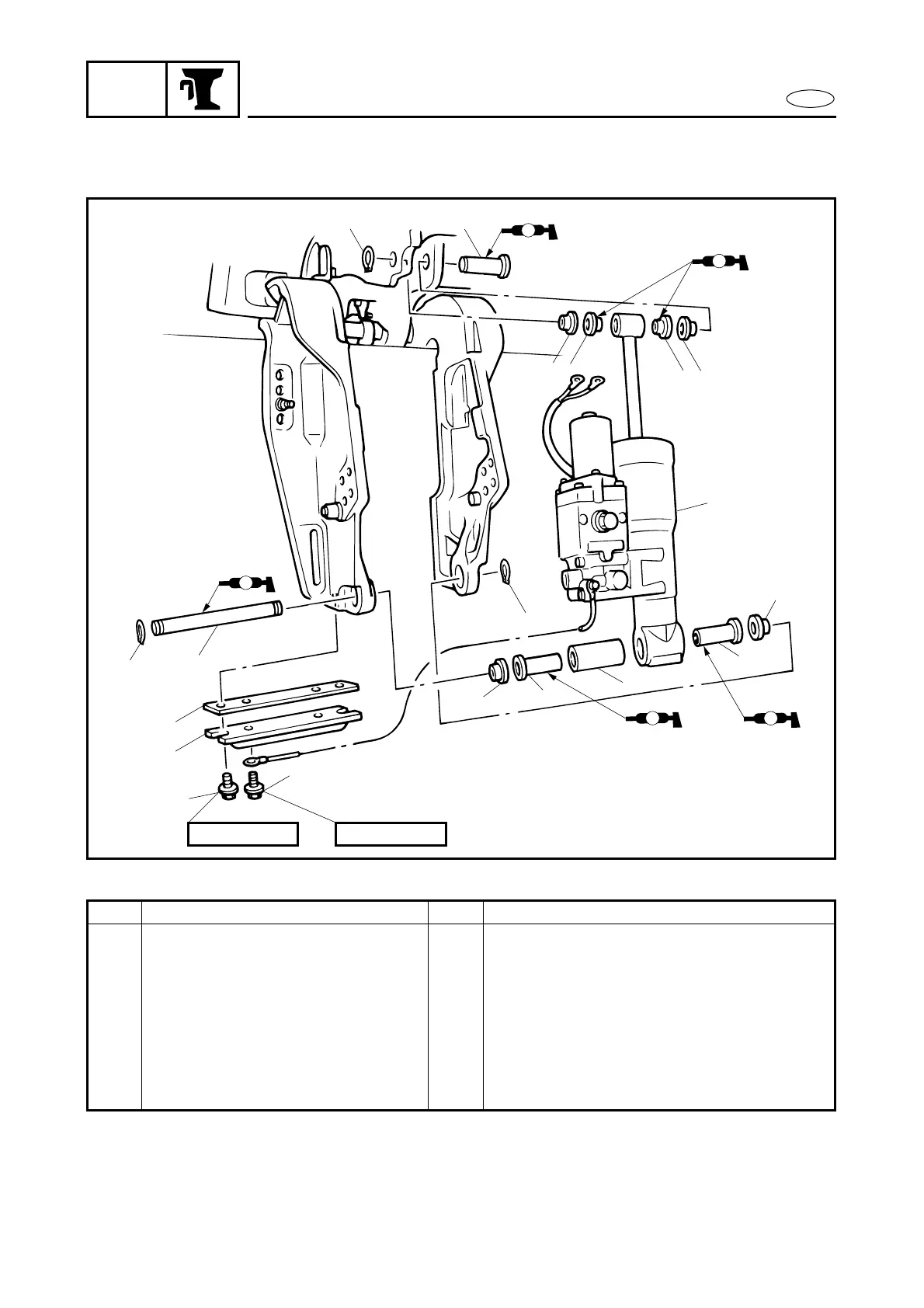

POWER TRIM AND TILT (PTT) UNIT
EXPLODED DIAGRAM
1
2
3
3
4
4
5
5
14
11
6
7
7
8
8
9
12
A
A
A
A
A
6 × 16 mm
13
10
6 × 14 mm
Step Procedure/Part name Q’ty Service points
8 Bushing 2
9 Spacer 1
10 Bolt 2
11 Anode 1
12 Power trim and tilt (PTT) unit 1
13 Bolt 2
14 Plate 1
Reverse the removal steps for installation.
