7-31
E
BRKT

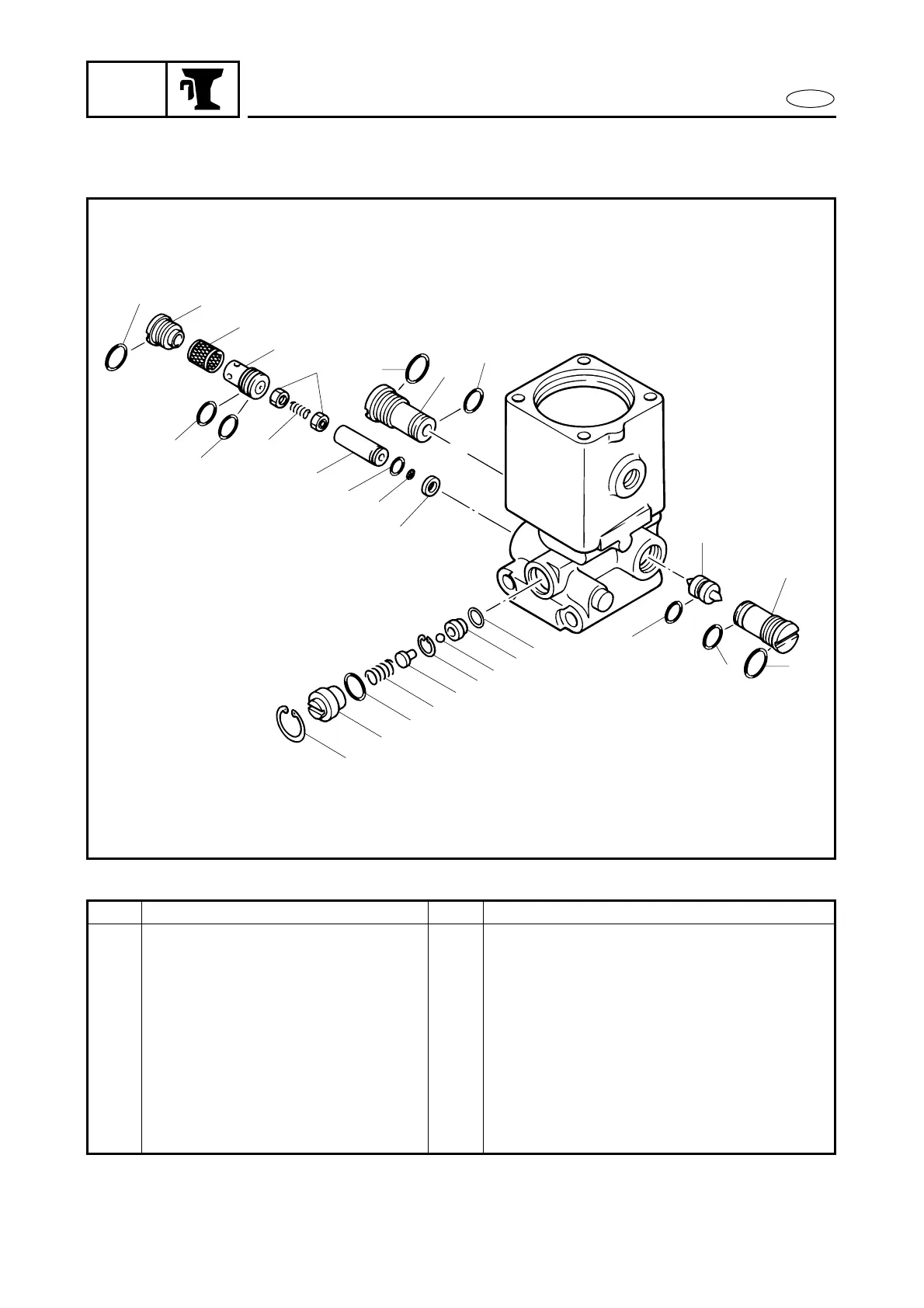

PUMP HOUSING
EXPLODED DIAGRAM
1
2
3
4
6
5
7
8
9
10
11
12
13
14
16
17
18
19
20
21
22
22
23
23
24
24
25
26
15
Step Procedure/Part name Q’ty Service points
19 O-ring 1
20 Filter 1
21 O-ring 1
22 Main valve assy. 2
23 O-ring 2
24 O-ring 2
25 Shuttle piston 1
26 O-ring 1
Reverse the disassembly steps for
installation.
