2 - 8
SPEC
ENGINE SPECIFICATIONS
Kickstarter
Kickstarter type Ratchet type ----
Kickstarter pinion gear clip friction
force
1.0 ~ 3.5 N (0.10 ~ 0.36 kgf, 0.22 ~ 0.79 lb) ----
Air filter
Air filter element Dry element ----
Carburetor
Type (manufacturer)/quantity NCV24 (KEIHIN)/1 ----
I.D. mark 5TL1 00 ----
Main jet (M.J) #110 ----
Main air jet (M.A.J) ø1.0 ----
Jet needle (J.N) N425-DUA00 ----
Needle jet (N.J) N426-62A45 ----
Pilot air jet 1 (P.A.J.1) #110 ----
Pilot air jet 2 (P.A.J.2) #100 ----
Pilot outlet (P.O) ø1.0 ----
Pilot jet (P.J) #38 ----
Bypass 1 (B.P.1) ø0.7 ----
Bypass 2 (B.P.2) ø0.7 ----
Bypass 3 (B.P.3) ø0.7 ----
Bypass 4 (B.P.4) ø0.7 ----
Pilot screw turns out 2-3/8 ----
Valve seat size (V.S) ø1.6 ----
Starter jet 1 (G.S.1) #40 ----
Throttle cable free play 3 ~ 7 mm (0.12 ~ 0.28 in) ----
Model AL115

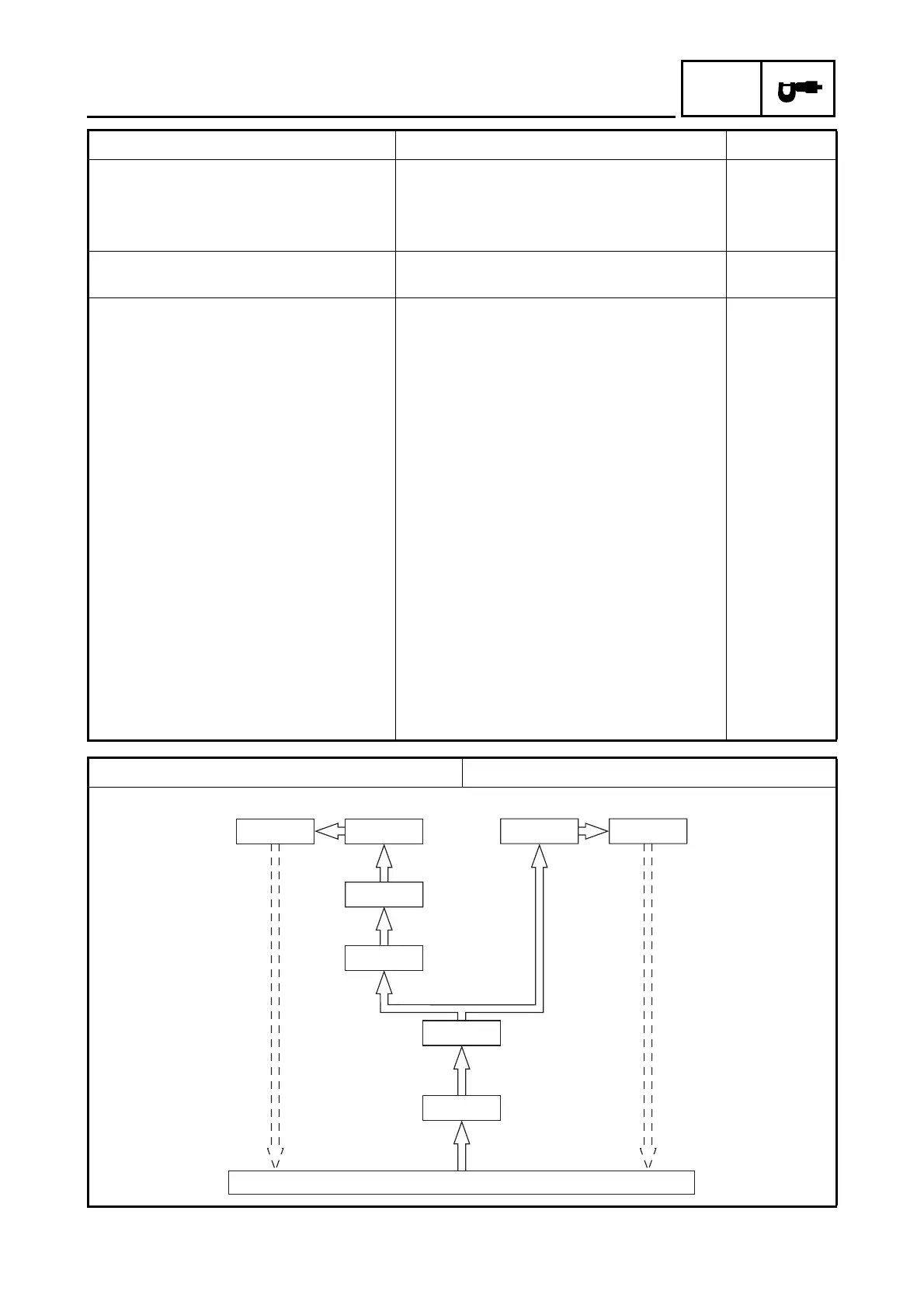

Lubrication chart
Item Standard Limit
OIL PUMP
OIL STRAINER
OIL PAN
CYLINDER HEAD
CONNECTING
ROD BIG END
PISTON
CRANKSHAFT
CAMSHAFT
OIL RING
