3 - 11
CHK
ADJ

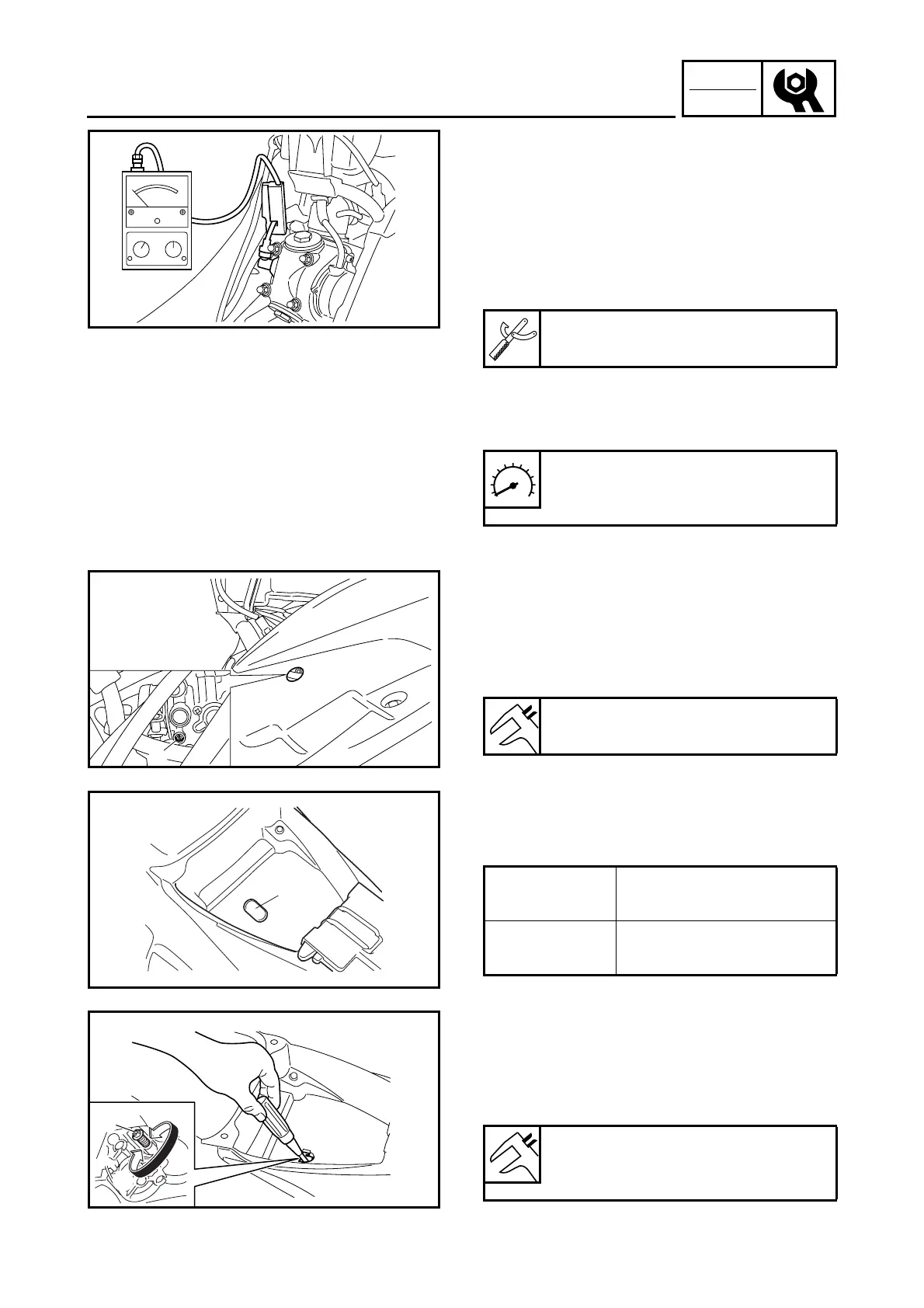

ADJUSTING THE ENGINE IDLING SPEED
2. Remove:
• seat
• center cover
Refer to “REMOVING THE SEAT AND
SIDE COVERS”.
3. Connect:
• engine tachometer
(onto the spark plug lead)
4. Check:
• engine idling speed
Out of specification → Adjust.
5. Adjust:
• engine idling speed
▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼
a. Turn the pilot screw 1 in or out until it is
lightly seated.
b. Turn the pilot screw out the specified num-
ber of turns.
c. Remove the rubber cap 2.
d. Turn the throttle stop screw 3 in direction
a or b until the specified engine idling
speed is obtained.
e. Install the rubber cap.
▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
6. Adjust:
• throttle cable free play
Refer to “ADJUSTING THE THROTTLE
CABLE FREE PLAY”.
Engine tachometer
90890-03113
Engine idling speed (with head-
light on)
1,400 ~ 1,600 r/min
Pilot screw setting
2-3/8 turns out
Direction
a
Engine idling speed is
increased.
Direction
b
Engine idling speed is
decreased.
Throttle cable free play (at the
flange of the throttle grip)
3 ~ 7 mm (0.12 ~ 0.28 in)
1
2
b
a
3
