Yamaha Scorpio - Page 38

2 - 21
SPEC
Î
To fuel tank
Ï
Clamp the throttle cable and clutch cable. Turn the clamp end to inside of motorcycle.
Ð
Clamp the throttle cable and clutch cable.
Ñ
Insert the air vent hose into the frame.
Ò
Clamp the wire harness and turn the clamp end to inside of motorcycle.
Ó
Clamp the magneto lead and pick-up coil lead and push the leads into holder.
F
G
H
0
A
B
C
D
E
1
2
3
4
5
6
7
8
9
Ë
Ì
Í
Î
Ð
Ï
Ò
Ó
Ñ
È
É
Ê

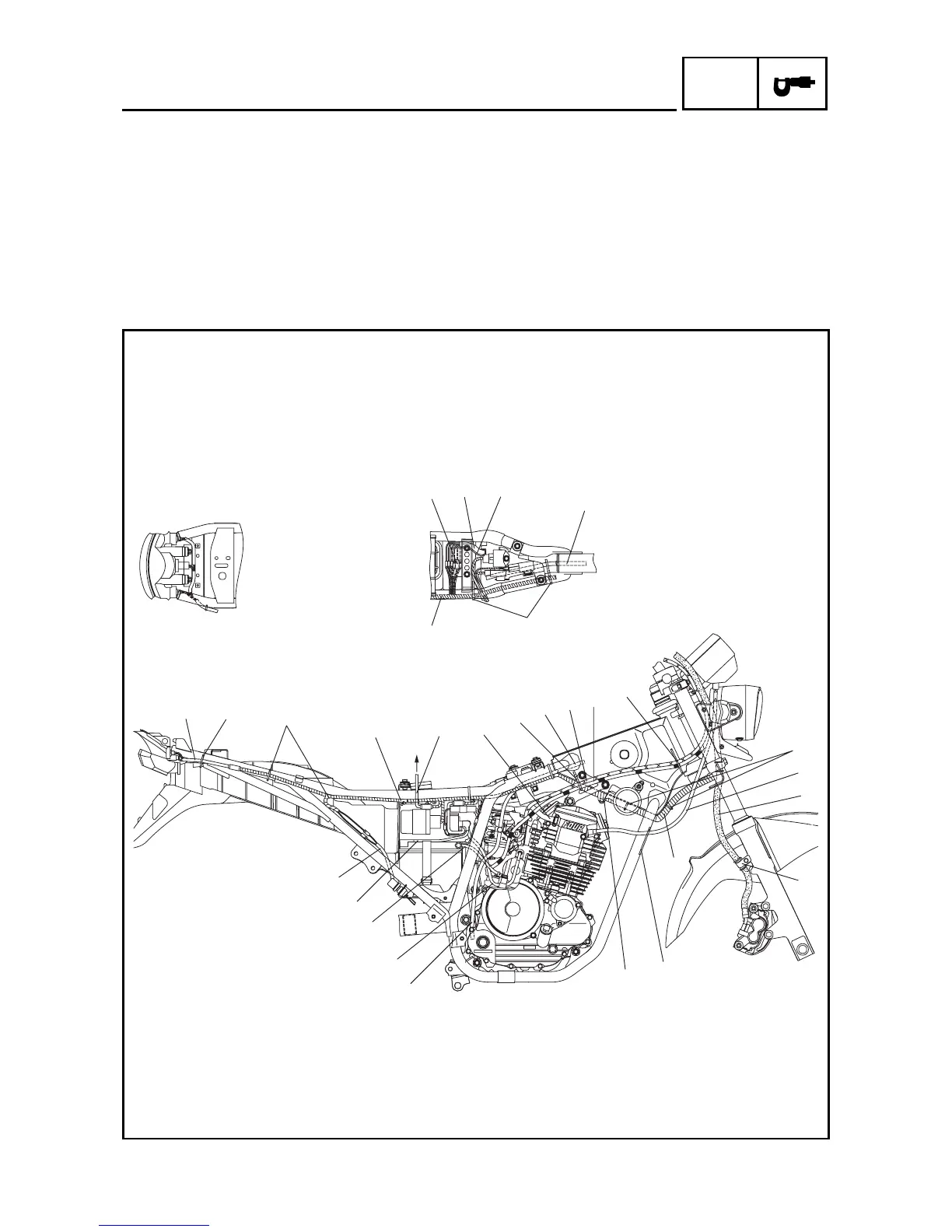

CABLE ROUTING
