2 - 22
SPEC
1
Clutch cable
2
Breather hose
3
Fuel tank over flow hose
4
Magneto lead
5
Battery breather hose
6
Carburetor over flow hose
7
Fuel tank over flow hose
8
Speedometer cable
9
Wire harness
0
Pick-up coil lead
A
Magneto lead
B
Fuel tank over flow hose
È
Install the horn lead (long side)
to the left side of the horn
É
Clamp the battery breather
hose, carburetor over flow
hose and fuel tank over flow
hose.
Ê
Pass the speedometer cable
through the holder
Ë
Clamp the magneto lead and
pick-up coil lead.
Ì
Clamp the battery breather
hose.
A
A
0
A
B
E
D
C
1
2
3
4
5
6
7
8
9
È
É
Ê
Ë
Ë
Ì

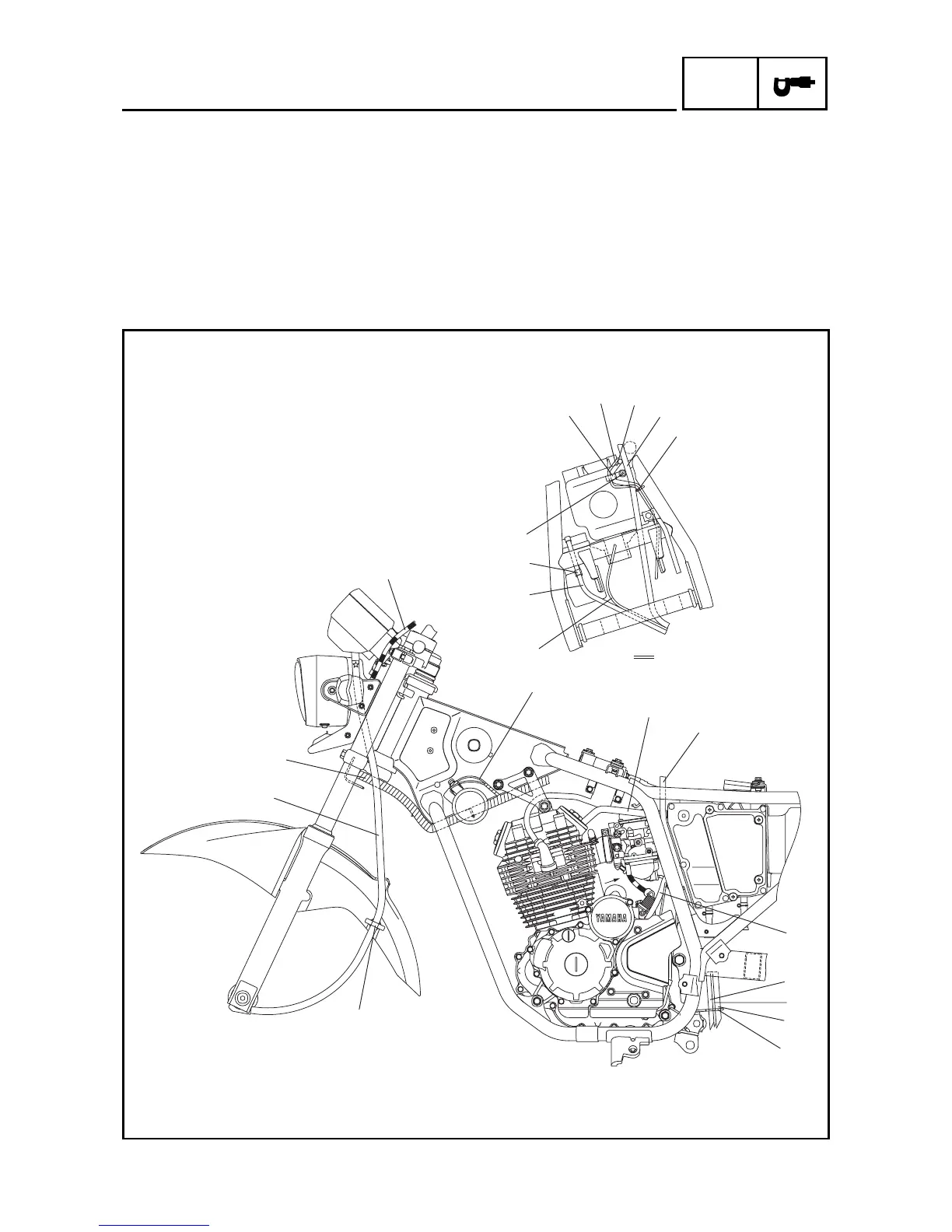

CABLE ROUTING
