Yamaha Scorpio - Page 48

3 - 6
INSP
ADJ

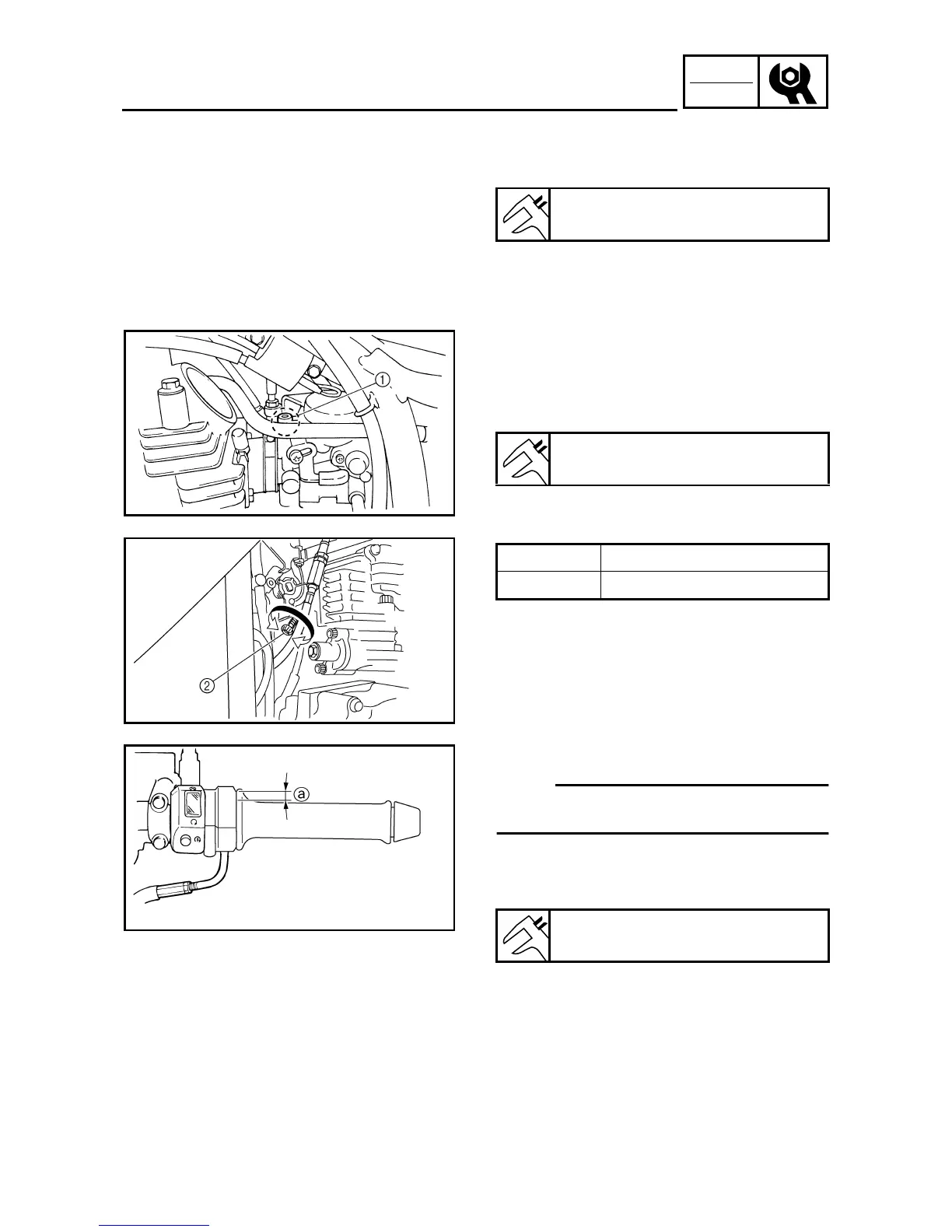

IDLING SPEED ADJUSTMENT/
THROTTLE CABLE ADJUSTMENT
3.Check:
●
Engine idling speed
Out of specification
→
Adjust.
4.Adjust:
●
Engine idle speed
*****************************************************
Adjustment steps:
●
Turn the pilot screw
1
until it is lightly
seated.
●
Turn the pilot screw out by the specified
number of turns.
●
Turn the throttle stop screw
2
in or out until
the specified idling speed is obtained.
*****************************************************
5.Adjust:
●
Throttle cable free play
Refer to the “THROTTLE CABLE ADJUST-
MENT” section.
Engine idling speed:
1,350 ~ 1,450 r/min.
Pilot screw:
3 turns out
Turning in Idling speed is increased.
Turning out Idling speed is decreased.
THROTTLE CABLE ADJUSTMENT
N
OTE:
Prior to adjusting the throttle cable free play,
the engine idling speed should be adjusted.
1.Check:
●
Throttle cable free play
a
Out of specification
→
Adjust.
Free play (throttle cable):
3 ~ 5 mm at throttle grip flange
