YASKAWA G7 Series User Manual

Confirmations upon Delivery
1-3
Confirmations upon Delivery
 Checks
Check the following items as soon as the Drive is delivered.
If you find any irregularities in the above items, contact the agency from which you purchased the Drive or
your Yaskawa representative immediately.
 Nameplate Information
There is a nameplate attached to the side of each Drive. The nameplate shows the model number, specifica-
tions, lot number, serial number, and other information on the Drive.
 Example Nameplate
The following nameplate is an example for a standard Drive: 3-phase, 200-240Vac, 0.4kW, IEC IP20 and
NEMA 1 standards.

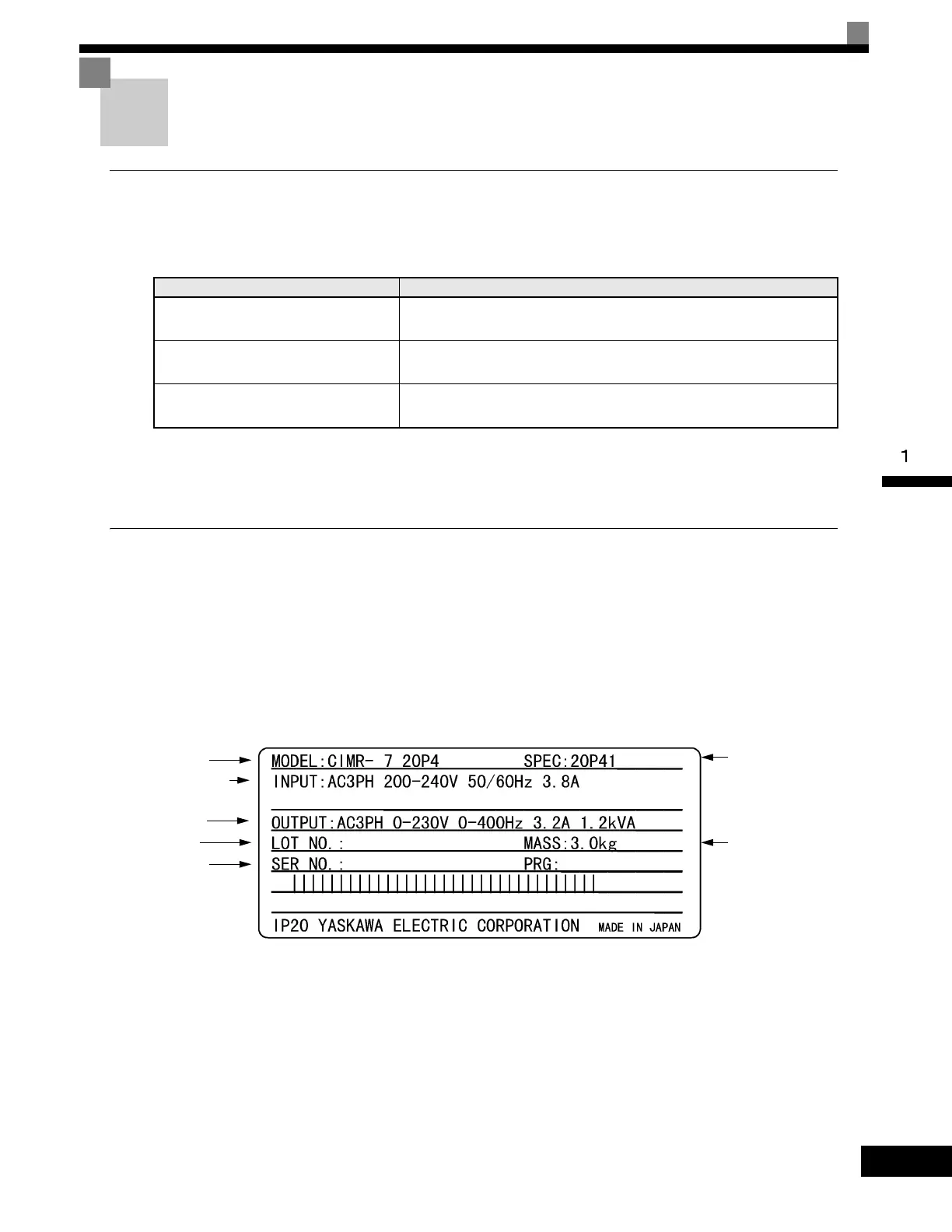

Fig 1.1 Nameplate
Table 1.2 Checks
Item Method
Has the correct model of Drive been
delivered?
Check the model number on the nameplate on the side of the Drive.
Is the Drive damaged in any way?
Inspect the entire exterior of the Drive to see if there are any scratches or
other damage resulting from shipping.
Are any screws or other components
loose?
Use a screwdriver or other tools to check for tightness.
Drive model
Input specifications
Output
specifications
Lot number
Serial number
Input specifications
Drive
specifications
Mass
GU
