Drive Mode Indicators
3-13
Verify Mode
Verify mode is used to display any parameters that have been changed from their default settings in a
programming mode or by autotuning. “None” will be displayed if no settings have been changed.
Of the environment mode settings, only A1-02 will be displayed if it has been changed. Other environment
modes settings will not be displayed even if they have been changed from their default settings.
Even in verify mode, the same procedures can be used to change settings as are used in the programming
modes. Use the Increment, Decrement, and Shift/RESET Keys to change the frequency. The user parameter
will be written and the monitor display will be returned to when the DATA/ENTER Key is pressed after
changing the setting.
Example Operations
An example of key operations is given below for when the following settings have been changed from their
default settings: b1-01 (Reference Selection), C1-01 (Acceleration Time 1), E1-01 (Input Voltage Setting), and
E2-01 (Motor Rated Current).

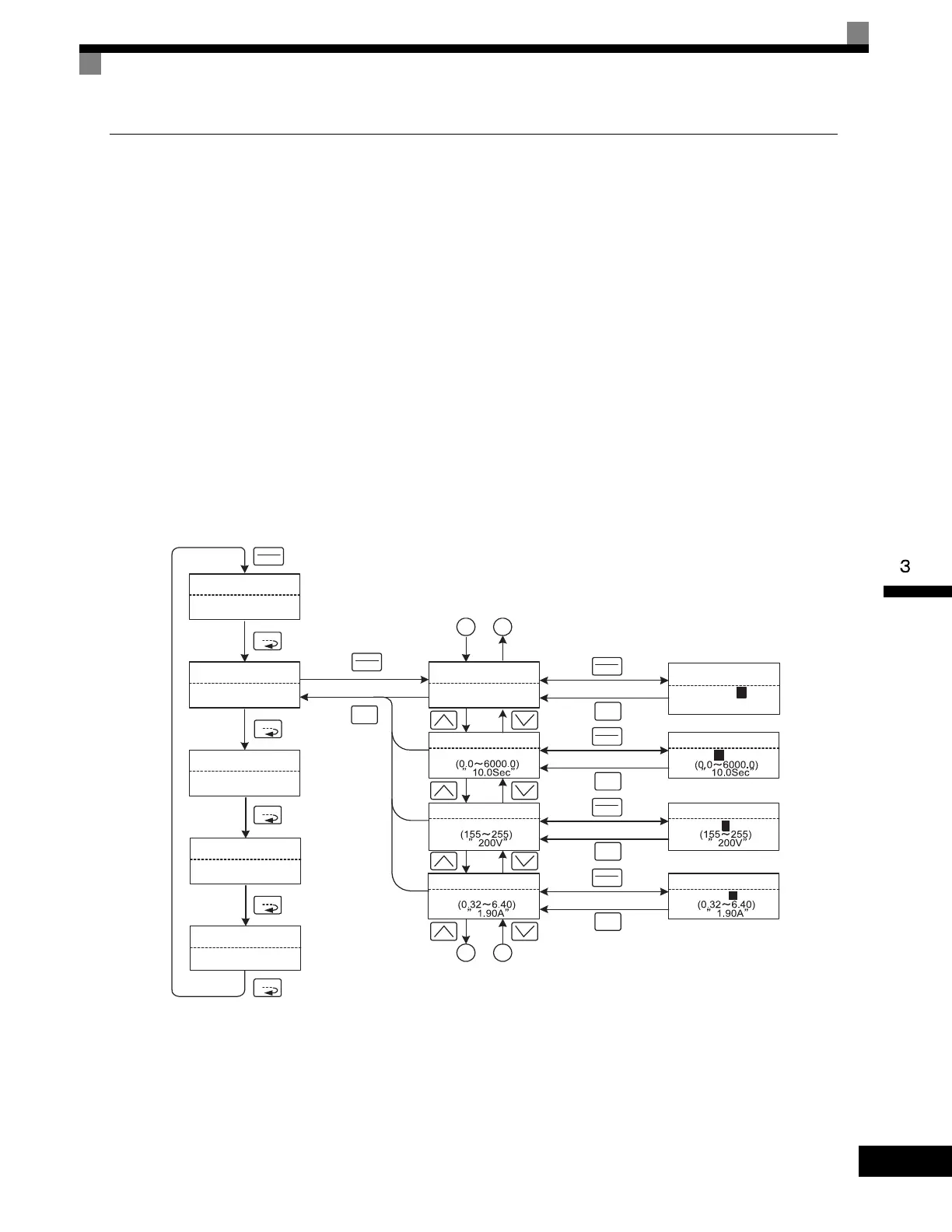

Fig 3.6 Operations in Verify Mode
** Main Menu **
-DRIVE-
Operation
** Main Menu **
-QUICK-
Quick Setting
** Main Menu **
-ADV-
Programming
** Main Menu **
-VERIFY-
Modified Consts
** Main Menu **
-A.TUNE-
Auto-Tuning
MENU
MENU
MENU
MENU
MENU
Monitor Display Setting DisplayMode Selection Display
DATA
ENTER
Reference Source
-VERIFY-
b1-01=0
*0*
Terminals
ESC
DATA
ENTER
Accel Time 1
-VERIFY-
C1-01=200.0Sec
A B
A B
Reference Source
-VERIFY-
b1-01= 0
*0*
Terminals
DATA
ENTER
ESC
DATA
ENTER
ESC
DATA
ENTER
ESC
Input Voltage
-VERIFY-
E1-01=200VAC
Motor Rated FLA
-VERIFY-
E2-01=2.00A
Motor Rated FLA
-VERIFY-
E2-01= 2.00A
Input Voltage
-VERIFY-
E1-01= 200VAC
Accel Time 1
-VERIFY-
C1-01=0200.0Sec
DATA
ENTER
ESC
"1"
"1"
