YASKAWA G7 Series User Manual

Exterior and Mounting Dimensions
1-7
Exterior and Mounting Dimensions

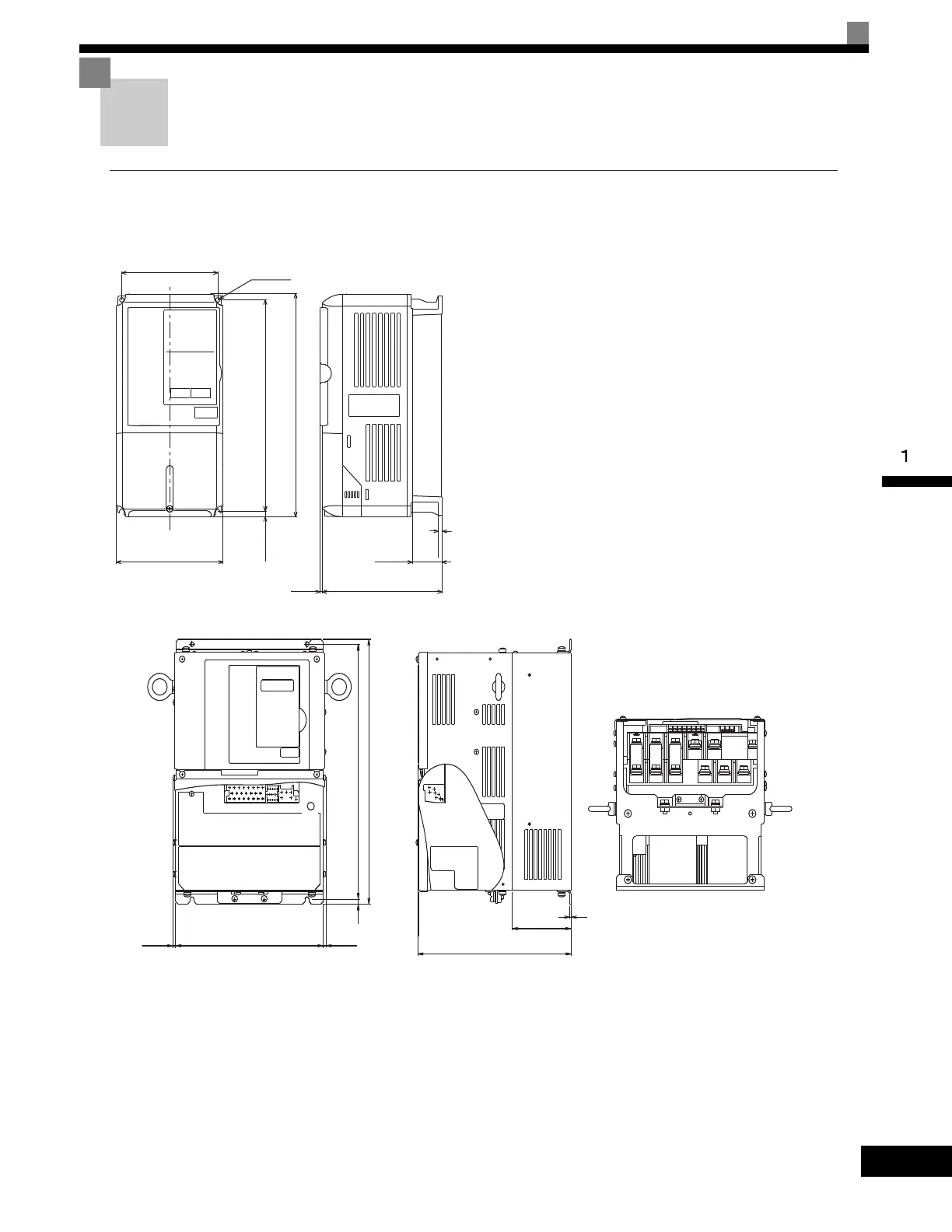

 Open Chassis Drives (IP00)
Exterior diagrams of the Open Chassis Drives are shown below.
W
W1
3
H1H2
D
H
D1
4-d
t1
Models CIMR-G7U20P4 thru 2015 and 40P4 thru 4015
D
D1
H1
H
(5)
∗
(5)
∗
H2
W
CHARGE
t1
Front View Side View Bottom View
Models CIMR-G7U2018 thru 2110 and 4018 thru 4160
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

YASKAWA G7 Series Specifications

General

Series	G7
Frequency	50/60 Hz
Output Voltage	Matches Input Voltage
Control Method	V/f Control
Overload Capacity	150% for 60 seconds
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit
Communication	RS-485, Modbus, DeviceNet, Profibus, Ethernet
Safety	Safe Torque Off (STO)
Operating Temperature	-10°C to 50°C
Humidity	5% to 95% (non-condensing)
Cooling Method	Fan Cooled
Enclosure Rating	IP20
Storage Temperature	-20°C to 65°C
