Digital Operator
3-3
îš‹ Digital Operator Keys
The names and functions of the Digital Operator Keys are described in Table 3.1.
Note Except in diagrams, Keys are referred to using the Key names listed in the above table.

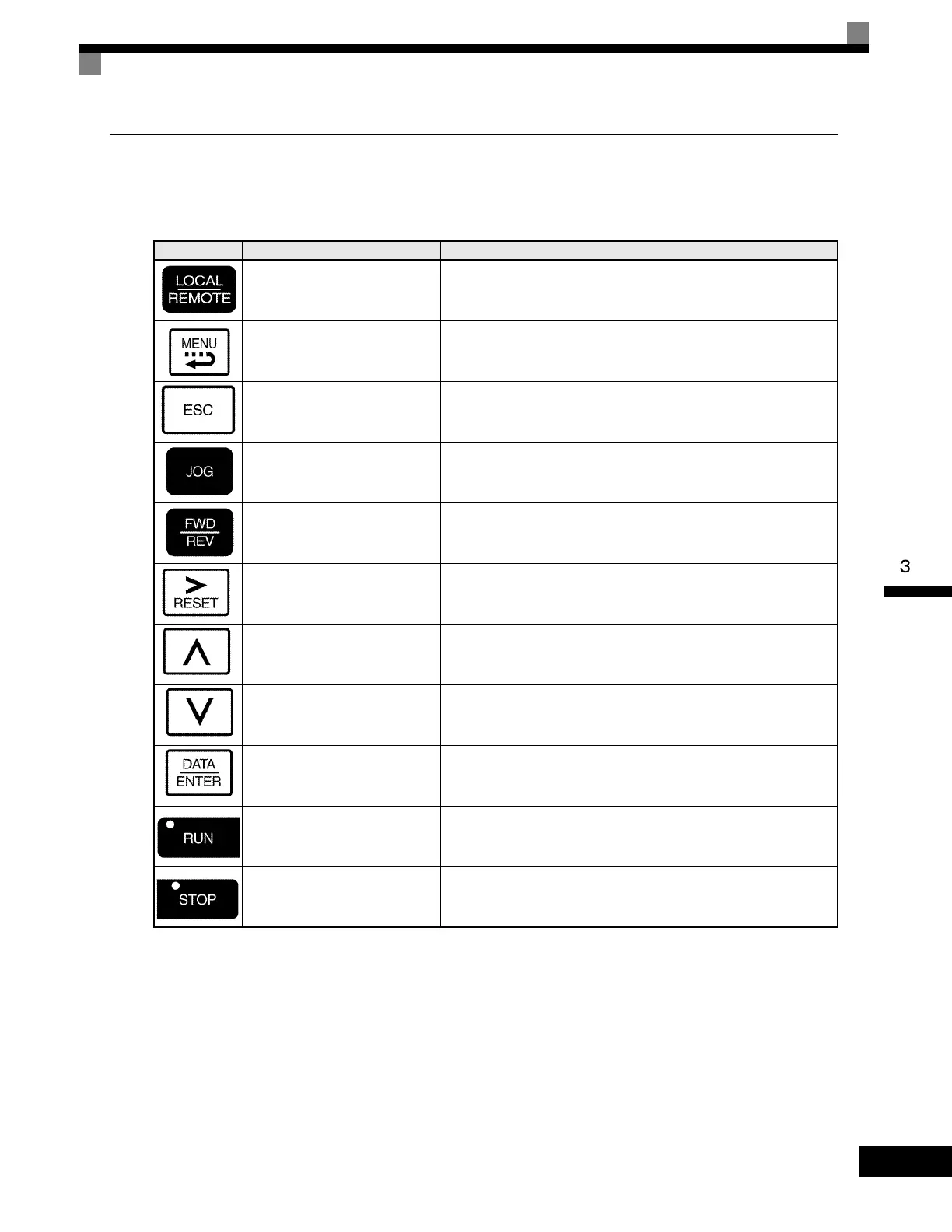

Table 3.1 Key Functions
Key Name Function
LOCAL/REMOTE Key
Switches between operation via the Digital Operator (LOCAL) and
control circuit terminal operation (REMOTE).
This Key can be enabled or disabled by setting user parameter o2-01.
MENU Key Selects menu items (modes).
ESC Key Returns to the status before the DATA/ENTER Key was pressed.
JOG Key
Enables jog operation when the Drive is being operated from the Dig-
ital Operator.
FWD/REV Key
Selects the rotation direction of the motor when the Drive is being
operated from the Digital Operator.
Shift/RESET Key
Sets the number of digits for user parameter settings.
Also acts as the Reset Key when a fault has occurred.
Increment Key
Selects menu items, sets user parameter numbers, and increments set
values.
Used to move to the next item or data.
Decrement Key
Selects menu items, sets user parameter numbers, and decrements set
values.
Used to move to the previous item or data.
DATA/ENTER Key
Pressed to enter menu items, user parameters, and set values.
Also used to switch from one display to another.
RUN Key
Starts the Drive operation when the Drive is being controlled by the
Digital Operator.
STOP Key
Stops Drive operation.
This Key can be enabled or disabled when operating from the control
circuit terminal by setting user parameter o2-02.
