Confirmations upon Delivery
1-5
 Component Names
 Models CIMR-G7U20P4 thru 2015 and 40P4 thru 4015

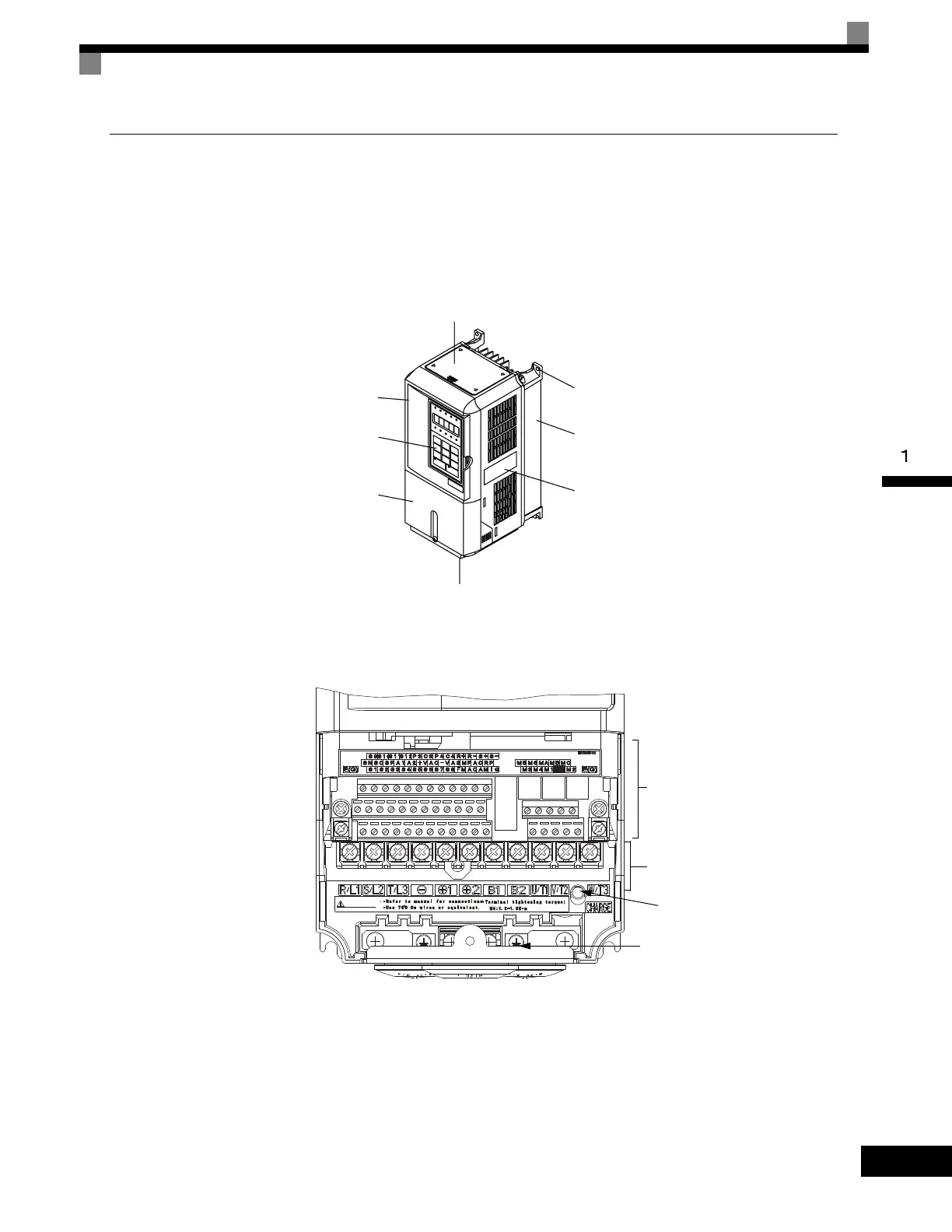

The external appearance and component names of the Drive are shown in Fig 1.4. The Drive with the terminal
cover removed is shown in Fig 1.5.
Fig 1.4 Drive Appearance
Fig 1.5 Terminal Arrangement
Top protective cover
[Required for NEMA Type 1 (IEC IP20)]
Front cover
Digital Operator
Terminal cover
Mounting hole
Nameplate
Bottom protective cover
Diecast case
NPJT31278-1-0NPJT31278-1-0
CAUTIONCAUTION
Charge indicator
Ground terminal
Control circuit terminals
Main circuit terminals
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

YASKAWA G7 Series Specifications

General

Series	G7
Frequency	50/60 Hz
Output Voltage	Matches Input Voltage
Control Method	V/f Control
Overload Capacity	150% for 60 seconds
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit
Communication	RS-485, Modbus, DeviceNet, Profibus, Ethernet
Safety	Safe Torque Off (STO)
Operating Temperature	-10°C to 50°C
Humidity	5% to 95% (non-condensing)
Cooling Method	Fan Cooled
Enclosure Rating	IP20
Storage Temperature	-20°C to 65°C
