6-156
Using Digital Output Cards
There are two types of Drive digital output cards:
• DO-02C
Relay contact output (DPDT contact)
• DO-08
6 photocoupler output channels (shared commons)
2 (independent) relay contact output channels (NC contact)

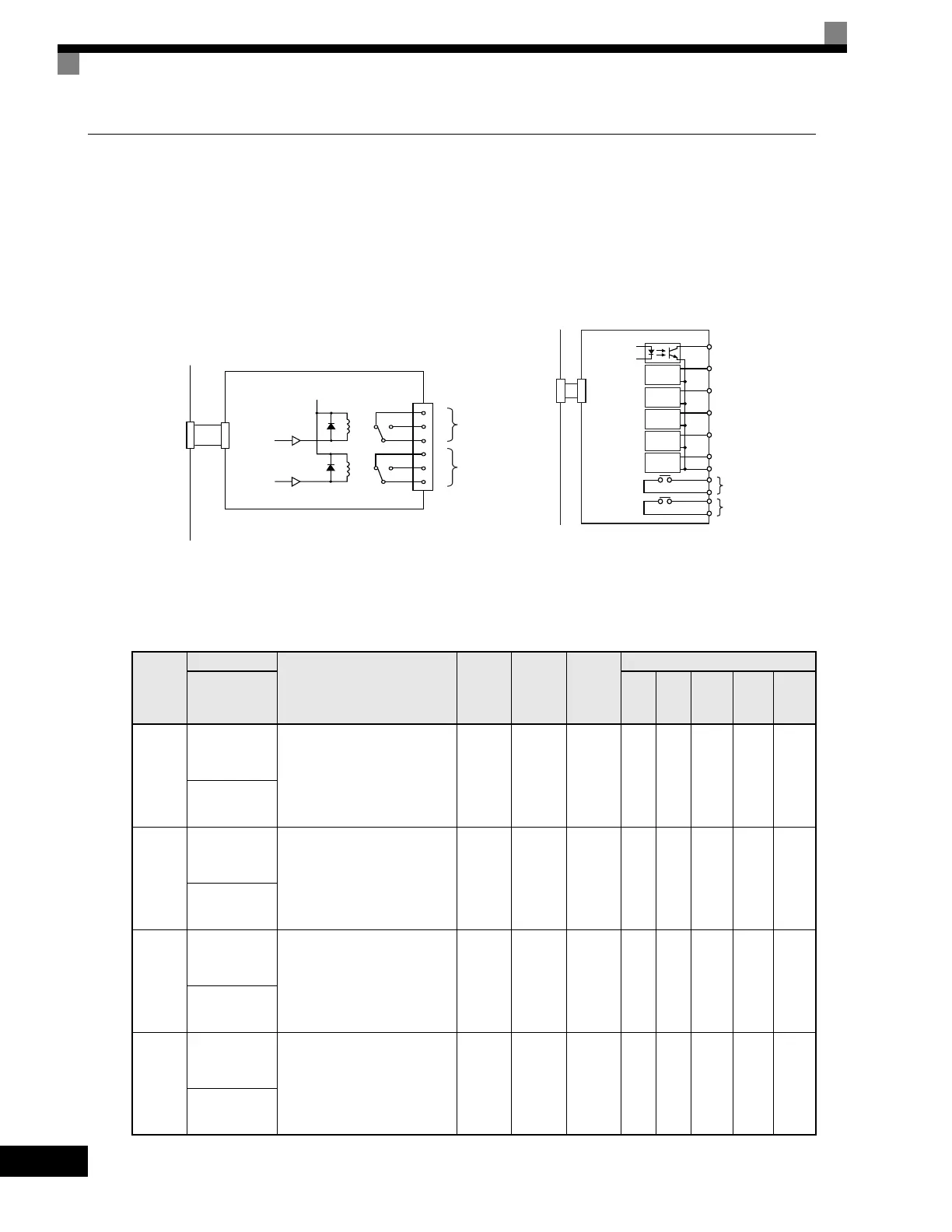

Fig 6.76 Digital Output Cards
Related Parameters
Parameter
Number
Name
Description
Setting
Range
Factory
Setting
Change
during
Operation
Control Methods
Display
V/f
V/f
with
PG
Open
Loop
Vector
1
Flux
Vector
Open
Loop
Vector
2
F5-01
DO-02/DO-08
Channel 1 Out-
put Selection
Sets the digital output function
number for channel 1. See the H2
parameter group for possible
selections.
Enabled when digital output card
DO-02 or DO-08 is used.
0 to 37 0 No A A A A A
DO Ch1 Select
F5-02
DO-02/DO-08
Channel 2 Out-
put Selection
Sets the digital output function
number for channel 2. See the H2
parameter group for possible
selections.
Enabled when digital output card
DO-02 or DO-08 is used.
0 to 37 1 No A A A A A
DO Ch2 Select
F5-03
DO-08 Channel
3 Output Selec-
tion
Sets the digital output function
number for channel 3. See the H2
parameter group for possible
selections.
Enabled when digital output card
DO-02 or DO-08 is used.
0 to 37 2 No A A A A A
DO Ch3 Select
F5-04
DO-08 Channel
4 Output Selec-
tion
Sets the digital output function
number for channel 4. See the H2
parameter group for possible
selections.
Enabled when digital output card
DO-02 or DO-08 is used.
0 to 37 4 No A A A A A
DO Ch4 Select
TD
NC
NC
NO
NO
1
2
3
4
5
6
CH1
CH2
Relay contact
+24 V
3CN
3CN
Inverter
control
panel
DO-02C Digital Output Card
Photocoupler
TD5
TD6
TD7
TD8
TD9
TD1
TD2
TD3
TD4
TD10
TD11
CH1
CH2
CH3
CH4
CH5
CH6
CH7
CH8
COM (0 V common)
Relay contact
DO-08 Digital Output Card
3CN3CN
Inverter
control
panel
Photocoupler
