YASKAWA G7 Series User Manual

2-4
Terminal Block Configuration

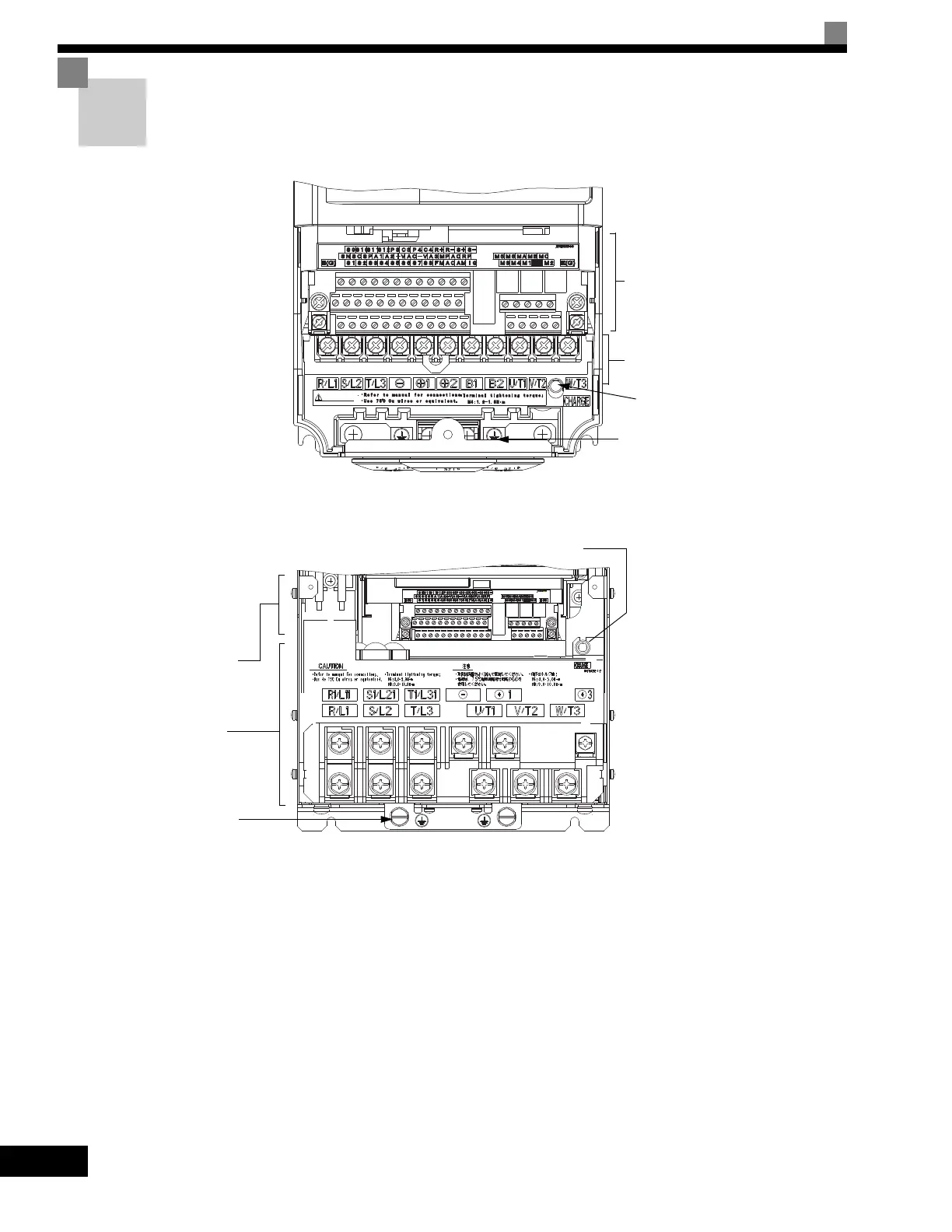

The terminal arrangement for 200-240 V Class Drives are shown in Fig 2.2 and Fig 2.3.
Fig 2.2 Terminal Arrangement (200-240 V Class Drive for 0.4 kW Shown Above)
Fig 2.3 Terminal Arrangement (200-240 V Class Drive for 18.5 kW Shown Above)
NPJT31278-1-0NPJT31278-1-0
CAUTIONCAUTION
Charge indicator
Ground terminal
Control circuit terminals
Main circuit terminals
Terminal Arrangement(18.5kW or More)
Charge indicator
Control circuit
terminals
Main circuit
terminals
Ground terminal
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

YASKAWA G7 Series Specifications

General

Series	G7
Frequency	50/60 Hz
Output Voltage	Matches Input Voltage
Control Method	V/f Control
Overload Capacity	150% for 60 seconds
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit
Communication	RS-485, Modbus, DeviceNet, Profibus, Ethernet
Safety	Safe Torque Off (STO)
Operating Temperature	-10°C to 50°C
Humidity	5% to 95% (non-condensing)
Cooling Method	Fan Cooled
Enclosure Rating	IP20
Storage Temperature	-20°C to 65°C
