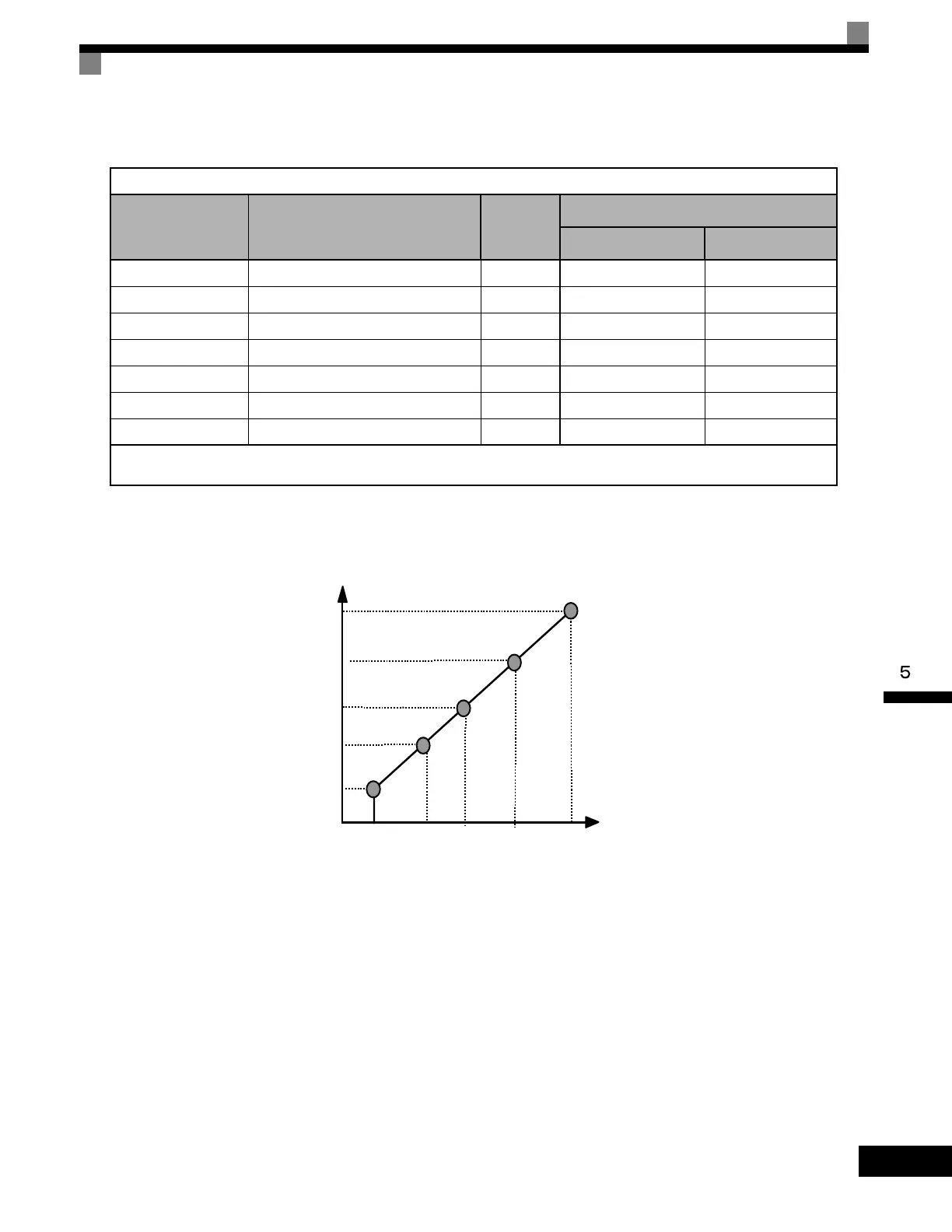

Table 5.6 lists the factory settings of V/F patterns when open loop vector or flux vector control method is selected
(A1-02 = 2 or 3).
Fig 5.9 V/F Pattern Parameters
Parameters E1-07, E1-08, E1-10, E1-11, and E1-12 are accessible through the Programming Menu.
To set up a custom V/F pattern, program the points shown in the diagram below using parameters E1-04 through
E1-13. Be sure that the following condition is true: E1-09 ≤ Ε1−07 < Ε1−06 ≤ Ε1−11 ≤ Ε1−04
Table 5.6 V/F Pattern for 208-240V Class Drives
Parameter No. Name Unit
Factory Setting
Open Loop Vector Flux Vector
E1-04 Max. Output Frequency Hz 60.0 60.0
E1-05 Max. Output Voltage V 230.0 230.0
E1-06 Base Frequency Hz 60.0 60.0
E1-07 Mid. Output Frequency V 3.0 0.0
E1-08 Mid. Output Voltage V 12.6 0.0
E1-09 Min. Output Frequency Hz 0.5 0.0
E1-10 Min. Output Voltage V 2.3 0.0
1. The setting shown are for 208-240Vac Drives. The values will double for 380-480Vac Drives.
2. These default values are for open loop vector or flux vector control methods (A1-02 = 2 or 3)
Frequency
Voltage
E1-09 E1-07
E1-06
E1-04
E1-11
Max Voltage E1-05
Mid Voltage B E1-12
Mid Voltage A E1-08
Base Voltage E1-13
Min Voltage E1-10
Min
Freq
Max
Fre
