YASKAWA G7 Series User Manual

Maintenance and Inspection
8-5
200-240 V and 380-480 V Class Drives of 18.5 kW or More
A cooling fan is attached to the top panel inside the Drive.
The cooling fan can be replaced without removing the Drive from the installation panel.
Removing the Cooling Fan
1. Remove the terminal cover, Drive cover, Digital Operator, and front cover from the front of the Drive.
2. Remove the controller bracket to which the cards are mounted. Remove all cables connected to the con-
troller.
3. Remove the cooling fan power cable connector (CN26 and CN27) from the gate driver positioned at the
back of the controller.
4. Remove the fan cover screws and pull out the fan cover from the Drive.
5. Remove the cooling fan from the fan cover.
Mounting the Cooling Fan
After attaching a new cooling fan, reverse the above procedure to attach all of the components.
When attaching the cooling fan to the mounting bracket, be sure that the air flow faces the top of the Drive.

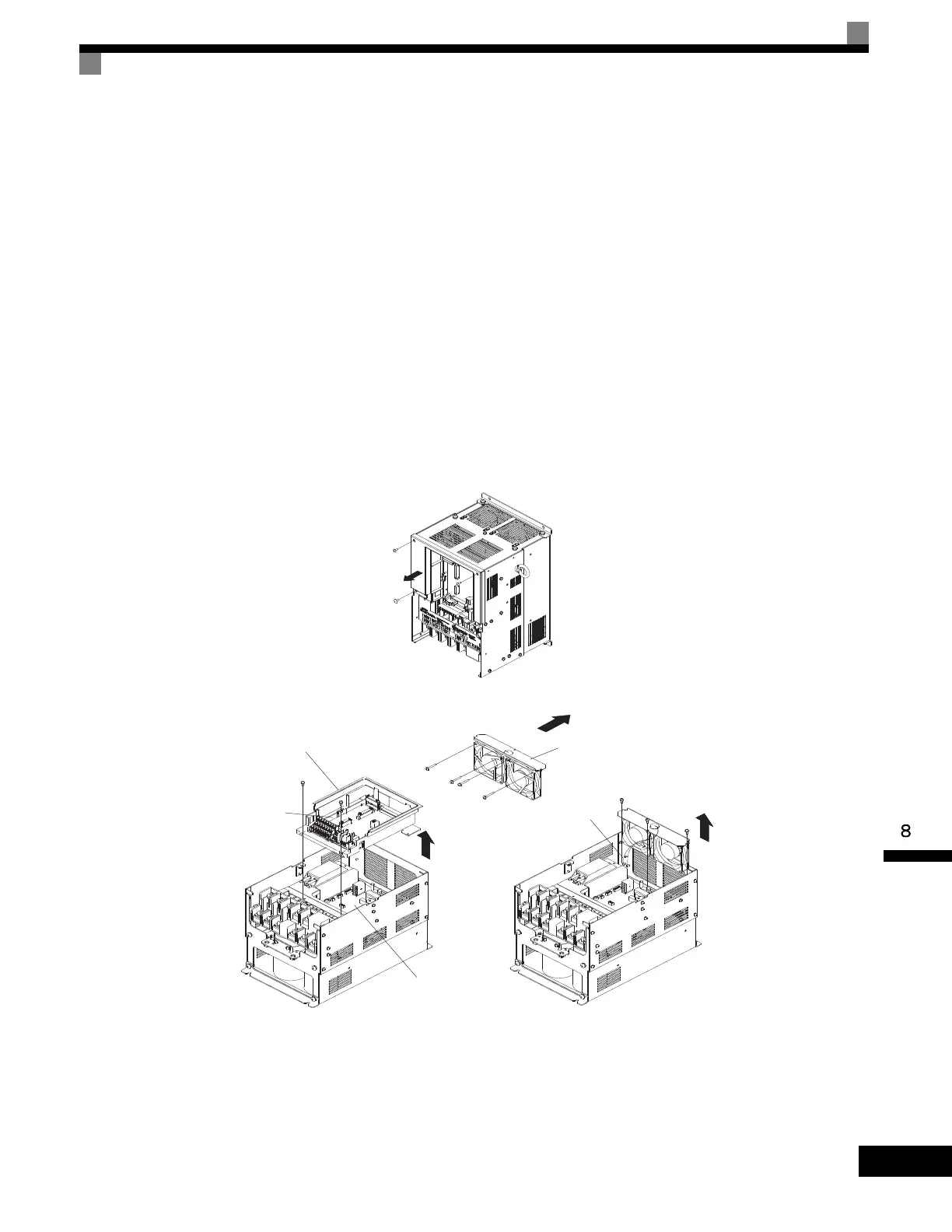

Fig 8.2 Cooling Fan Replacement (Drives of 18.5 kW or More)
Controller bracket
Controller
Gate driver
Fan cover
Connector
Air flow direction
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

YASKAWA G7 Series Specifications

General

Series	G7
Frequency	50/60 Hz
Output Voltage	Matches Input Voltage
Control Method	V/f Control
Overload Capacity	150% for 60 seconds
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit
Communication	RS-485, Modbus, DeviceNet, Profibus, Ethernet
Safety	Safe Torque Off (STO)
Operating Temperature	-10°C to 50°C
Humidity	5% to 95% (non-condensing)
Cooling Method	Fan Cooled
Enclosure Rating	IP20
Storage Temperature	-20°C to 65°C
