YASKAWA G7 Series User Manual

2-28
 Sinking/Sourcing Mode
The multi-function input terminal logic can be switched between sinking mode (0 Vdc common) and sourcing
mode (+24 Vdc common) by using the terminals SN, SC, and SP. An external 24 Vdc power supply is also sup-
ported, providing more freedom in signal input methods.

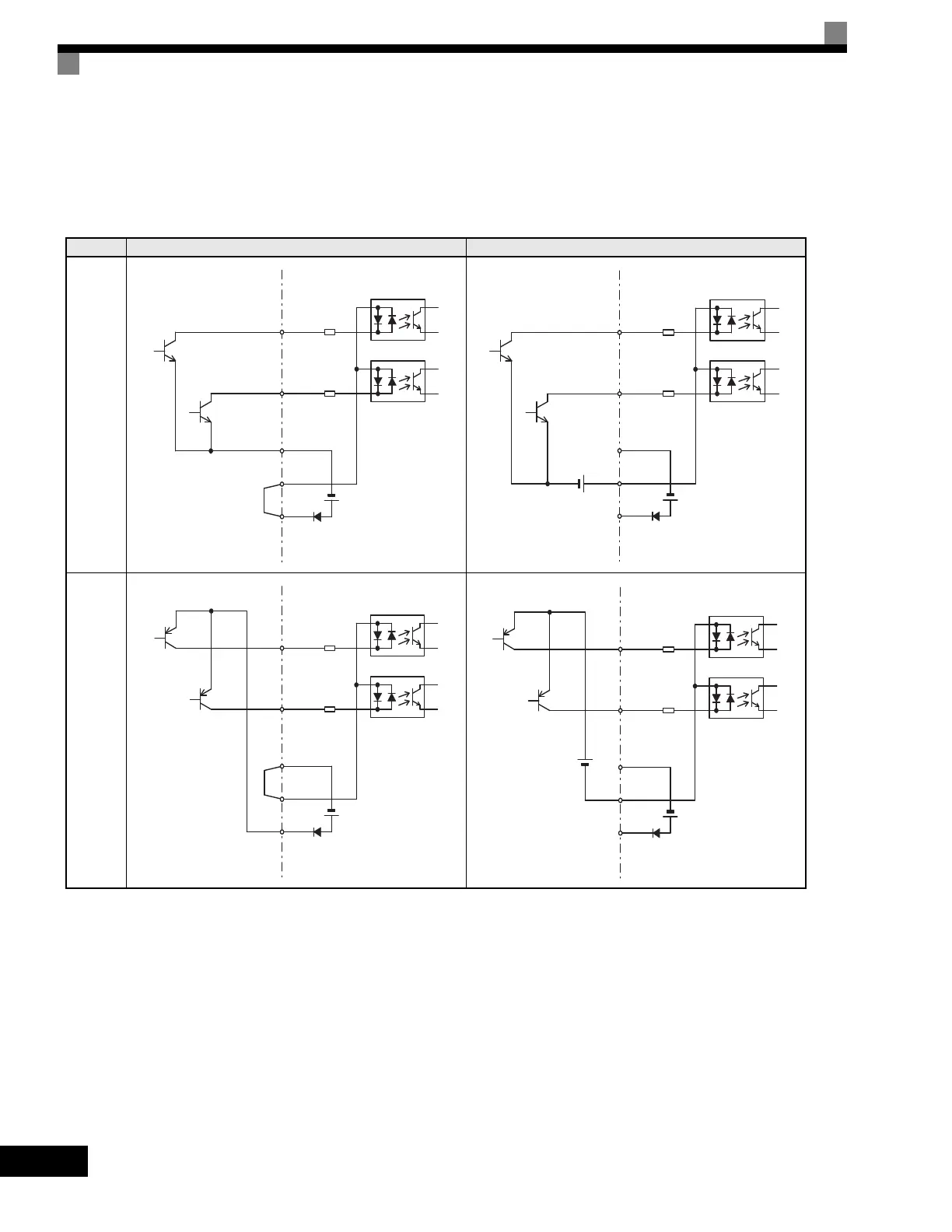

Table 2.13 Sinking/Sourcing Mode and Input Signals
Internal Power Supply External Power Supply
Sinking
Mode
Sourcing
Mode
IP24V(+24V)
SN
SC
SP
S1
S2
IP24V(+24V)
SN
SC
SP
S1
S2
External +24V
IP24V(+24V)
SN
SC
SP
S1
S2
IP24V(+24V)
SN
SC
SP
S1
S2
External +24V
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

YASKAWA G7 Series Specifications

General

Series	G7
Frequency	50/60 Hz
Output Voltage	Matches Input Voltage
Control Method	V/f Control
Overload Capacity	150% for 60 seconds
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit
Communication	RS-485, Modbus, DeviceNet, Profibus, Ethernet
Safety	Safe Torque Off (STO)
Operating Temperature	-10°C to 50°C
Humidity	5% to 95% (non-condensing)
Cooling Method	Fan Cooled
Enclosure Rating	IP20
Storage Temperature	-20°C to 65°C
