2.3 b: Application
224 YASKAWA TOEPYAIGA8002B GA800 Drive Programming
Use Table 2.27 to select how the second feedback value is input to the drive. The drive calculates the deviation of
the second feedback value. Set H3-02, H3-06, or H3-10 = 16 [Terminal A1/A3/A2 Function Selection = Differential
PID Feedback] to enable the second feedback signal used to calculated the deviation.
Table 2.27 PID Differential Feedback Input Method
PID Differential Feedback Input Method Setting Value
Multi-function analog input terminal A1 Set H3-02 = 16 [Differential PID Feedback].
Multi-function analog input terminal A2 Set H3-10 = 16.
Multi-function analog input terminal A3 Set H3-06 = 16.
Note:
If you set more than one of H3-02, H3-06, and H3-10 to 16, the drive will detect oPE07 [Analog Input Selection Error].
■ PID Control Block Diagram

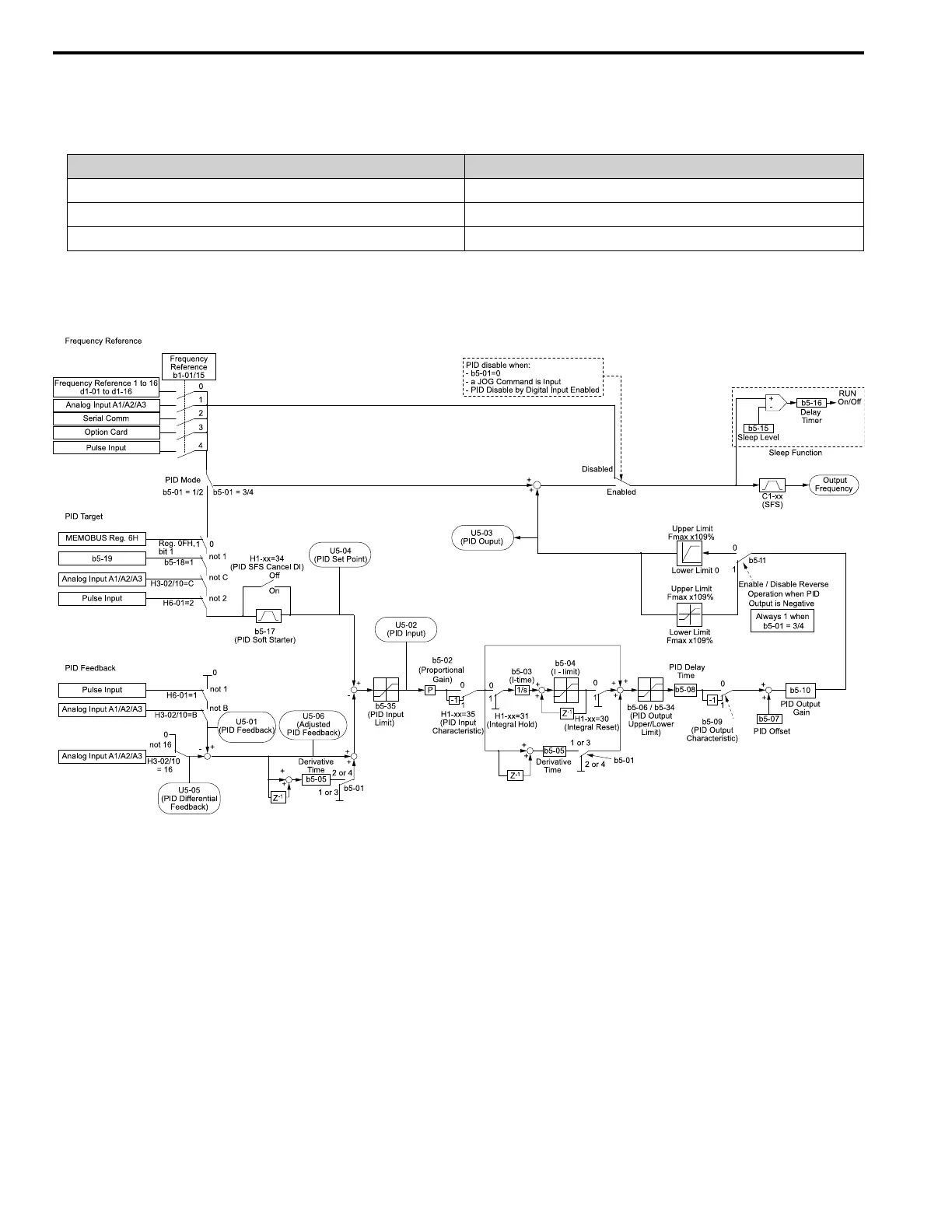

Figure 2.35 PID Block Diagram
■ PID Feedback Loss Detection
The PID feedback loss detection function detects broken sensors and defective wiring between the drive and sensors.
Use the PID feedback loss detection function when you use PID control. If the feedback signal is too low, the motor
can suddenly accelerate to the maximum output frequency. This function prevents such risks to the load.
The drive uses two methods to detect feedback loss:
• PID Feedback Loss [FbL]
Set these parameters for the PID feedback loss detection function.
The drive detects feedback loss when the feedback value is less than the value in b5-13 for longer than the time in
b5-14.
– b5-12 [Feedback Loss Detection Select]
– b5-13 [PID Feedback Loss Detection Lvl]
– b5-14 [PID Feedback Loss Detection Time]
