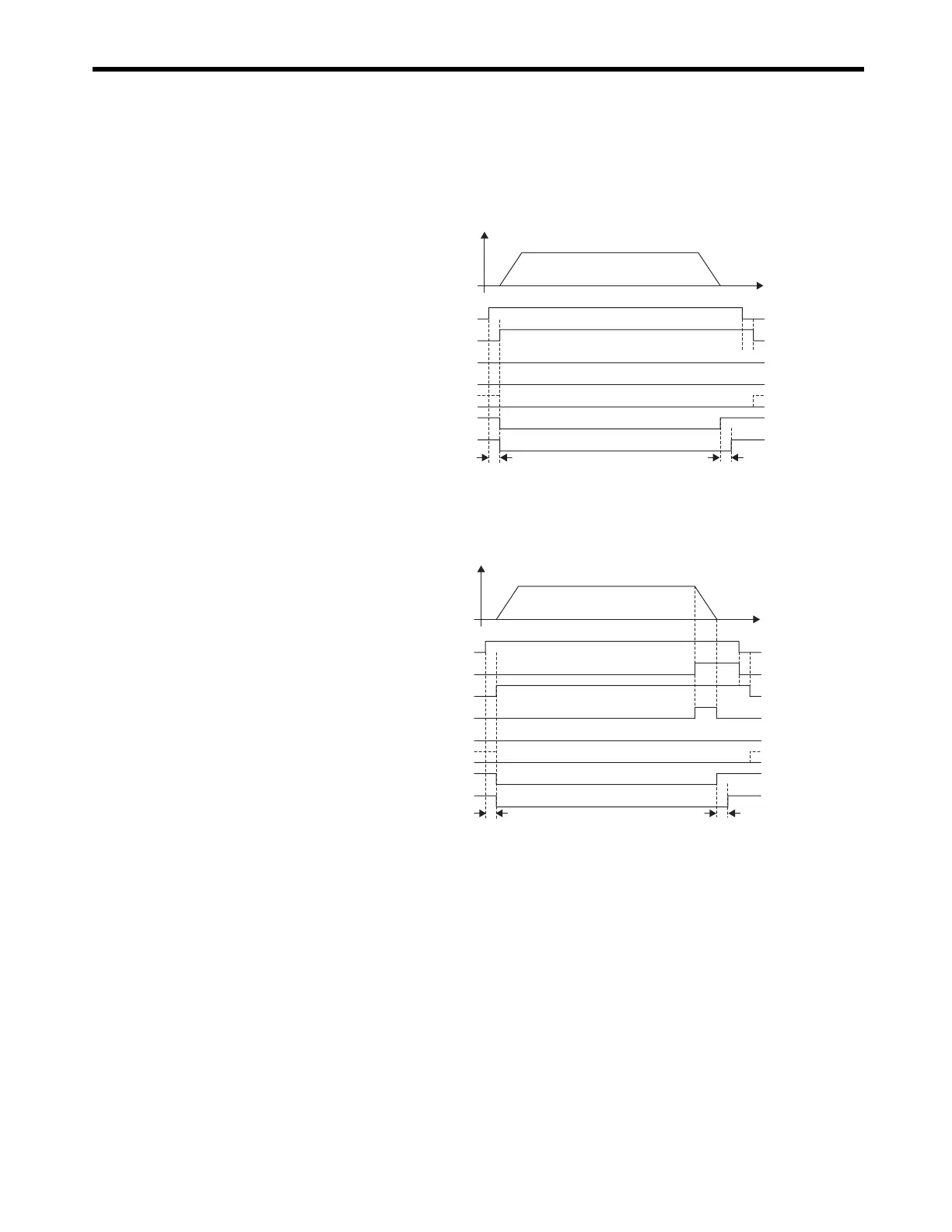

( 5 ) Timing Charts
[ a ] Normal Execution
[ b ] Execution when Aborted
OW08 = 1 (POSING)
IW08 = 1 (POSING)
IB090 (BUSY)
Undefined length of time
IB098 (COMPLETE)
IB093 (FAIL)
IB0C0 (DEN)
IB0C1 (POSCOMP)
1 scan
Undefined length of time
1 scan
OB091 (ABORT)
OW08 = 1 (POSING)
IW08 = 1 (POSING)
IB090 (BUSY)
IB098 (COMPLETE)
IB093 (FAIL)
IB0C0 (DEN)
IB0C1 (POSCOMP)
