3
Motion Module Setup
3.1.3
Module Configuration Definitions
3-24
■

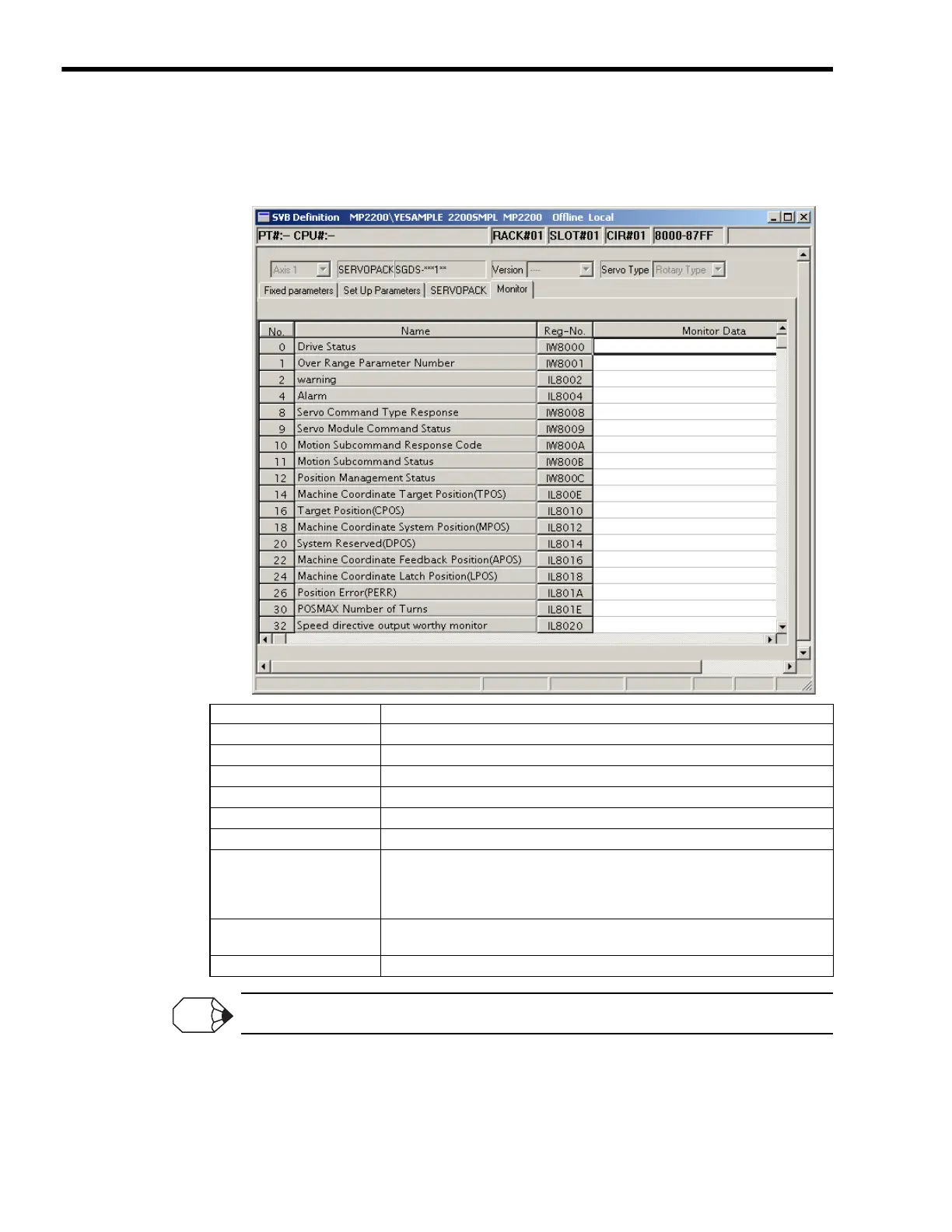

Monitor Tab Page
The Monitor Tab Page displays the current values of the motion parameters. The parameters are only
displayed in the Monitor Tab Page; the settings cannot be changed here.
Refer to 4.3.3 Motion Monitoring Parameter Details for details on monitoring parameter settings.
Setting Details
Axis Number
Select the desired axis number. The parameters for each axis are displayed.
SERVOPACK
Displays the type of SERVOPACK.
Version
Displays the version of SERVOPACK.
Servo Type (Motor Type)
Displays the motor type.
No.
Displays the parameter number of the motion monitoring parameter.
Name (Parameter Name)
Displays the parameter name.
Reg-No.
Displays the number of the register that corresponds to the parameter name. The
range of registers depends on the circuit number and axis number currently being
displayed, as shown in 4.1.1 Motion Parameter Register Numbers for the SVB-01
Module.
Monitor Data
In online mode, the current values of the parameters are displayed. In offline mode,
nothing will be displayed.
Unit
Displays the units of the corresponding parameter.
