YASKAWA NX100 Instruction Manual

Fieldbus PCI-Card
Card
No: Indication State
Meaning
3 Master status
Green Operate Mode
Green, flashing Clear Mode
Red Stop Mode
Off Offline
4 Token hold
Green Master has the token
Off Master does not have the token
5 Database Status
Green Database OK
Green, flashing Database download in progress
Red Database invalid
Off No database downloaded
6 Communication status
Green Data exchange with all configured
slaves
Green, flashing Data exchange with at least one
configured slave
Red Bus control error (Possible short
circuit or configuration error)
Off No data exchange with any off the
configurated slaves
Fieldbus interface
A B

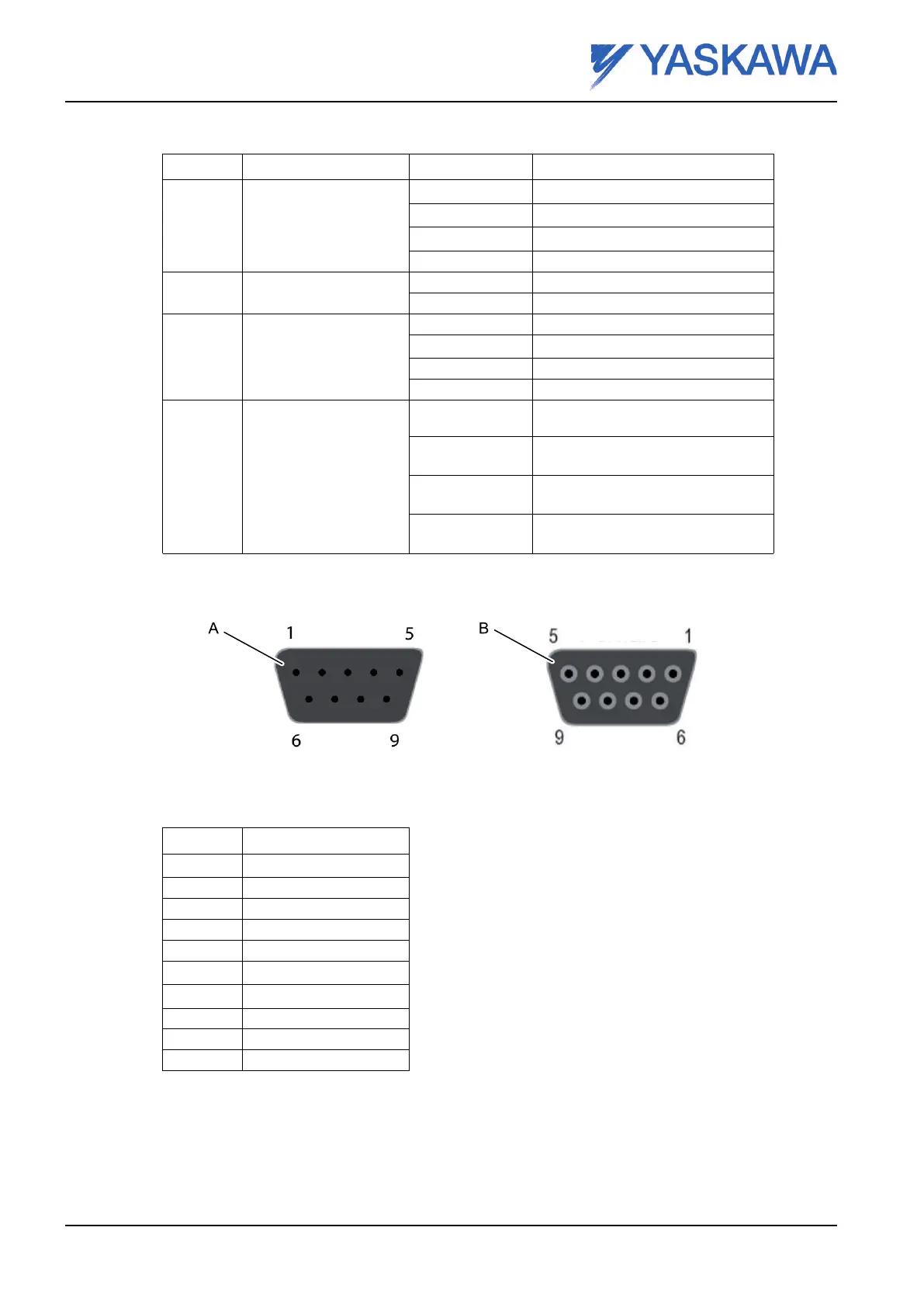

Fig. 21 D-sub layout
A. D-sub, male layout B. D-sub, female layout
Pin
Signal
Housing
Cable shield
1
-
2
-
3 B-Line
4 RTS
5
GND_BUS
6 +5V BUS (output)
7
-
8 A-Line
9
-
Page 30 Reg.No. ME00107EN-02

YASKAWA NX100 Specifications

General

Manufacturer	YASKAWA
Model	NX100
Operating Temperature	0 to 45°C
Humidity	20 to 80% RH (non-condensing)
Communication Interfaces	Ethernet
Safety Standards	ISO 10218-1
Power Supply	200-230V AC, 50/60Hz
Storage Temperature	60°C
