FL-Net Interface Details
13 FL-Net AB3610
13.1 FL-Net Interface Details
• Complete FL-Net server functionality
• Support shielded (STP) and unshielded (UTP) cables
• FL-Net class 1 node
• Customizable identity/profile information
• Up to 255 bytes input and 255 bytes output data
• Dual Port (DPRAM) parallel interface
• Transformer isolated Ethernet interface
13.2 Card
Caution
The card contains ESD sensitive components. Observe ESD precautions when handling the
card.

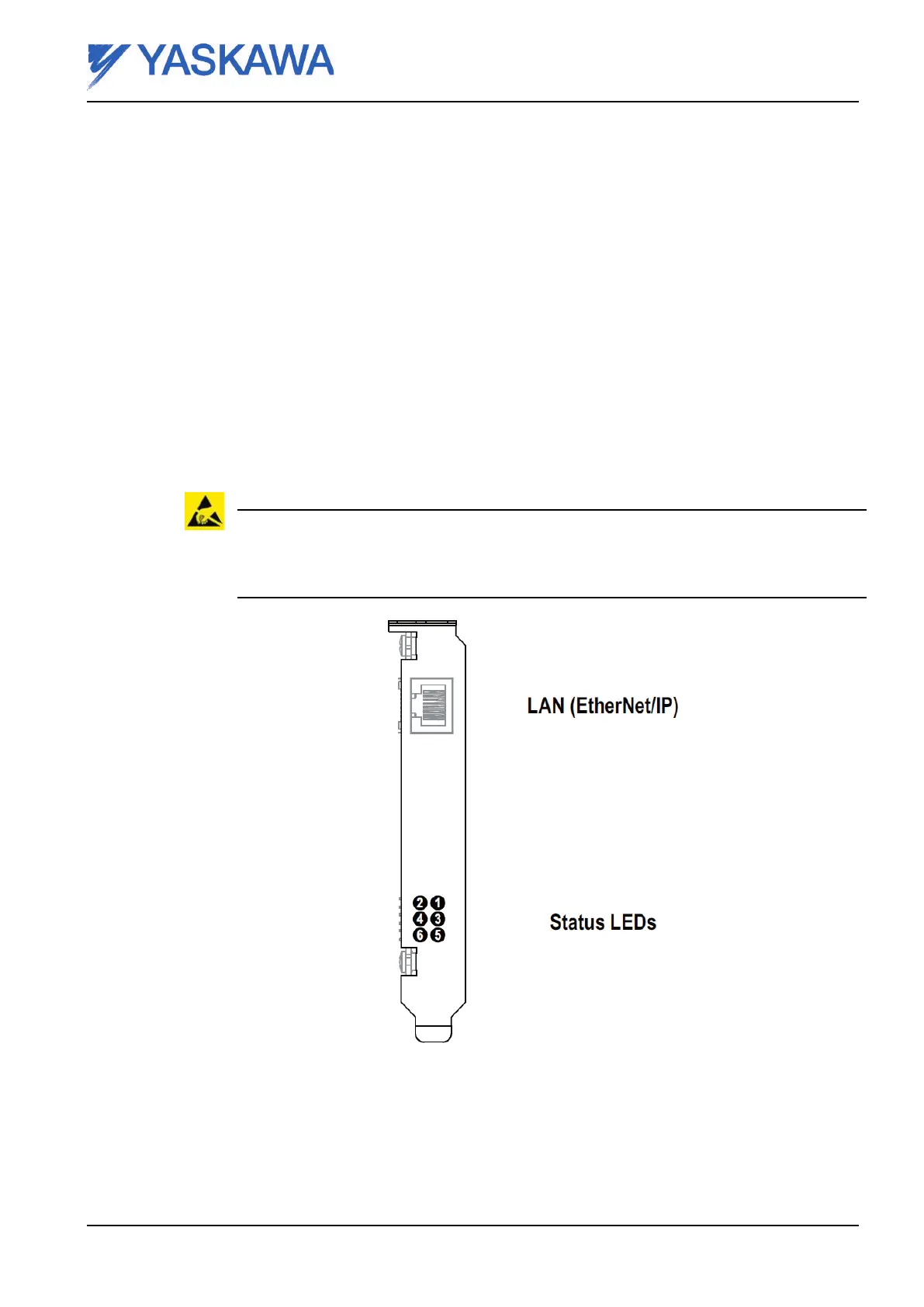

Fig. 52 EtherNet/ProfiNet/FL-Net card
Reg.No. ME00107EN-02 Page 61
