Fieldbus PCI-Card
Hardware installation
2.2.1 NX100 Installation
A
B

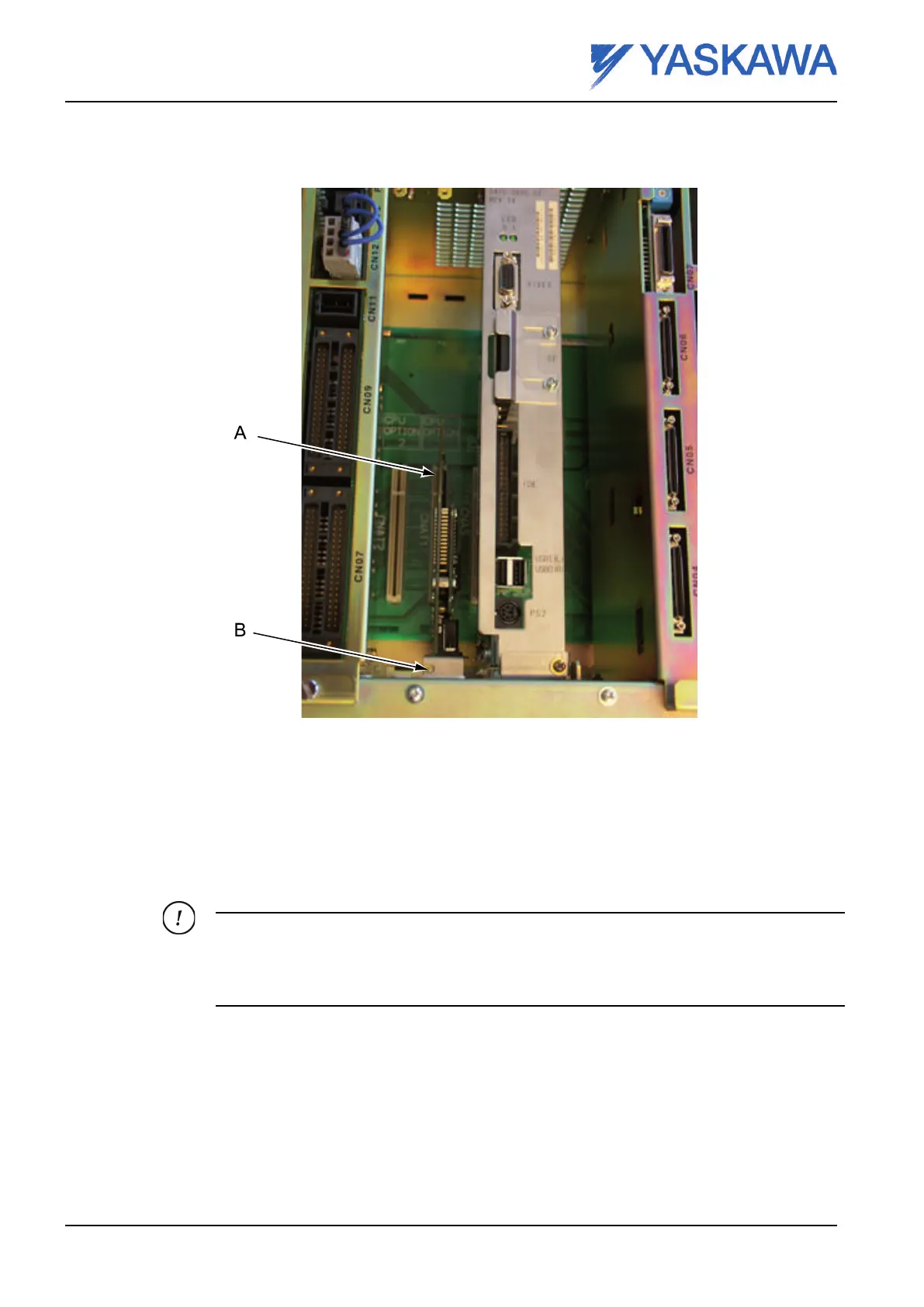

Fig. 2 PCI-card installation
A. PCI card B. Hole for securing screw
1. Unplug AC power and remove system cover.
2. If present, remove the bracket opposite the PCI slot.
3. Align the card connector with the slot and press firmly until the card is completely seated.
4. Secure the card connector to the chassis using a screw.
Note
To ensure trouble-free operation, the front plate of the card must be screwed together with the
system cover. The system cover must also be grounded in compliance with local regulations.
5. Re-attach the system cover and AC power
2.2.2 DX100/DX200 Installation
1. Remove the installation frame from the CPU rack by loosen the four screws, see Fig. 3 Remove
installation frame.
Page 12 Reg.No. ME00107EN-02
