Fieldbus PCI-Card
14.2.1 Status LEDs
No: Indication State
Meaning
1
Appl. connected
Green Controlled by application
Red Standalone
2 I/O ACCESS
Green, flashing I/O access OK
Red, flashing I/O access failure (recoverable)
Off No activity
3 Run
Off Device not powered or major failure
(no communication)
Green Normal operation (Device powered
up and operating)
4 COM
Off No bus activity
Green, flashing Bus activity
5 Err
Off Not powered or device operating
normally
Red, flashing Bus not connected or promptness
timeout
Red Major unrecoverable fault
6 I/O
Off Device operating normally
Red External device error
Fieldbus interface

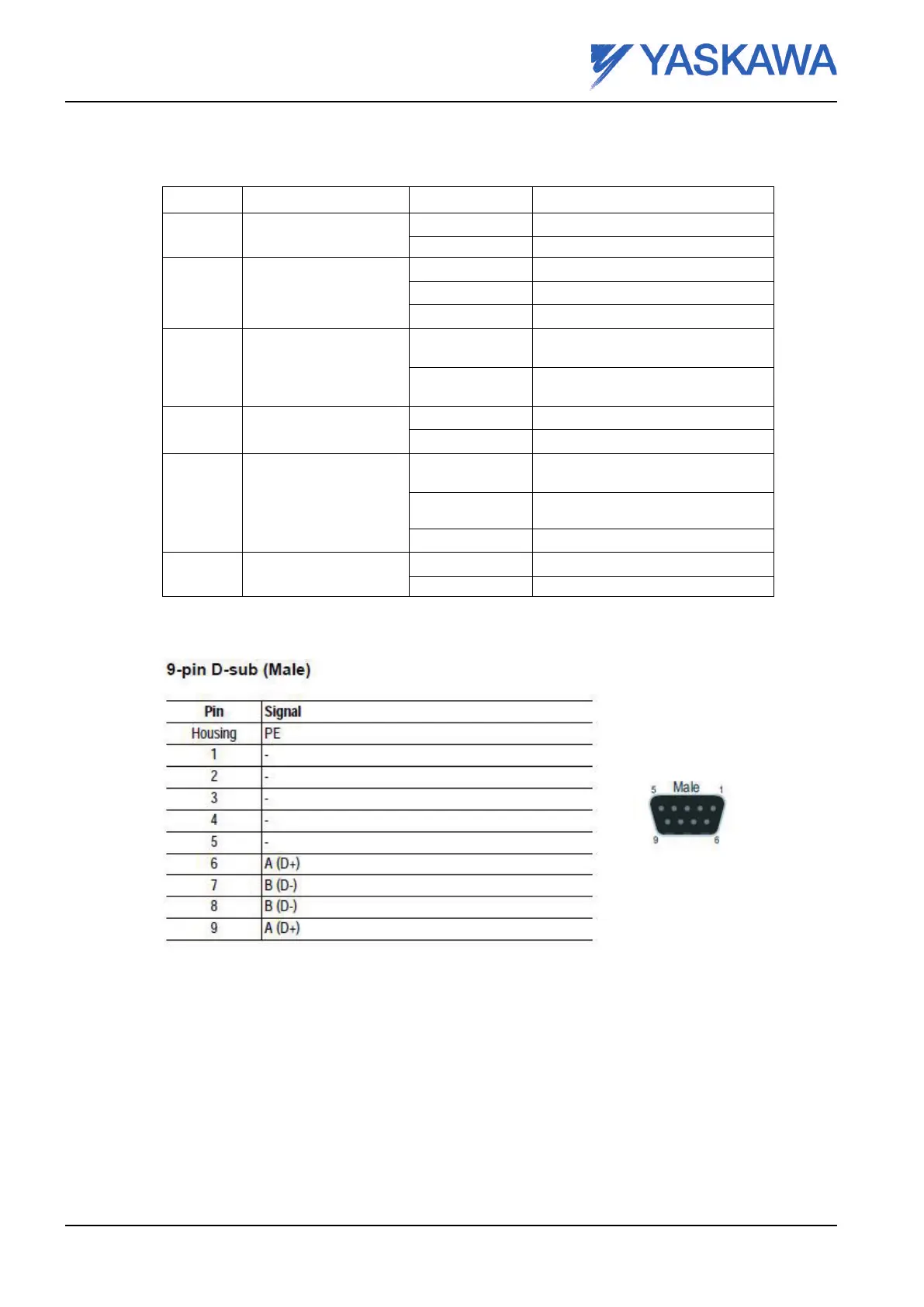

Fig. 55 9-pin D-sub male layout
14.3 Setup
Node address setting can be in the range: 1-62 and 64-255.
Node address restrictions:
• Node address 0 is reserved for the fieldbus control system (e.g. the PLC)
• Node address 63 is reserved for configuration and diagnostic terminals
• Addresses 1 - 62 are used for connecting industrial peripheral devices to FIPIO. These devices
Page 64 Reg.No. ME00107EN-02
