Fieldbus PCI-Card
No: Indication State
Meaning
5 Network status
Off No power or not online
Green Link OK, online, connected
Green, flashing Online not connected
Red Critical link failure
Red, flashing Connection timeout
6 Module status
Off No power to device
Green Device operational
Green, flashing Data size greater than configured
Red Unrecoverable fault
Red, flashing Minor fault
7.2.2 Connectors
Application interface
The module is available in both serial and parallel versions.
Fieldbus interface

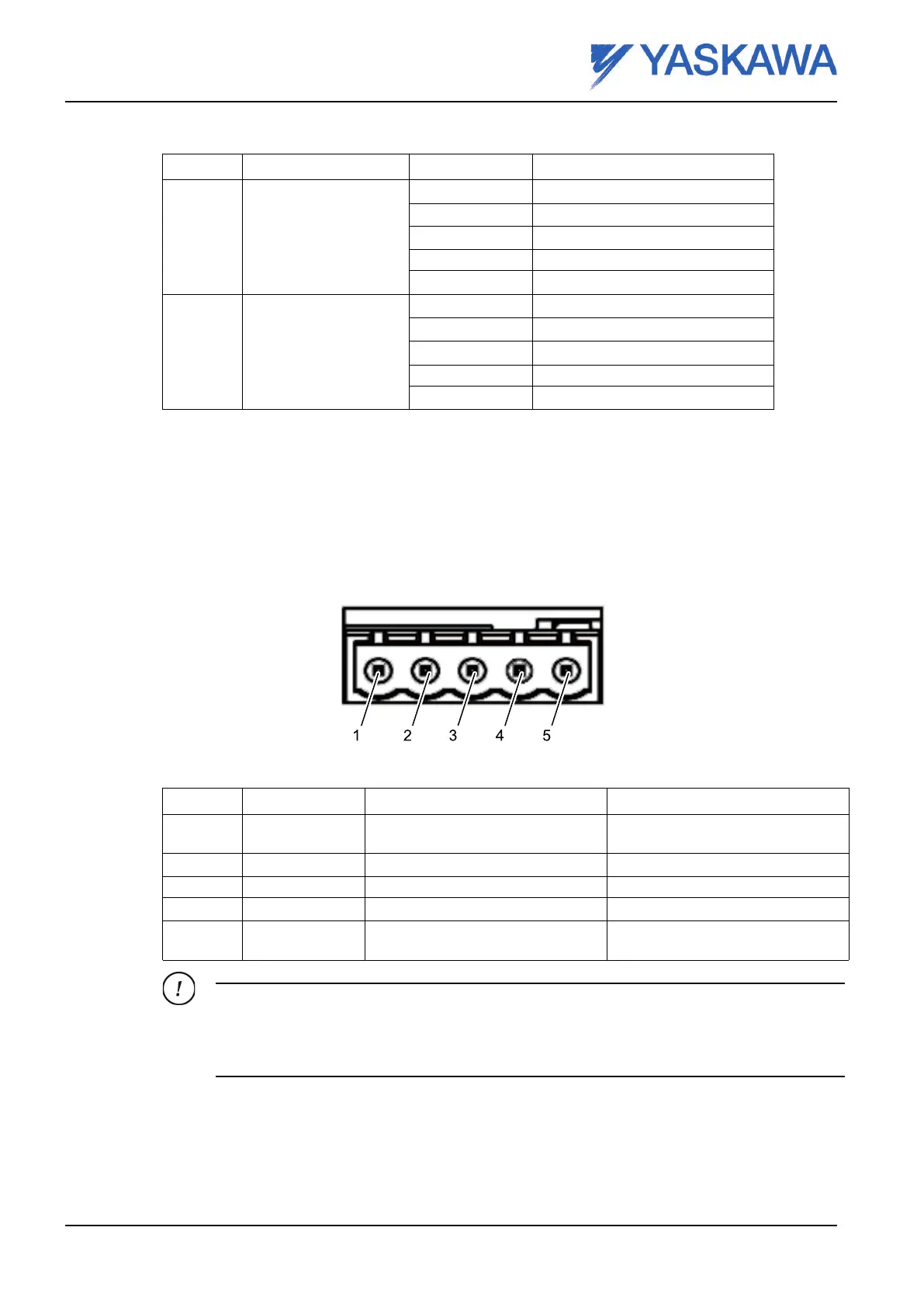

Fig. 23 Male Connector DeviceNet
No:
Signal
Decription
Note
1
V- Negative supply voltage The module requires 24VDC bus
power
2
CAN_L CAN_L bus line
3 shield Cable shield
4
CAN_H CAN_H bus line
5
V+ Positive supply voltage The module requires 24VDC bus
power
The layout in Fig. 23 Male Connector DeviceNet is for a male connector. Female connectors
are in the opposite order.
7.3 DeviceNet network setup
For a complete network setup See 8.3 DeviceNet network setup. Each slave device in a DeviceNet
network is associated with an EDS-file which has to be downloaded to the network.
Page 34 Reg.No. ME00107EN-02
